New Holland Construction
/
(FD14E) - CRAWLER DOZER
/

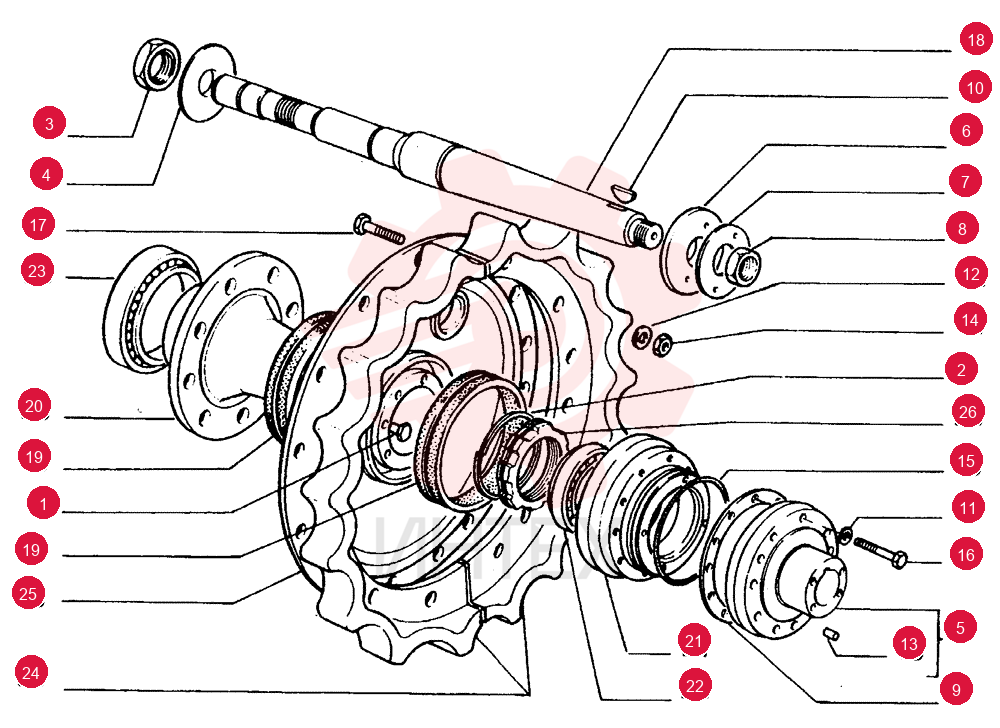

RETAINER 586743

RETAINER 586743

RETAINER 586743

1 586743

  • 586743 - RETAINER

2 586780

  • 586780 - RING

3 586931

  • 586931 - NUT

4 586932

  • 586932 - LOCKING PLATE

5 594320

  • 594320 - SUPPORT

6 594322

  • 594322 - THRUST PLATE

7 594323

  • 594323 - WASHER

8 594325

  • 594325 - NUT

9 594326

  • 594326 - HOUSING

10 594327

  • 594327 -

11 594328

  • 594328 - SHIM
  • 1mm Thk

12 594329

  • 594329 - SHIM
  • 1.2mm Thk

13 594330

  • 594330 - SHIM
  • 1.4mm Thk

14 594331

  • 594331 - SHIM
  • 1.5mm Thk

15 10206610

  • 10206610 - KEY

16 14496731

  • 14496731 - WASHER
  • M12 x 24 x 2.5 Thk

17 14497231

  • 14497231 - WASHER

18 10837710

  • 10837710 - DOWEL
  • M10 x 25

19 12164421

  • 12164421 - NUT
  • M22 x 1.5
  • Cl 10

20 14468580

  • 14468580 - O-RING
  • 0.139" Thk x 8.234" ID
  • -267
  • Cl 5
  • 75 Duro

21 15541134

  • 15541134 - BOLT
  • Hex
  • M12 x 1.25 x 65mm
  • Cl 10.9

22 15992734

  • 15992734 - SCREW

23 79031688

  • 79031688 - STABILIZER BAR

24 76003048

  • 76003048 - BRAKE LINING

25 76003051

  • 76003051 - SEAL

26 76007395

  • 76007395 - SEAL

27 79031520

  • 79031520 - HUB

28 79031756

  • 79031756 - BOX

29 79031757

  • 79031757 - TAPERED ROLLER BEARING
  • 110mm ID x 170mm OD x 38mm W

30 79031758

  • 79031758 - TAPERED ROLLER BEARING
  • 169.97mm ID x 239.97mm OD x mm W

31 79031759

  • 79031759 - DRIVING SPROCKET

32 79031760

  • 79031760 - HUB

33 79031761

  • 79031761 - RING NUT
