New Holland Construction
/
(FD14E) - CRAWLER DOZER
/

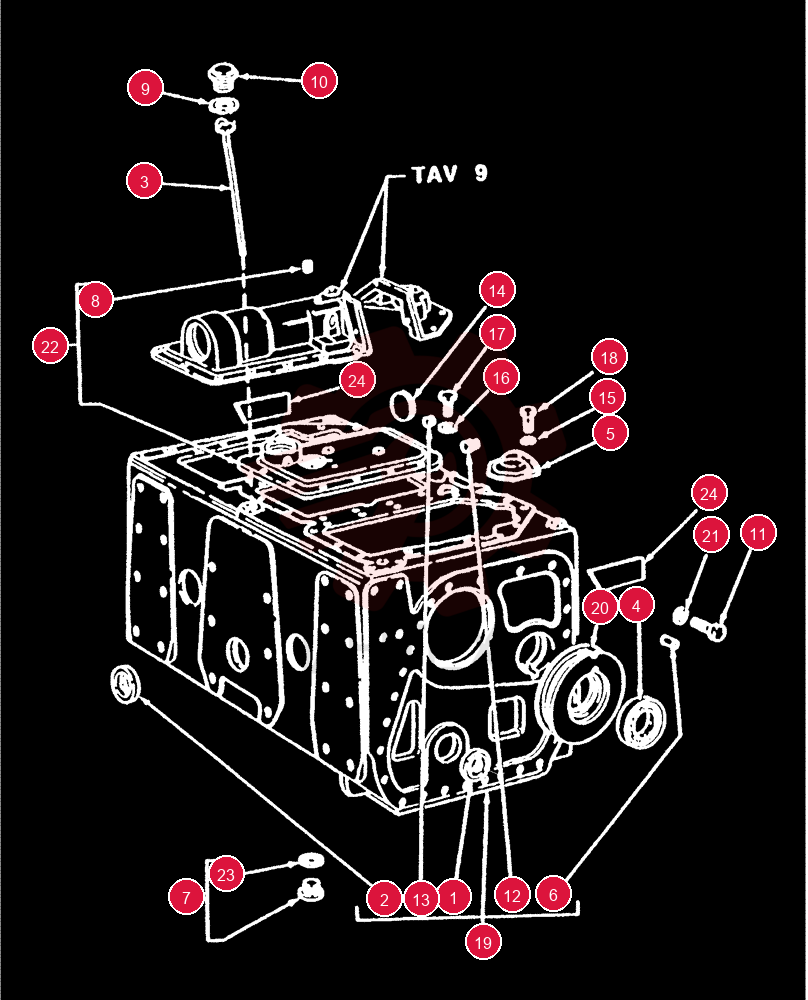

PLUG 586719 (2)

PLUG 586719 (2)

PLUG 586719 (2)

1 586719

  • 586719 - PLUG

2 586720

  • 586720 - PLUG

3 587045

  • 587045 - DIPSTICK

4 590851

  • 590851 - SEAL
  • 100mm ID x 130mm OD x 12mm Thk

5 4962648

  • 4962648 - COVER

6 4968762

  • 4968762 - DOWEL

7 10119040

  • 10119040 - PLUG
  • M27 x 2 x 20
  • Brass

8 10269750

  • 10269750 - PLUG

9 10297085

  • 10297085 - GASKET
  • 2mm Thk

10 10306371

  • 10306371 - PLUG

11 14238034

  • 14238034 - SCREW
  • Hex
  • M8 x 20mm
  • Cl 10.9

12 14323611

  • 14323611 - PLUG

13 14324801

  • 14324801 - PLUG

14 14330104

  • 14330104 - PLUG
  • M38
  • Tapered

15 14496631

  • 14496631 - WASHER
  • 10.5mm ID x 21mm OD x 2mm Thk

16 14496731

  • 14496731 - WASHER
  • M12 x 24 x 2.5 Thk

17 15540531

  • 15540531 - SCREW
  • Hex
  • M12 x 1.25 x 35mm
  • Cl 10.9
  • Full Thd

18 15970731

  • 15970731 - BOLT
  • Hex
  • M10 x 1.25 x 25mm
  • Cl 10.9
  • Full Thd

19 79087362

  • 79087362 - BOX

20 76007926

  • 76007926 - BEARING HOUSING

21 79050904

  • 79050904 - WASHER

22 79087779

  • 79087779 - COVER

23 73156850

  • 73156850 - PLATE

24 14438185

  • 14438185 - O-RING
  • 24mm ID x 3mm
