New Holland Construction
/
(FD14E) - CRAWLER DOZER
/

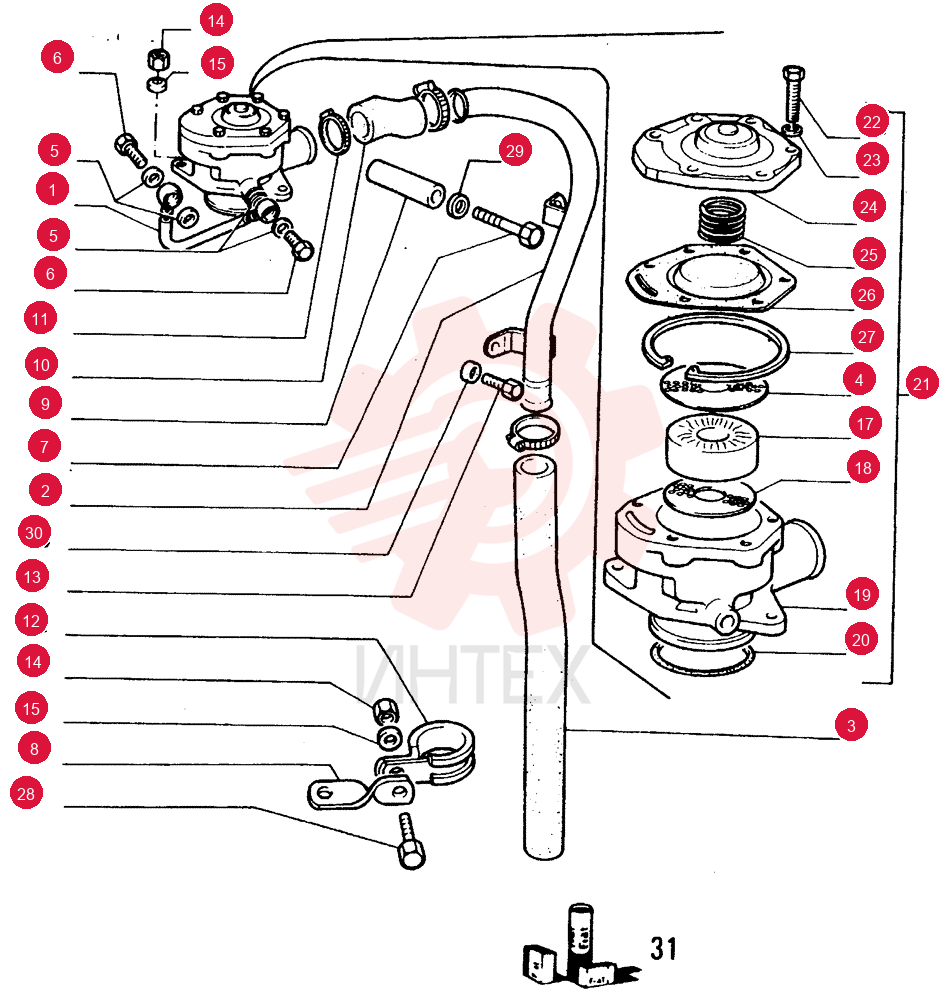

PIPE 4804762

PIPE 4804762

PIPE 4804762

1 4804762

  • 4804762 - PIPE

2 4804290

  • 4804290 - RIGID TUBE

3 4804763

  • 4804763 - FLEXIBLE HOSE

4 4771080

  • 4771080 - BASE PLATE

5 10298360

  • 10298360 - SEALING WASHER
  • M10.2 x 16 x 1
  • Copper

6 4806154

  • 4806154 - BANJO BOLT

7 15971324

  • 15971324 - SCREW
  • Hex
  • M10 x 1.25 x 75mm
  • Cl 8.8

8 4795309

  • 4795309 - BRACKET

9 8541600

  • 8541600 - SPACER

10 12084385

  • 12084385 - HOSE

11 12174090

  • 12174090 - HOSE CLIP

12 4628548

  • 4628548 - HOSE CLIP

13 16100811

  • 16100811 - NUT
  • Hex
  • M8
  • 6.80mm
  • Cl 8
  • ZND

14 11193879

  • 11193879 - BELLEVILLE WASHER
  • Belleville
  • M8.4

15 4771079

  • 4771079 - AIR FILTER

16 4771081

  • 4771081 - BASE PLATE

17 4774692

  • 4774692 - BOX

18 14464281

  • 14464281 - O-RING
  • 1.734" ID x 0.139" Width

19 4816603

  • 4816603 - BREATHER

20 10902811

  • 10902811 - BOLT
  • M6 x 30
  • 5.8

21 10519401

  • 10519401 - WASHER
  • 6.4mm ID x 11.95mm OD x 1.6mm Thk

22 4771075

  • 4771075 - COVER

23 4812557

  • 4812557 - SPRING

24 4771078

  • 4771078 - MEMBRANE

25 11062176

  • 11062176 - CIRCLIP
  • M85
  • Int

26 16043221

  • 16043221 - BOLT
  • Hex
  • M8 x 16mm
  • Cl 8.8
  • Full Thd

27 11198371

  • 11198371 - BELLEVILLE WASHER
  • Belleville
  • M10.5

28 11193871

  • 11193871 - BELLEVILLE WASHER
  • Belleville
  • M8.4

29 79037448

  • 79037448 - ENGINE GASKET KIT

30 16043224

  • 16043224 - BOLT
  • Hex
  • M8 x 16mm
  • Cl 8.8
