New Holland Construction
/
(FD14E) - CRAWLER DOZER
/

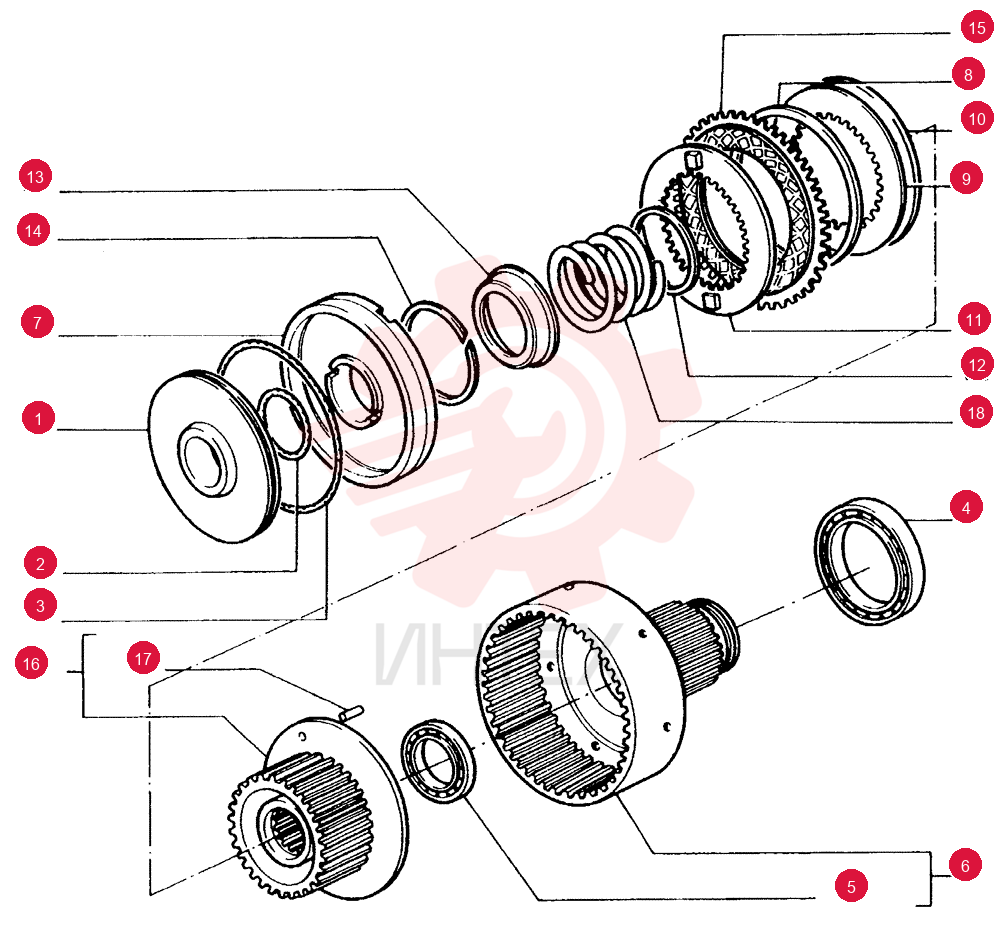

PISTON 4983905 (2)

PISTON 4983905 (2)

PISTON 4983905 (2)

1 4983905

  • 4983905 - PISTON

2 14459781

  • 14459781 - O-RING
  • 55.24mm ID x 60.479mm OD x 2.62mm Thk

3 14467781

  • 14467781 - O-RING
  • 0.139" Thk x 6.234" ID
  • -259
  • Cl 7
  • 75 Duro

4 28042600

  • 28042600 - BALL BEARING
  • 100mm ID x 150mm OD x 24mm W

5 79032204

  • 79032204 - NEEDLE BEARING
  • 50mm ID x 80mm OD x 28mm W

6 79032640

  • 79032640 - DRUM

7 79036885

  • 79036885 - PISTON

8 79038905

  • 79038905 - SPRING CLIP

9 79040802

  • 79040802 - CLUTCH DISC

10 79040803

  • 79040803 - DISC
  • 127.96mm ID x 195mm OD x 3mm Thk

11 79041947

  • 79041947 - DISC
  • 121.48mm ID x 195mm OD x 2.5mm Thk

12 79041949

  • 79041949 - SPACER

13 79041950

  • 79041950 - CUP

14 79041951

  • 79041951 - SNAP RING

15 79057506

  • 79057506 - DISC

16 79079550

  • 79079550 - DISC
  • 145mm ID x 208mm OD x 3.5mm Thk

17 79071765

  • 79071765 - DRUM

18 79071789

  • 79071789 - NEEDLE ROLLER

19 79077584

  • 79077584 - SPRING
