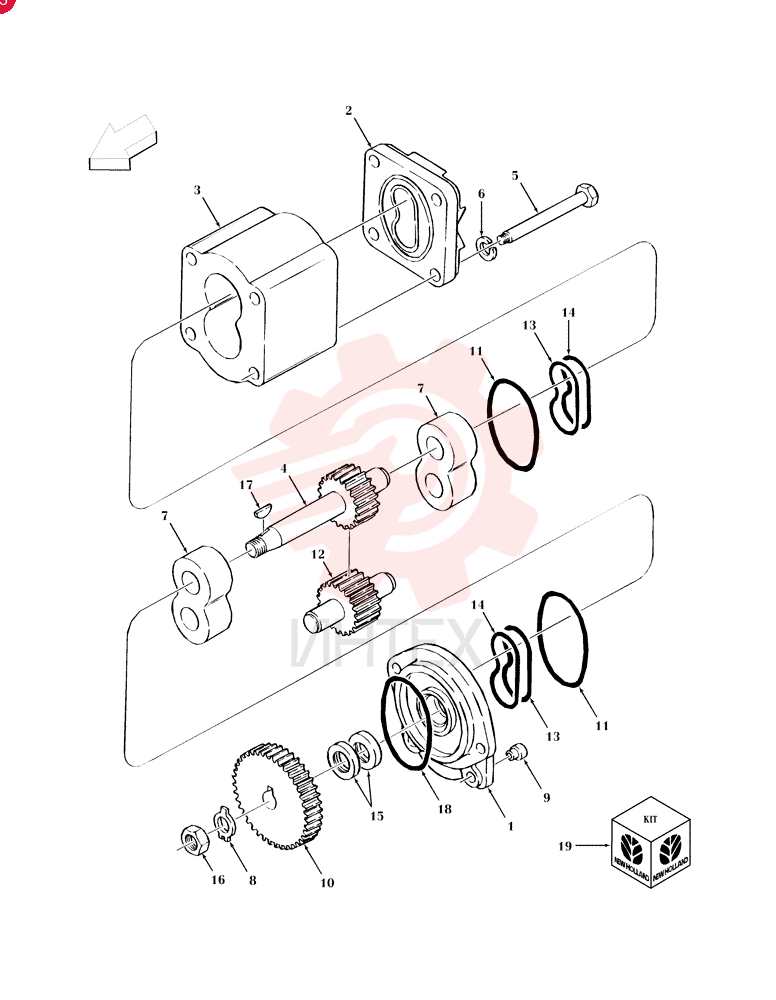

PUMP
1 F0NN600AA
- F0NN600AA - PUMP
- Pump Assy. Includes: Ref. 1 thru 17
2 82023350R
- 82023350R - REMAN-HYD PUMP
- Reman for New PN F0NN600AA
3 82023350C
- 82023350C - CORE-HYDRAULIC PUMP
- Return Number
4 F0NN3C535AA
- F0NN3C535AA - FLANGE
5 F0NNN619AA
- F0NNN619AA - COVER
6 NSS
- NSS - NOT SOLD SEPARAT
- Body
7 NSS
- NSS - NOT SOLD SEPARAT
- Gear
8 F0NND931AA
- F0NND931AA - BOLT
9 34804S36
- 34804S36 - LOCK WASHER
- Washer
- Lock
- 3/8"
10 NSS
- NSS - NOT SOLD SEPARAT
- Bearing Assy.
11 957E994633
- 957E994633 - WASHER
- Washer
- Lock
- 7/16"
- Retaining Tab
12 C5NN3N532A
- C5NN3N532A - SLEEVE
13 C5NN3A742A
- C5NN3A742A - GEAR
14 83925949
- 83925949 - CARRIER FLANGE SEAL
- 64.26mm ID x 69.34mm OD x 3mm Thk
- O-Ring
- M65 ID x 2.03 Thk
15 NSS
- NSS - NOT SOLD SEPARAT
- Gear
16 E0NNE869AA
- E0NNE869AA - RING
- Backup
- Nylon
17 E0NNS844AA
- E0NNS844AA - RING
- Loading Seal
18 E0NN3N529AA
- E0NN3N529AA - SEAL
- Seal
- Pump Shaft
19 87891
- 87891 - BHD LOCK NUT
- Jam
- 7/16"-20
- G2
- Jam
- G2
- 7/16"-20
20 74174S
- 74174S - WOODRUFF KEY
- #5
- 1/8" x 5/8"
- HT
- KEY
- WOODRUFF
- #5
- 1/8" x 5/8"
- HT
21 379275S94
- 379275S94 - O-RING
- 0.103" Thk x 3.237" ID
- -152
- Cl 5
- 75 Duro
- Seal
- 3-1/4" x .103
- Pump to Engine
22 81863210
- 81863210 - SEAL KIT
- Kit
- Pump Seal Includes: Ref. 11
- 13
- 14 & 15
