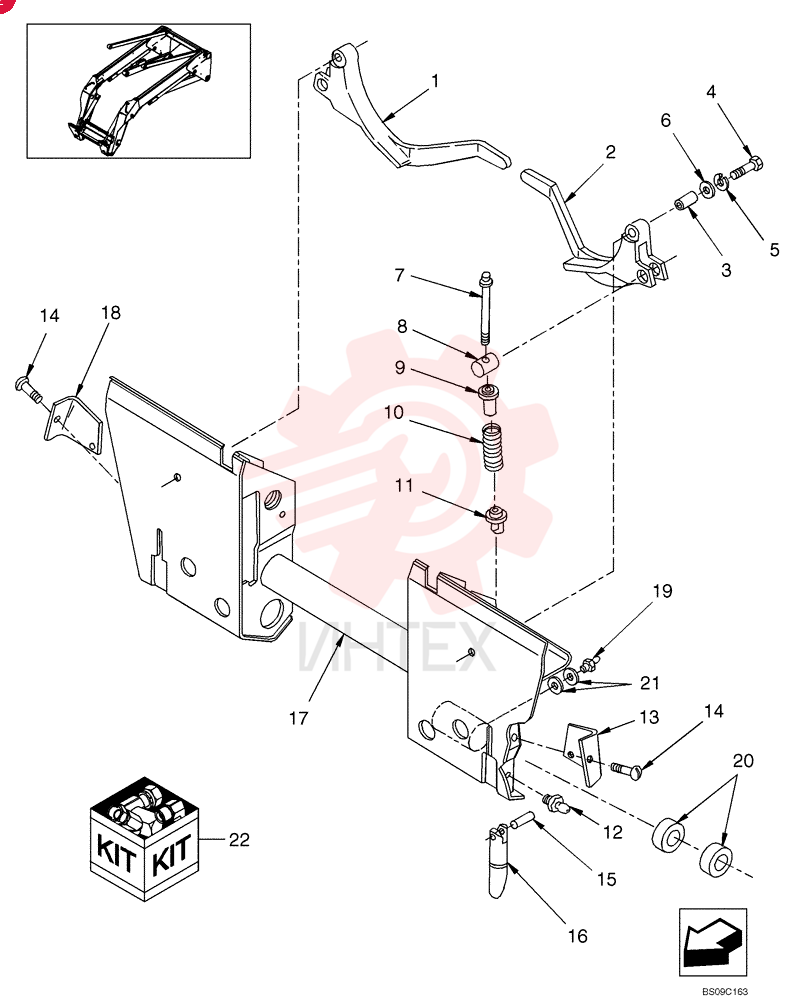

HANDLE 86526107
1 86526107
- 86526107 - HANDLE
- RH
2 86526105
- 86526105 - HANDLE
- LH
3 9829734
- 9829734 - SPACER
4 280425
- 280425 - BOLT
- Hex
- 3/8" - 16 x 2"
- Gr 8
- Cap
- HH
- G8
- 3/8"-16 x 2"
5 140045
- 140045 - BELLEVILLE WASHER
- M10 Bolt Size x 22mm OD x 1.6mm Thk
6 285072
- 285072 - WASHER
- 10.3mm ID x 22.2mm OD x 2.7mm Thk
- (3/8")
7 86506112
- 86506112 - 12 PT SCREW
- 1/2" - 3/8" - 16 x 5"
- Cap
- 12 Pt Hd
- Shoulder
- G8
- 3/8"-16 x 5"
- If Used
8 87533223
- 87533223 - 12 PT SCREW
- 3/8" - 16 x 5"
- Gr 8
- Cap
- Shoulder
- 12PT PH .5 X 4.0
- If Used
9 9829733
- 9829733 - PIN
- 25.4mm OD x 39mm L
10 86610166
- 86610166 - GUIDE
- 13.5mm ID x 22mm OD x 46.6mm L
- Spring
- Upper
11 86610167
- 86610167 - SPRING
- Compression
- 35.15mm OD x 101.6mm L
- Compression
- 1.38" (35mm) OD
12 86510869
- 86510869 - PIN
- 22.20mm Dia x 43.60mm L
- Spring
- Lower
- If Used
13 87579303
- 87579303 - PIN
- 34.92mm OD x 43.6mm L
- If Used
14 87414
- 87414 - LUBE NIPPLE
- 1/4" - 28
15 9844669
- 9844669 - SHIELD
- LH
16 87012887
- 87012887 - BOLT
- Button Hd
- 5/16"-18 x 1"
17 86616372
- 86616372 - LOCK PIN
- 9.53mm OD x 44.45mm L
- Slotted
18 86575348
- 86575348 - PIN
- 31.75mm x 142mm L
- Latch
- Zinc Plated
- If Used
19 87758365
- 87758365 - PIN
- 31.75mm OD x 142.3mm L
- Latch
- Heat Treated
20 9841460
- 9841460 - MOUNTING PLATE
- Incl. 20
21 9844670
- 9844670 - SHIELD
- RH
22 606943
- 606943 - LUBE NIPPLE
- 1/8"-27 NPT x 1.76" lg
23 9845313
- 9845313 - BUSHING
- 38.15mm ID x 42.82mm OD x 22.2mm L
24 80702
- 80702 - WASHER
- 0.44" ID x 1" OD x 0.08" Thk
25 86597931
- 86597931 - REPAIR KIT
- Latch Pivot
- Incl. 23 - 26
26 80756
- 80756 - COTTER PIN
- 1/8" x 3/4"
27 86588506
- 86588506 - SPACER
28 86597932
- 86597932 - WASHER
29 86599736
- 86599736 - PIN
