(LS185.B) - SKID STEER LOADER
/

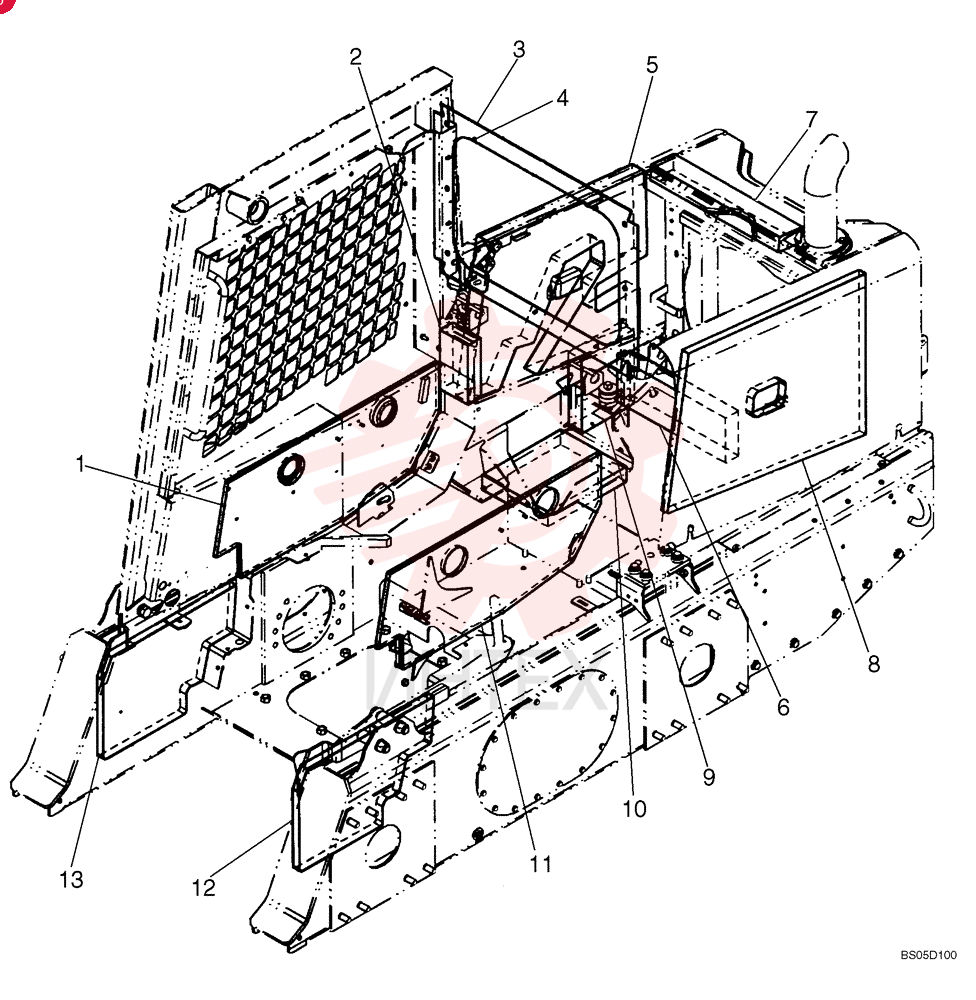

INSULATING PANEL 86506559

INSULATING PANEL 86506559

INSULATING PANEL 86506559

1 86506559

  • 86506559 - INSULATING PANEL
  • Left Hand Liner

2 86518697

  • 86518697 - PANEL
  • Engine Front

3 86506562

  • 86506562 - PANEL
  • Rear Window

4 86520136

  • 86520136 - RIVET
  • Aluminum
  • .196” Dia

5 87460783

  • 87460783 - PAD
  • Right Hand Engine Panel

6 87460784

  • 87460784 - PAD
  • Under Radiator

7 87460785

  • 87460785 - PAD
  • Over Radiator

8 87460762

  • 87460762 - PAD
  • Left Hand Engine Panel

9 86629235

  • 86629235 - FOAM INSULATION

10 86629233

  • 86629233 - FOAM

11 86506560

  • 86506560 - INSULATING PANEL
  • Right Hand Liner

12 86506571

  • 86506571 - PANEL
  • Left Hand Kick Panel

13 86506570

  • 86506570 - PANEL
  • Right Hand Kick Panel
