New Holland Construction
/
(LS185.B) - SKID STEER LOADER
/

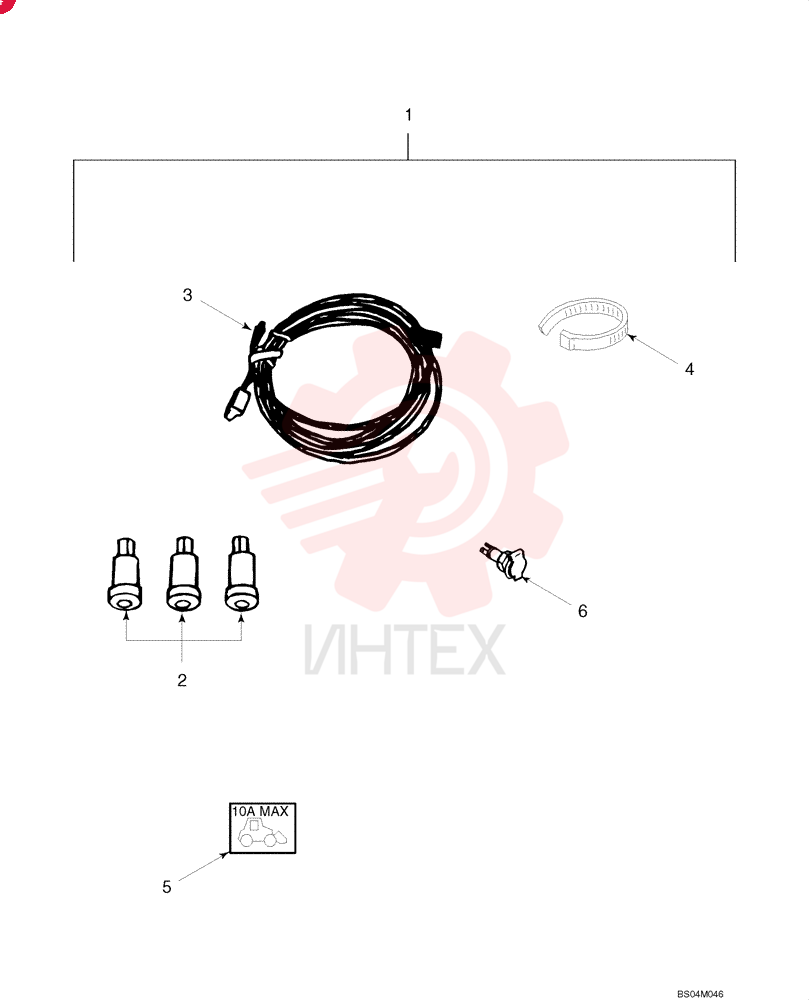

KIT 86590115

KIT 86590115

KIT 86590115

1 86590115

  • 86590115 - KIT
  • Electric Power
  • Incl. Ref 2 - 6

2 86508819

  • 86508819 - POWER SOCKET

3 86509500

  • 86509500 - WIRE HARNESS
  • Attach Power

4 263117

  • 263117 - CABLE TIE
  • 292.1mm L
  • Nylon
  • Black

5 86511515

  • 86511515 - DECAL
  • Attach Power

6 82002966

  • 82002966 - POWER SOCKET
  • M18 x 1
  • Auxiliary Electric Power
