New Holland Construction
/
(LS185.B) - SKID STEER LOADER
/

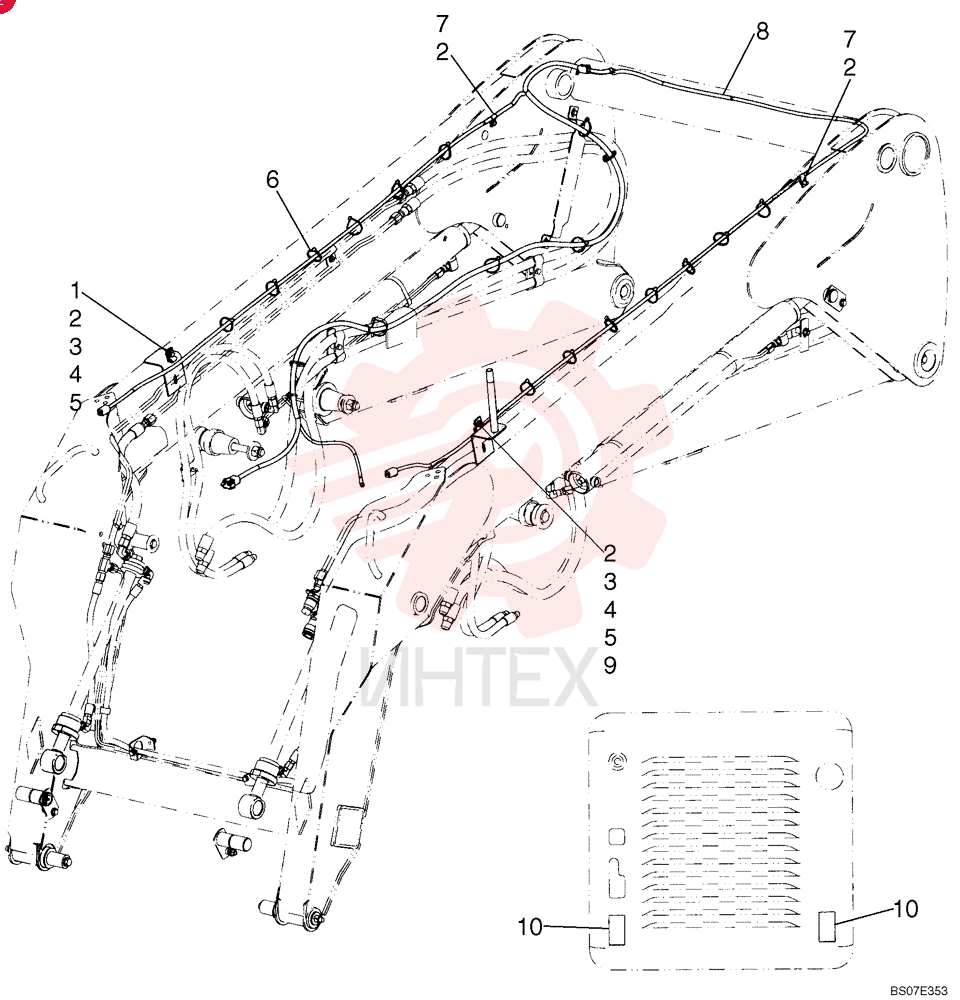

SUPPORT 86529244

SUPPORT 86529244

SUPPORT 86529244

1 86529244

  • 86529244 - SUPPORT

2 853765

  • 853765 - CLAMP
  • 7.9mm
  • Coat
  • 10.3mm Bolt Hole
  • P Type

3 87872

  • 87872 - BOLT
  • Hex
  • 5/16" - 18 x 3/4"
  • Gr 5

4 322358

  • 322358 - BELLEVILLE WASHER
  • M8 Bolt Size x 18mm OD x 1.4mm Thk

5 9635082

  • 9635082 - NUT
  • 5/16" - 18
  • Gr 5

6 263117

  • 263117 - CABLE TIE
  • 292.1mm L
  • Nylon
  • Black

7 9840344

  • 9840344 - BOLT
  • Hex
  • 5/16" - 18 x 11/16"

8 87573549

  • 87573549 - HARNESS
  • Europe Boom Lights
  • If Used

9 87687994

  • 87687994 - HARNESS
  • Europe Boom Lights
  • If Used

10 86522442

  • 86522442 - SUPPORT

11 121573A1

  • 121573A1 - REFLECTOR
  • 94mm L X 44mm W
  • Red
