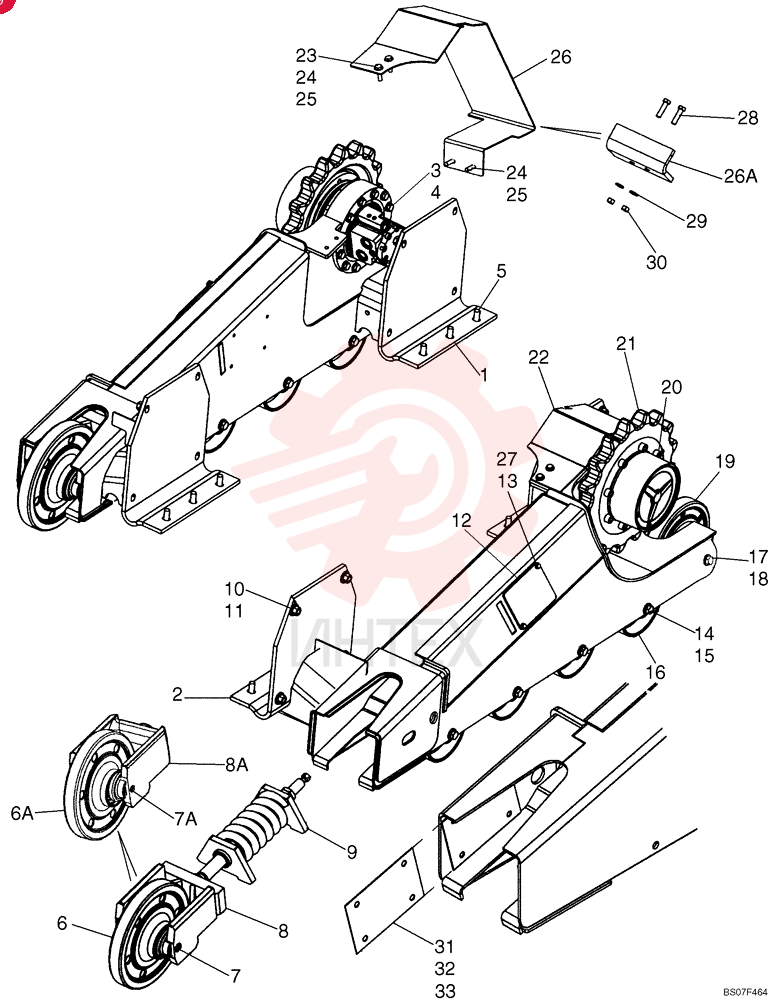

KIT
1 87563154
- 87563154 - KIT
- Roller And Idler
- Includes Ref. 6A
- 7A
- 14
- 15
- 16-18
- 19 And Instructions
2 87582834
- 87582834 - SWING CARRIAGE
- Right Hand
- Replaces 87465800
- 87459939
3 87582829
- 87582829 - SWING CARRIAGE
- Left Hand
- Replaces 87462802
- 87459937
4 87303344
- 87303344 - BOLT
- Hex
- M14 x 85mm
- Cl 10.9
5 87016615
- 87016615 - WASHER
- 15.3mm ID x 28.5mm OD x 3mm Thk
6 19-5875
- 19-5875 - FLANGE BOLT
- Hex
- 5/8" - 18 x 1 3/4"
- Gr 8
- If Used
7 87306426
- 87306426 - BOLT
- Bolt
- Flange
- 5/8-18 x 1-3/4 FULL GR8 PHC
- If Used
8 87447229
- 87447229 - IDLER
- 350 mm
- Front
- If Used
9 47378990R
- 47378990R - REMAN-WHEEL IDLER
- 350 mm
- Front
10 47378990C
- 47378990C - CORE-WHEEL IDLER
- Return Part Number
11 87480418
- 87480418 - FRONT IDLER
- 350mm OD x 194mm W
- 350 mm
- Front
- If Used
- Replaces 87462176
- 87535298
12 47378990R
- 47378990R - REMAN-WHEEL IDLER
- 350 mm
- Front
13 47378990C
- 47378990C - CORE-WHEEL IDLER
- Return Part Number
14 87460026
- 87460026 - HEX SOC SCREW
- Flat Hd Modified
- M20 x 2.5 x 32mm
- M20 x 32 x 2.5
- If Used
15 14301821
- 14301821 - HEX SOC SCREW
- M10 x 16mm
- Cl 8.8
- Full Thd
- If Used
16 87461520
- 87461520 - YOKE
- Front Idler
- If Used
17 87462287
- 87462287 - YOKE
- Front Idler
- If Used
18 87602985
- 87602985 - TENSIONER
- Track Tensioner
- Replaces 87458724
- Incl 9A - 9C
19 87602988
- 87602988 - ROD
- Piston Rod
- Piston Rod For Track Tensioner
- Ref. 9
20 87602987
- 87602987 - SERVICE KIT
- Seal Kit
- Seal Kit For Track Tensioner
- Ref. 9
- Incl. Scraper
- Spacer
- And O-Ring
21 87356572
- 87356572 - VALVE
- Grease Valve For Track Tensioner
- Ref. 9
22 84213764
- 84213764 - CAP
- Cap
- Grease Valve For Tension Spring 87602985
23 86528652
- 86528652 - WASHER
- 16.28mm ID x 38.35mm OD x 4mm Thk
- If Used
24 87010568
- 87010568 - FLANGE NUT
- Flg
- 5/8"-18
- G5
- If Used
25 408
- 408 - NUT
- 5/8" - 18
- Gr 5
- No Longer Used
- Order 87010568
26 87354210
- 87354210 - COVER
- Plate
- Zerk Cover
- Replaces 87448727
27 87029930
- 87029930 - SELF-TAP SCREW
- Hex Washer
- 5/16" - 18 x 5/8"
- 5/16 x .62
- If Used
28 43127
- 43127 - BOLT
- Hex
- M8 x 1.25 x 25mm
- Cl 8.8
- Used with Ref 27
29 374835
- 374835 - BOLT
- Hex
- M16 x 2 x 40mm
- Cl 10.9
- Full Thd
- Hex
- M16 x 40
- 10.9
30 86639326
- 86639326 - WASHER
- 17.3mm ID x 34.5mm OD x 5mm Thk
31 87447228
- 87447228 - ROLLER ASSY.
- If Used
32 87480419
- 87480419 - TRACK ROLLER
- If Used
- P/n includes Roller Shell
- Shaft
- Brackets
- Plugs
- O-rings
- Sealing Rings
- Bushings- All NSS
33 87535297
- 87535297 - TRACK ROLLER
- Replaces 87447228
34 9512573
- 9512573 - BOLT
- Hex
- M20 x 2.5 x 40mm
- Cl 10.9
- Full Thd
35 86629891
- 86629891 - WASHER
- 19.8mm ID x 41.5mm OD x 5mm Thk
36 87480413
- 87480413 - IDLER
- 290mm OD x 220mm W
- Replaces 87447230
- 87535299
37 87303345
- 87303345 - HEX SOC SCREW
- M16 x 2 x 40mm
- Cl 10.9
- Full Thd
- M16 x 40
38 87460888
- 87460888 - SPROCKET
- 17 Tooth - 86 Pitch
39 87460475
- 87460475 - COVER PLATE
- Rear Cover Left
- Replaced By 87589343
- Ref 26A
40 86512554
- 86512554 - NUT
- M10 x 1.5
- Cl 10
- If Used
41 120068
- 120068 - BOLT
- Hex
- M10 x 40mm
- Cl 8.8
- Replaces 120112
42 86639325
- 86639325 - WASHER
- 10.8mm ID x 24.5mm OD x 3mm Thk
- If Used
43 87460473
- 87460473 - COVER PLATE
- Rear Cover Right
- Replaced By 87589343
- Ref 26A
44 87589343
- 87589343 - PLATE
- Replaces Ref 22
- 26
- Uses Ref 28
- 29
- 30
45 86624184
- 86624184 - WASHER
- 9mm ID x 16mm OD x 1.6mm Thk
- If Used
46 412087
- 412087 - BOLT
- Hex
- M12 x 1.75 x 45mm
- Cl 10.9
- Full Thd
- Use On Cover 87589343
47 86625255
- 86625255 - WASHER
- 13.3mm ID x 24.5mm OD x 3mm Thk
- Use On Cover 87589343
48 337475
- 337475 - NUT
- M12
- Cl 10
- Use On Cover 87589343
49 87650011
- 87650011 - SERVICE KIT
- Yoke Shim Kit
- Incl. 32
- 33 And Instructions
50 87650010
- 87650010 - PLATE
- 16 Gage Shim
51 87650009
- 87650009 - PLATE
- 12 Gage Shim
