New Holland Construction
/
(LT190.B) - COMPACT TRACK LOADER (3/05-)
/

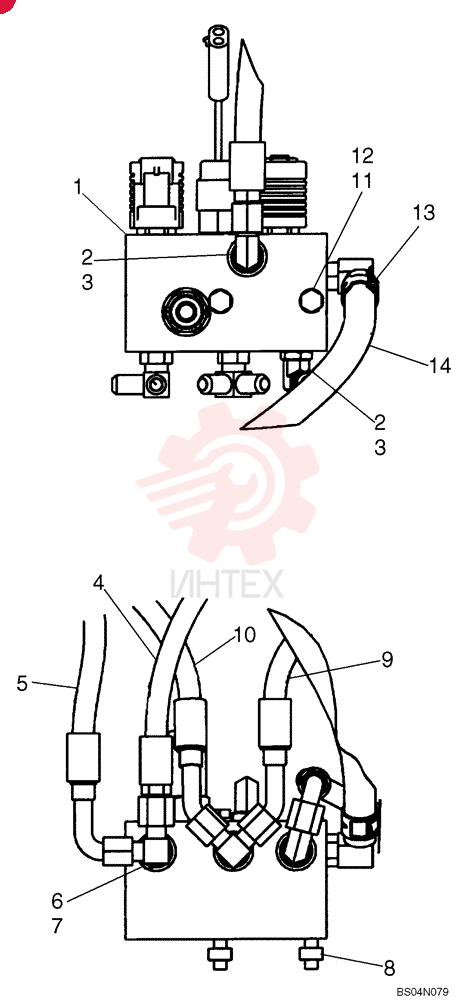

HYDRAULIC VALVE 87429625 (1)

HYDRAULIC VALVE 87429625 (1)

HYDRAULIC VALVE 87429625 (1)

1 87429625

  • 87429625 - HYDRAULIC VALVE
  • Brake
  • Two Speed
  • See Figure 06-05

2 87352524

  • 87352524 - BRAKE VALVE
  • Brake Valve
  • Two Speed
  • See Figure 06-05
  • Replaces 87429625

3 76344

  • 76344 - 90 ELBOW
  • 9/16" - 18 JIC x 9/16" - 18 ORB
  • Incl. 3

4 9617873

  • 9617873 - O-RING
  • 0.078" Thk x 0.468" ID
  • -906
  • Cl 6
  • 90 Duro
  • 3/8 OD Tube

5 87452392

  • 87452392 - HOSE
  • Two Speed

6 87459215

  • 87459215 - HOSE
  • Two Speed

7 L104616

  • L104616 - TEE
  • 9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 ORB
  • Incl. 7

8 238-6011

  • 238-6011 - O-RING
  • 0.07" Thk x 0.301" ID
  • -11
  • Cl 6
  • 90 Duro

9 280967

  • 280967 - SQUARE NUT
  • Sq
  • 5/16"-18
  • G2

10 87452395

  • 87452395 - HOSE
  • Brake

11 87452394

  • 87452394 - HOSE
  • Brake

12 86507008

  • 86507008 - BOLT
  • Hex
  • 5/16" - 18 x 3 1/2"
  • Gr 5

13 80681

  • 80681 - LOCK WASHER
  • 5/16"
  • If Used

14 86705580

  • 86705580 - FITTING
  • 90 Degree
  • 1/2" Hose Bead x 9/16" - 18 ORB
  • Incl. Nut
  • Washer
  • and O-Ring

15 87459214

  • 87459214 - HOSE
  • Case Drain
