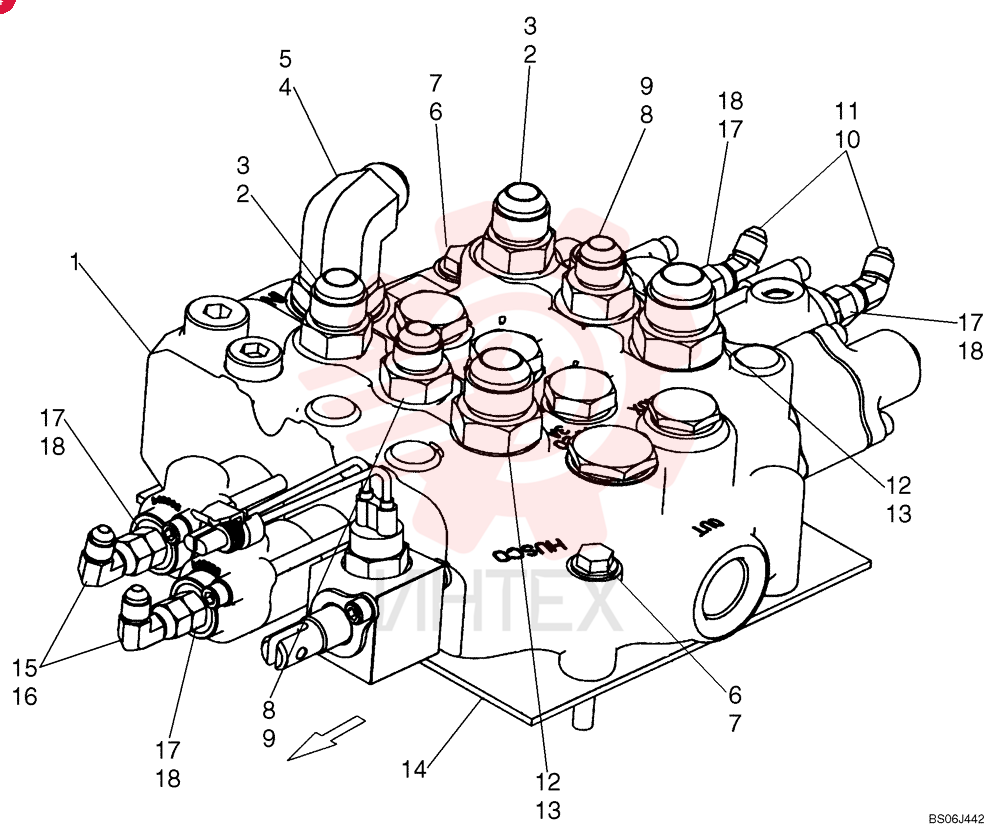

HYDRAULIC VALVE 87357100 (2)
1 87357100
- 87357100 - HYDRAULIC VALVE
- Valve Orifice .172 Pilot Controls
- See Fig. 08-01B
2 325059
- 325059 - HYD CONNECTOR
- 7/8"-14
- 37 Degree x 7/8"-14
- O-Ring
- Incl. 3
3 167269
- 167269 - O-RING
- 0.097" Thk x 0.755" ID
- -910
- Cl 6
- 90 Duro
4 84570
- 84570 - 90 ELBOW
- 7/8" - 14 JIC x 1-1/16" - 12 ORB
- Incl. 5
- If Used
5 167266
- 167266 - O-RING
- 0.116" Thk x 0.924" ID
- -912
- Cl 6
- 90 Duro
6 322358
- 322358 - BELLEVILLE WASHER
- M8 Bolt Size x 18mm OD x 1.4mm Thk
7 88731
- 88731 - BOLT
- Hex
- 5/16"- 18 x 3"
- Gr 5
8 128819
- 128819 - HYD CONNECTOR
- 7/8" - 14 ORB x 3/4" - 16 JIC
- Incl. 9
9 122057
- 122057 - O-RING
- 0.103" Thk x 0.737" ID
- -116
- Cl 6
- 90 Duro
10 86512993
- 86512993 - ELBOW
- 45 Degree
- 7/16" - 20 JIC x 7/16" - 20 ORB
- Incl. 11
11 86512958
- 86512958 - HYD CONNECTOR
- Elbow
- 45 37 FL X SVWL -04
- Replaces 86512993
12 165202
- 165202 - O-RING
- 0.072" Thk x 0.351" ID
- -904
- Cl 6
- 90 Duro
13 322896
- 322896 - HYD CONNECTOR
- 1-1/16" - 12 ORB x 1-1/16" - 12 JIC
- Incl 13
14 167266
- 167266 - O-RING
- 0.116" Thk x 0.924" ID
- -912
- Cl 6
- 90 Duro
15 87462101
- 87462101 - PAD
- 3.2 mm Thick
- If Used
16 87615827
- 87615827 - PAD
- 6.4 mm Thick
- If Used
17 216773
- 216773 - 90 ELBOW
- 90 Degree
- 7/16"-20
- 37 Degree x 7/16"-20
- O-Ring
- Incl. 16
18 86512933
- 86512933 - 90 ELBOW
- 90 Degree
- 7/16"-20
- 37 Degree x 7/16"-20
- 37 Degree Fem Sw
- Replaces 216773
19 165202
- 165202 - O-RING
- 0.072" Thk x 0.351" ID
- -904
- Cl 6
- 90 Duro
20 265235
- 265235 - HYD CONNECTOR
- 7/16" - 20 ORB x 7/16" - 20 JIC
- Incl. 18
21 165202
- 165202 - O-RING
- 0.072" Thk x 0.351" ID
- -904
- Cl 6
- 90 Duro
