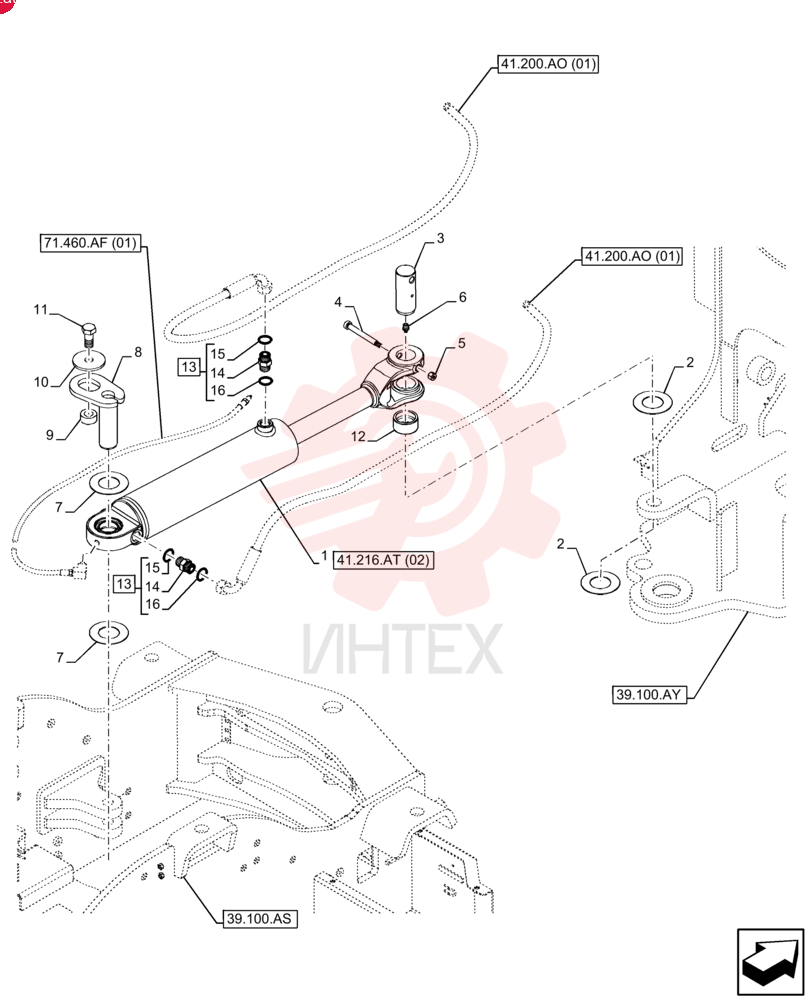

STEERING CYLINDER 47679902 (2)
1 47679902
- 47679902 - STEERING CYLINDER
- ASSY
2 419819A1
- 419819A1 - WASHER
3 380583A2
- 380583A2 - PIN
- Years: -20-SEP-15
4 47861067
- 47861067 - PIN
- Start Year: 21-SEP-15
5 87308853
- 87308853 - HEX SOC SCREW
- M8 x 96.4mm
- Cl 12.9
6 832-10408
- 832-10408 - NUT
- M8 x 1.25
- Cl 8.8
7 219-1
- 219-1 - LUBE NIPPLE
- 1/8" - 27 NPTF
8 8501088
- 8501088 - WASHER
- 41mm ID x 76mm OD x 1.59mm Thk
9 47576881
- 47576881 - PIN
10 L125100
- L125100 - SPACER
- 17.48mm ID x 31.75mm OD x 14.3mm Thk
11 496-81025
- 496-81025 - WASHER
- 21/32" x 2 1/2" x .188"
- HDN
12 627-16035
- 627-16035 - BOLT
- Hex
- M16 x 2 x 35mm
- Cl 10.9
- Full Thd
13 380602A1
- 380602A1 - BUSHING
14 9992305
- 9992305 - HYD CONNECTOR
- 13/16" - 16 ORFS x 3/4" - 16 ORB
- ASSY
- Incl 14 (Qty 1)
- 15 (Qty 1)
- 16 (Qty 1)
15 NSS
- NSS - NOT SOLD SEPARAT
- Connector
- Incl in 13
16 128825
- 128825 - O-RING
- 0.087" Thk x 0.644" ID
- -908
- Cl 6
- 90 Duro
17 9992298
- 9992298 - O-RING
- 0.07" Thk x 0.489" ID
- -14
- Cl 6
- 90 Duro
