324.0
/

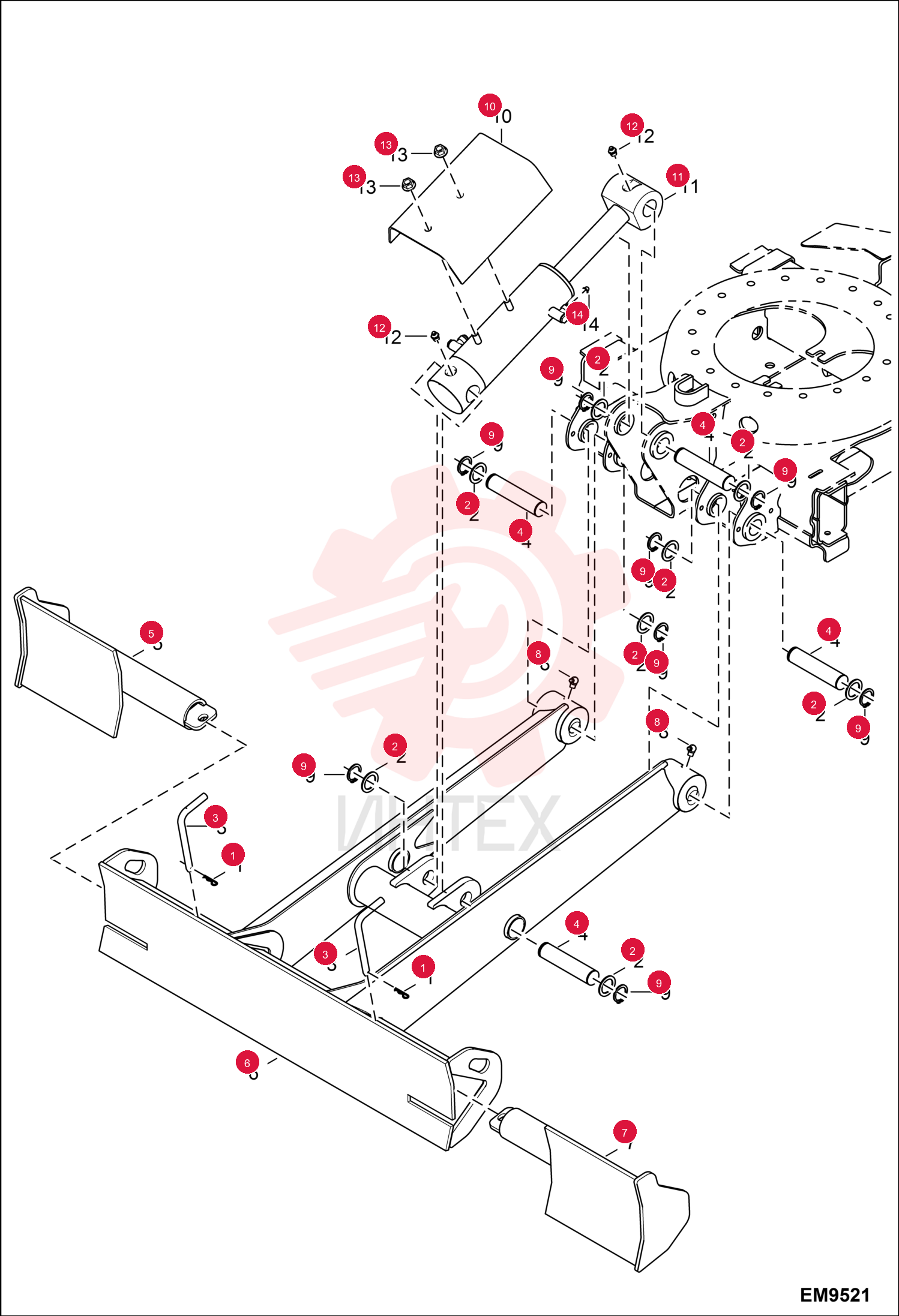

PIN HAIR 1306637 (2)

PIN HAIR 1306637 (2)

PIN HAIR 1306637 (2)

1 1306637

  • 1306637 - PIN HAIR

2 6589699

  • 6589699 - WASHER

3 7191936

  • 7191936 - PIN
  • Was 6805445

4 7176889

  • 7176889 - PIN

5 7193633

  • 7193633 - BLADE
  • RH

6 7193632

  • 7193632 - BLADE

7 7193634

  • 7193634 - BLADE
  • LH

8 12H15

  • 12H15 - FTG GREASE 90

9 22J19

  • 22J19 - SNAP RING

10 7235366

  • 7235366 - SHIELD
  • CYL

11 7179561

  • 7179561 - SHIELD CYL

12 7195528

  • 7195528 - CYLINDER
  • BLADE

13 7179957

  • 7179957 - CYL BLADE

14 10H25

  • 10H25 - FTG GREASE STRAIGHT

15 43DM10

  • 43DM10 - NUT FLANGED HEX

16 6586430

  • 6586430 - ORIFICE
