Bobcat
/

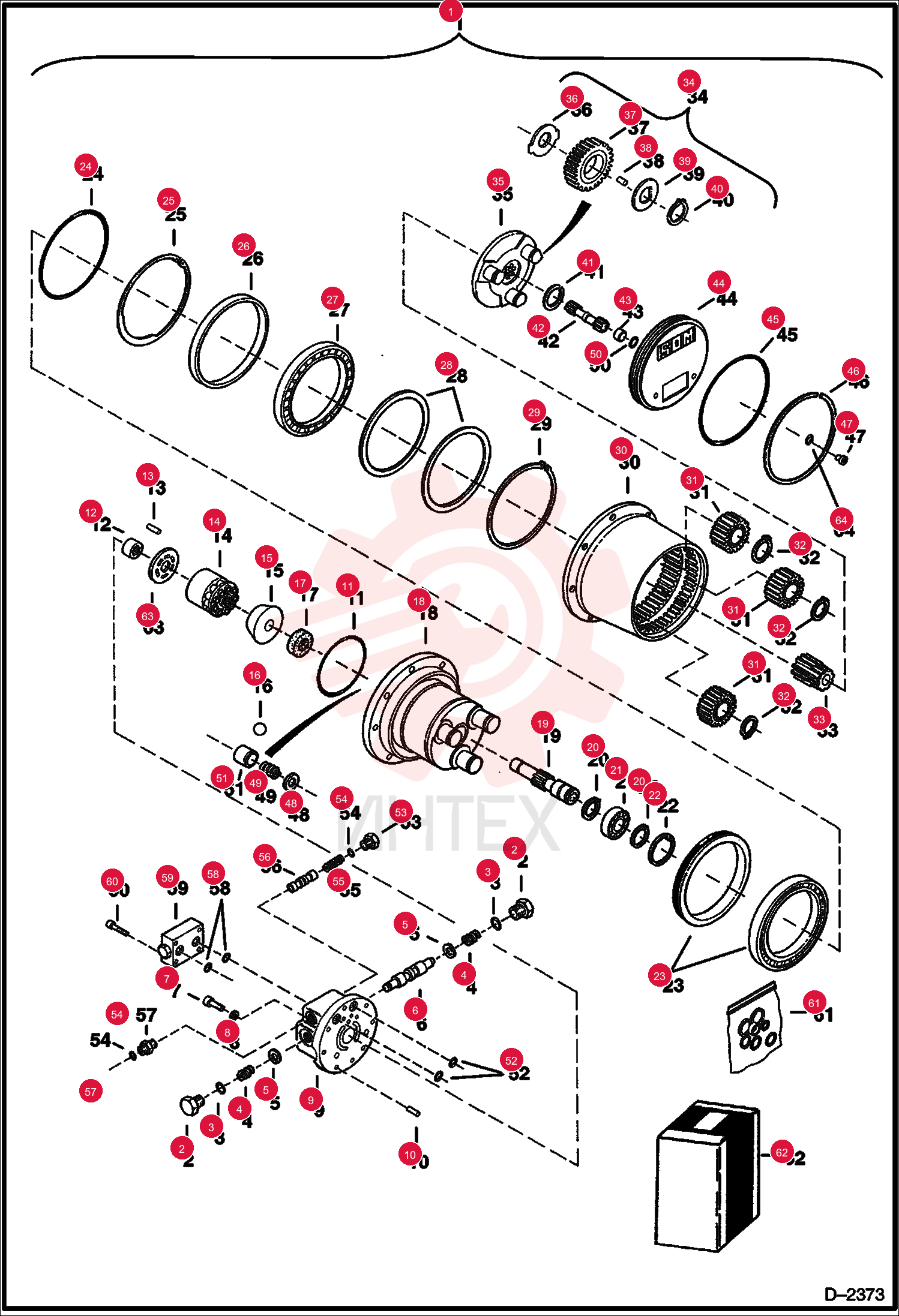

331.0
/
MOTOR, DRIVE HYD

MOTOR, DRIVE HYD

MOTOR, DRIVE HYD

1 6677666

  • 6677666 - MOTOR
  • DRIVE HYD
  • W/Ref. 2-60 - 12 hole - mount & sprocket

2 6671915

  • 6671915 - PLUG

3 6671911

  • 6671911 - O-RING
  • Incl. W/Ref. 61

4 6671917

  • 6671917 - WASHER

5 6671918

  • 6671918 - SPOOL

6 6671919

  • 6671919 - BOLT

7 6671920

  • 6671920 - WASHER

8 6683224

  • 6683224 - HOUSING

9 6671913

  • 6671913 - PIN

10 6671912

  • 6671912 - O-RING
  • Incl. W/Ref. 61

11 6671947

  • 6671947 - BEARING

12 6667782

  • 6667782 - DOWEL PIN

13 6671902

  • 6671902 - PISTON
  • MOTOR TRAVEL
  • W/Ref. 63

14 6671909

  • 6671909 - SWASHPLATE
  • swash

15 6670130

  • 6670130 - BALL

16 6671908

  • 6671908 - SEAL
  • OIL
  • Incl. W/Ref. 61

17 6683222

  • 6683222 - HOUSING
  • Also Order (2) 6682053 expander plugs

18 6671903

  • 6671903 - SHAFT

19 6669130

  • 6669130 - SNAP RING

20 6669124

  • 6669124 - BEARING

21 6669131

  • 6669131 - SNAP RING

22 6669101

  • 6669101 - BEARING
  • W/SEAL
  • W/Seal

23 6669108

  • 6669108 - O-RING
  • Incl. W/Ref. 61

24 6669105

  • 6669105 - SNAP RING

25 6669100

  • 6669100 - SPACER

26 6669110

  • 6669110 - BEARING
  • MOTOR DRIVE

27 6669119

  • 6669119 - SHIM
  • 0
  • 2mm thick

28 6669121

  • 6669121 - SHIM
  • 0
  • 4mm thick

29 6669120

  • 6669120 - SHIM
  • 0
  • 3mm thick

30 6669122

  • 6669122 - SHIM
  • 0
  • 9mm thick

31 6669123

  • 6669123 - SHIM
  • 0
  • 95mm thick

32 6669104

  • 6669104 - SNAP RING

33 6683223

  • 6683223 - HOUSING

34 6669097

  • 6669097 - GEAR
  • MOTOR SPRING
  • W/Bearing

35 6669102

  • 6669102 - SNAP RING

36 6669098

  • 6669098 - GEAR

37 6670127

  • 6670127 - GEAR ASSEMBLY
  • W/Ref. 35 - 40

38 6669103

  • 6669103 - SNAP RING

39 6670126

  • 6670126 - GEAR
  • SHAFT

40 6667747

  • 6667747 - SPACER

41 6669093

  • 6669093 - COVER

42 6669107

  • 6669107 - O-RING
  • Incl. W/Ref. 61

43 6669106

  • 6669106 - SNAP RING

44 6667771

  • 6667771 - PLUG

45 6670133

  • 6670133 - WASHER
  • metal

46 6670132

  • 6670132 - SPRING

47 6669597

  • 6669597 - SHIM
  • .0007 inch (0
  • 2mm) thick

48 6669598

  • 6669598 - SHIM
  • .012 inch (0
  • 3mm) thick

49 6669599

  • 6669599 - SHIM
  • .019 inch (0
  • 5mm) thick

50 6670131

  • 6670131 - PISTON

51 6671910

  • 6671910 - O-RING
  • Incl. W/Ref. 14

52 6670139

  • 6670139 - PLUG

53 6679861

  • 6679861 - O-RING
  • Incl. W/Ref. 14

54 6670704

  • 6670704 - SPOOL

55 6670136

  • 6670136 - ADAPTER

56 6671921

  • 6671921 - O-RING
  • Incl. W/Ref. 14

57 6679326

  • 6679326 - WASHER
  • SEALING
  • sealing for plug

58 58K016

  • 58K016 - O-RING 10

59 6670134

  • 6670134 - VALVE
  • RELIEF
  • Relief - Available as an assembly only

60 6687755

  • 6687755 - KIT
  • SEAL
  • Seal kit for 6670134

61 6670135

  • 6670135 - BOLT

62 6670129

  • 6670129 - SEAL KIT
  • Ref. 3
  • 11
  • 17
  • 24
  • 45
  • 52
  • 54 & 58

63 6670128

  • 6670128 - KIT
  • SEAL
  • Ref. 23 & 61 (6670129 kit)

64 7359258

  • 7359258 - KIT SPRING
  • Ref. 4 & 55

65 6671904

  • 6671904 - VALVE
  • PLATE
  • valve plate only - included W/Ref. 14

66 6675272

  • 6675272 - WASHER
