Bobcat
/
331.0
/

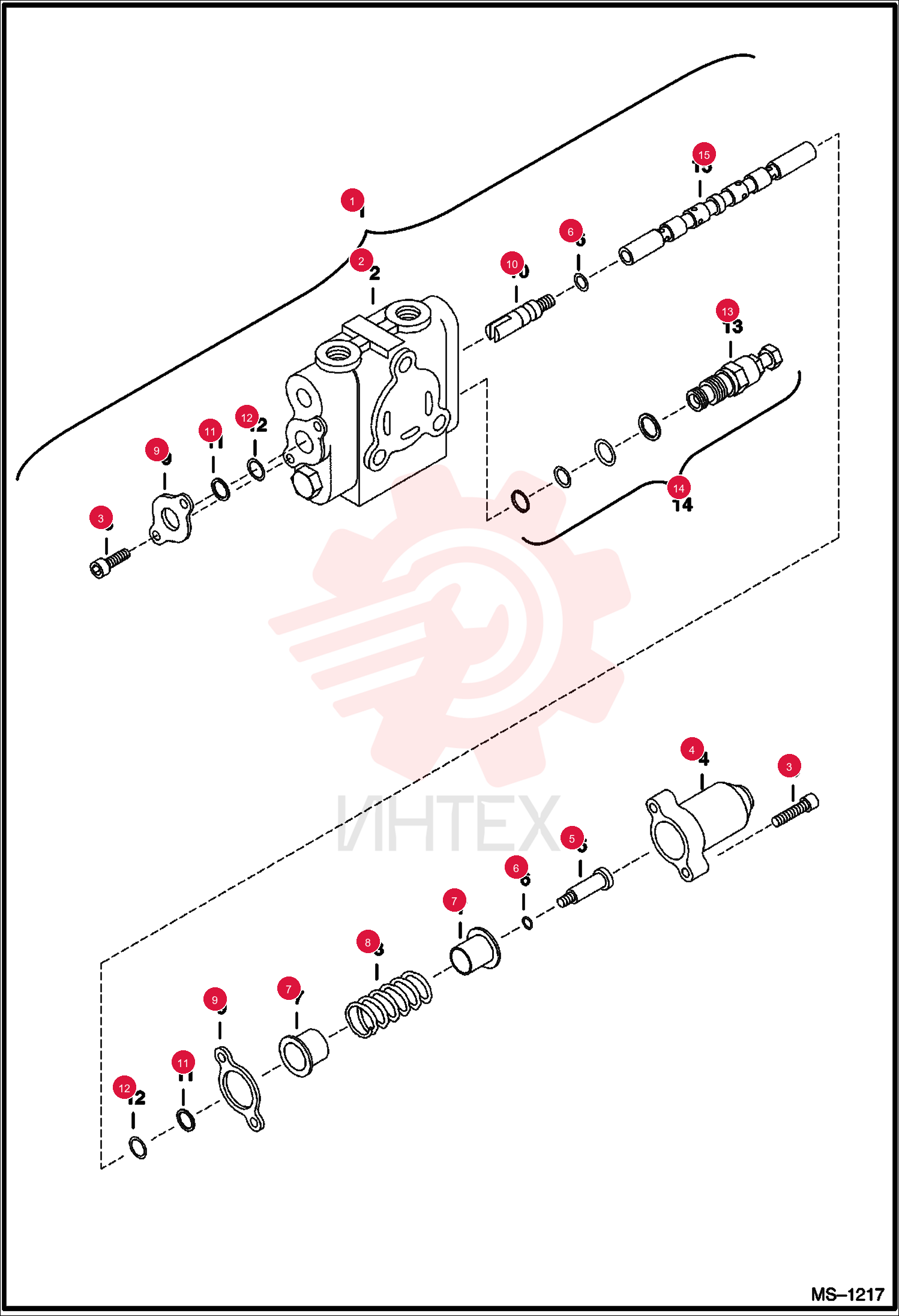

VALVE, SECTION 6677993

VALVE, SECTION 6677993

VALVE, SECTION 6677993

1 6677993

  • 6677993 - VALVE
  • SECTION
  • section - Ref. 2 - 15
  • right travel

2 73G414

  • 73G414 - CAPSCRW10
  • Was 6518610

3 948192

  • 948192 - CAP

4 6668962

  • 6668962 - BOLT

5 79K3

  • 79K3 - O RING 10
  • Was 91F2

6 6679108

  • 6679108 - SEAT
  • SPRING
  • spring

7 6668963

  • 6668963 - SEAT
  • spring

8 6668963

  • 6668963 - SEAT
  • spring

9 948018

  • 948018 - SPRING

10 948016

  • 948016 - PLATE

11 948021

  • 948021 - SEAL
  • WIPER
  • wiper

12 6668972

  • 6668972 - SEAL
  • O-RING

13 6675659

  • 6675659 - VALVE
  • relief - 2500 PSI

14 6659574

  • 6659574 - SEAL KIT
