Bobcat
/
331.0
/

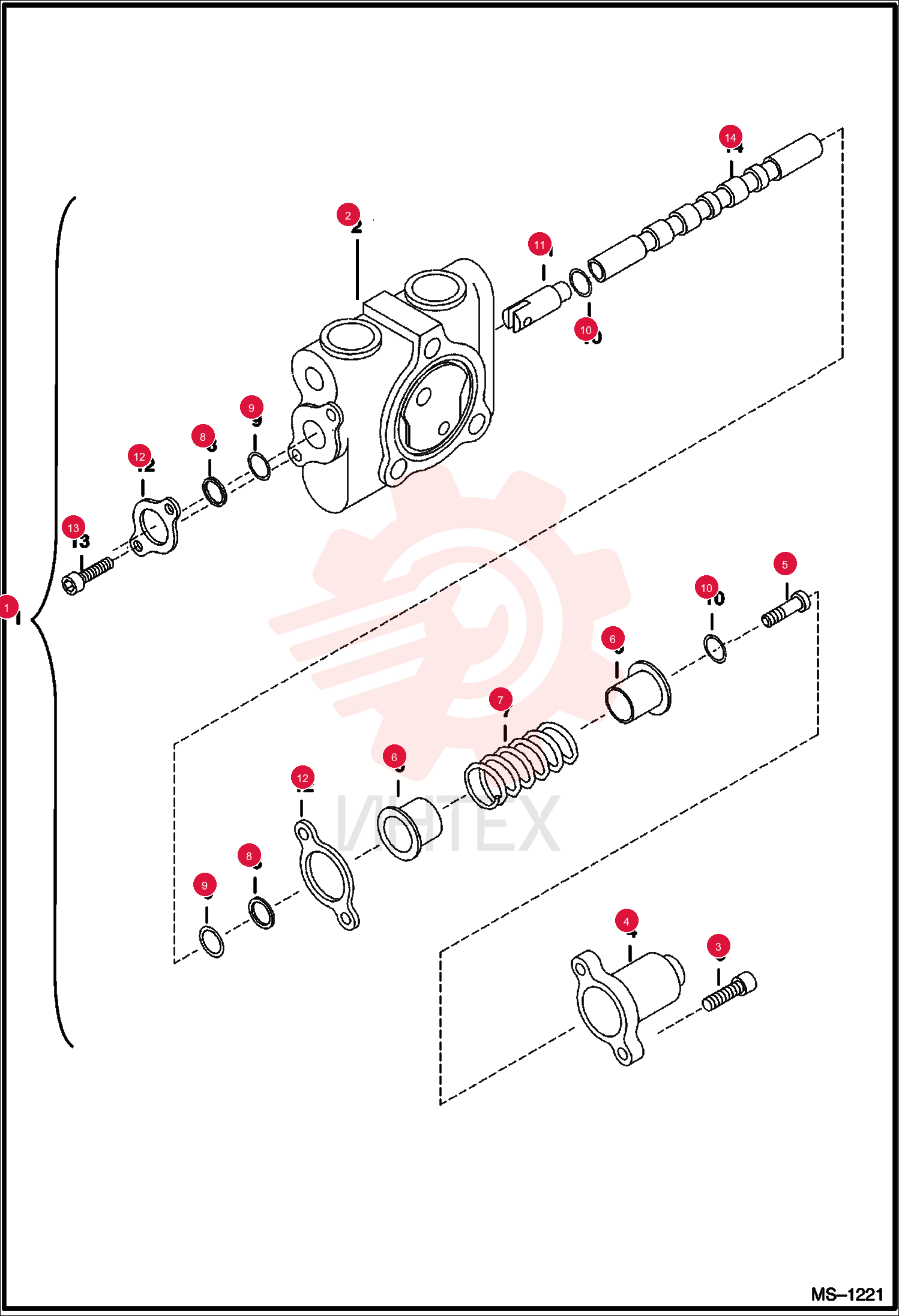

VALVE, SECTION 6677990

VALVE, SECTION 6677990

VALVE, SECTION 6677990

1 6677990

  • 6677990 - VALVE
  • SECTION
  • section - Ref. 2 - 14

2 73G414

  • 73G414 - CAPSCRW10
  • Was 6518610

3 948192

  • 948192 - CAP

4 6679106

  • 6679106 - END
  • SPOOL

5 6668963

  • 6668963 - SEAT
  • spring

6 6668963

  • 6668963 - SEAT
  • spring

7 6679108

  • 6679108 - SEAT
  • SPRING
  • spring

8 948018

  • 948018 - SPRING

9 948021

  • 948021 - SEAL
  • WIPER
  • wiper

10 6668972

  • 6668972 - SEAL
  • O-RING

11 79K3

  • 79K3 - O RING 10
  • Was 91F2

12 948016

  • 948016 - PLATE

13 6671684

  • 6671684 - BOLT
