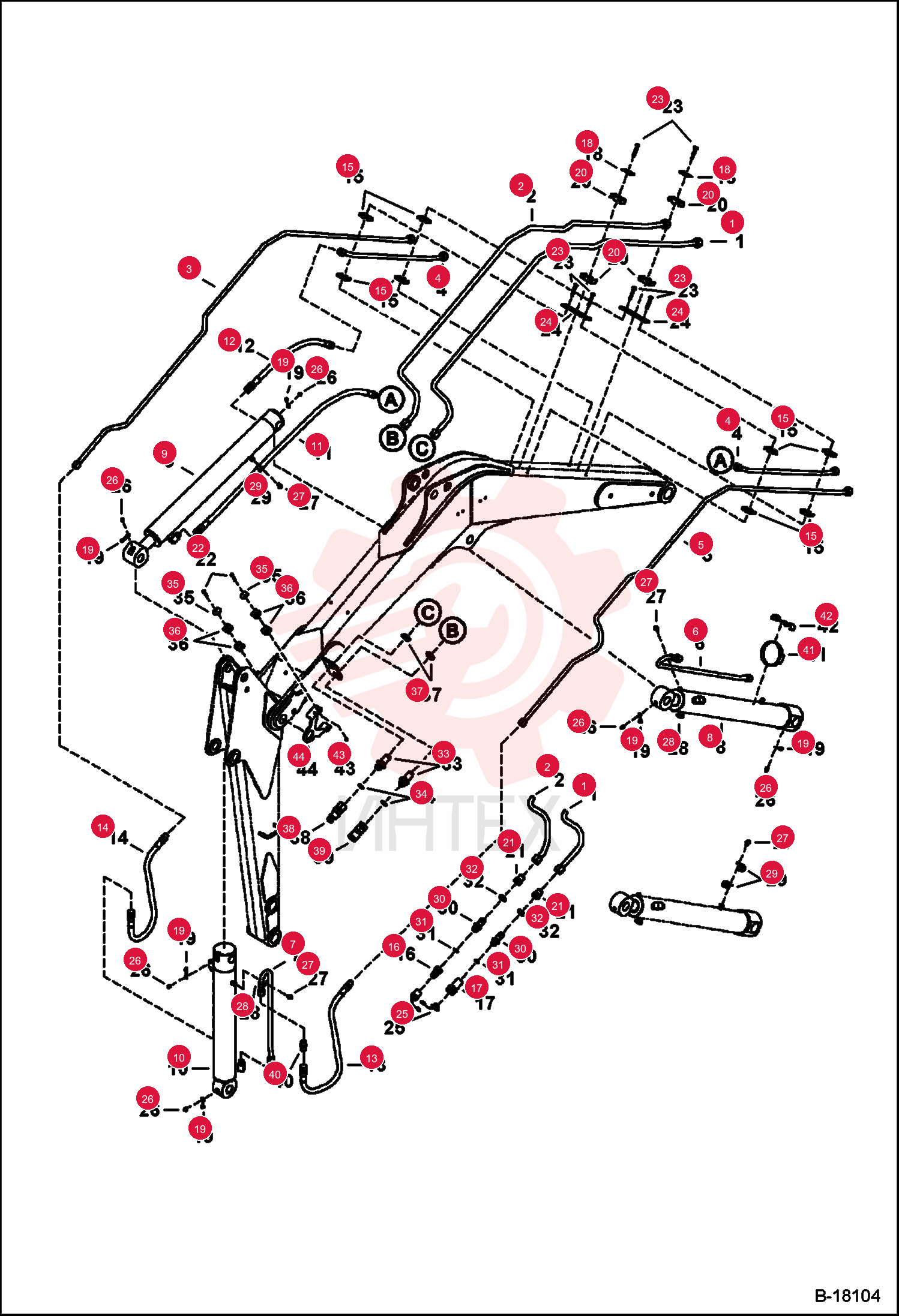

TUBE 6596039
1 6596039
- 6596039 - TUBE
- - For Use W/poppet couplers - Use W/aux bracket 6628560 2.95" (74.9 mm) x 4.72" (119.9 mm)
2 6628642
- 6628642 - TUBELINE
- - For Use W/flush face couplers - Use W/aux bracket 6628560 2.95" (74.9 mm) x 4.72" (119.9 mm)
3 7139955
- 7139955 - TUBELINE
- - Use W/aux bracket 6597688 3.86" (98 mm) x 4.95" (125.8 mm)
4 6628643
- 6628643 - TUBELINE
- - For Use W/flush face couplers - Use W/aux bracket 6628560 2.95" (74.9 mm) x 4.72" (119.9 mm)
5 7139956
- 7139956 - TUBELINE
- - Use W/aux bracket 6597688 3.86" (98 mm) x 4.95" (125.8 mm)
6 6596041
- 6596041 - TUBELINE
7 6596042
- 6596042 - TUBELINE
8 6596044
- 6596044 - TUBELINE
9 6596855
- 6596855 - TUBELINE
10 6596856
- 6596856 - TUBELINE
11 7105235
- 7105235 - HOSE
- Was 6628360
12 6628362
- 6628362 - HOSE
13 6539418
- 6539418 - HOSE
- Standard Arm - Was 6628675
14 6803909
- 6803909 - HOSE
- Long Arm
15 6816626
- 6816626 - HOSE
- Standard Arm - Was 6628363
16 6803909
- 6803909 - HOSE
- Long Arm
17 6577697
- 6577697 - CLAMP
- Was 6701893
18 6598757
- 6598757 - COUPLER
- POPPET MALE
- straight
19 6598758
- 6598758 - COUPLER FF FEMALE
- straight
20 48K16
- 48K16 - O RING 10
- Incl. W/Ref. 17
21 6652521
- 6652521 - PLATE
22 6652943
- 6652943 - COVER
- grease fitting
23 6592506
- 6592506 - CLAMP
- Was 6659498
24 6660224
- 6660224 - ADAPTER
- For Use W/poppet couplers only
25 1CM650
- 1CM650 - SCREW HEX CAP
- for bolting to washer bracket
26 1CM640
- 1CM640 - SCREW HEX CAP
- for bolting to boom
27 1CM840
- 1CM840 - SCREW HEX CAP
28 6596116
- 6596116 - PLATE
29 6513709
- 6513709 - CAP AND PLUG
- Coupler - cap & plug - for Use W/poppet couplers only
30 10H25
- 10H25 - FTG GREASE STRAIGHT
31 29CM812
- 29CM812 - BOLT
32 30H37
- 30H37 - CLIP INSULATED
33 30H50
- 30H50 - CLAMP
34 45K7
- 45K7 - CONNECTR
- bulkhead - for Use W/poppet couplers only
35 79K10
- 79K10 - O RING 10
- For Use W/poppet couplers only
36 86F7
- 86F7 - NUT 5
- For Use W/poppet couplers only
37 45K8
- 45K8 - ADAPTOR
- Bulk head-Use W/flush face couplers
38 97K12
- 97K12 - O-RING
- flared end
39 6812823
- 6812823 - ADAPTER
- flat boss face - W/Ref. 54
40 79K12
- 79K12 - O RING 10
- For Use W/flush face couplers - flat boss face
41 99K12
- 99K12 - O-RING
- For Use W/flush face couplers - tapered boss end
42 6665102
- 6665102 - COVER
43 6666920
- 6666920 - CLAMP
- HALF
44 86F8
- 86F8 - NUT 5
- For Use W/flush face couplers
45 7246777
- 7246777 - COUPLER
- FF MALE
- - straight - Was 6674688
46 7246777EF
- 7246777EF - COUPLER FF CONN UNDER PRESS 1/2-3/4 SAE
47 7246790
- 7246790 - COUPLER FF FEM 1/2
- - straight - Was 6672960
48 7246790EF
- 7246790EF - COUPLER FF FEMALE 1/2 BDY 3/4 SAE THREAD
49 87F7
- 87F7 - UNION
- for long arm only
50 42H56
- 42H56 - CLAMP
51 6806461
- 6806461 - CLAMP
52 53DM6
- 53DM6 - NUT
53 7126461
- 7126461 - BRACKET
