Bobcat
/
331.0
/

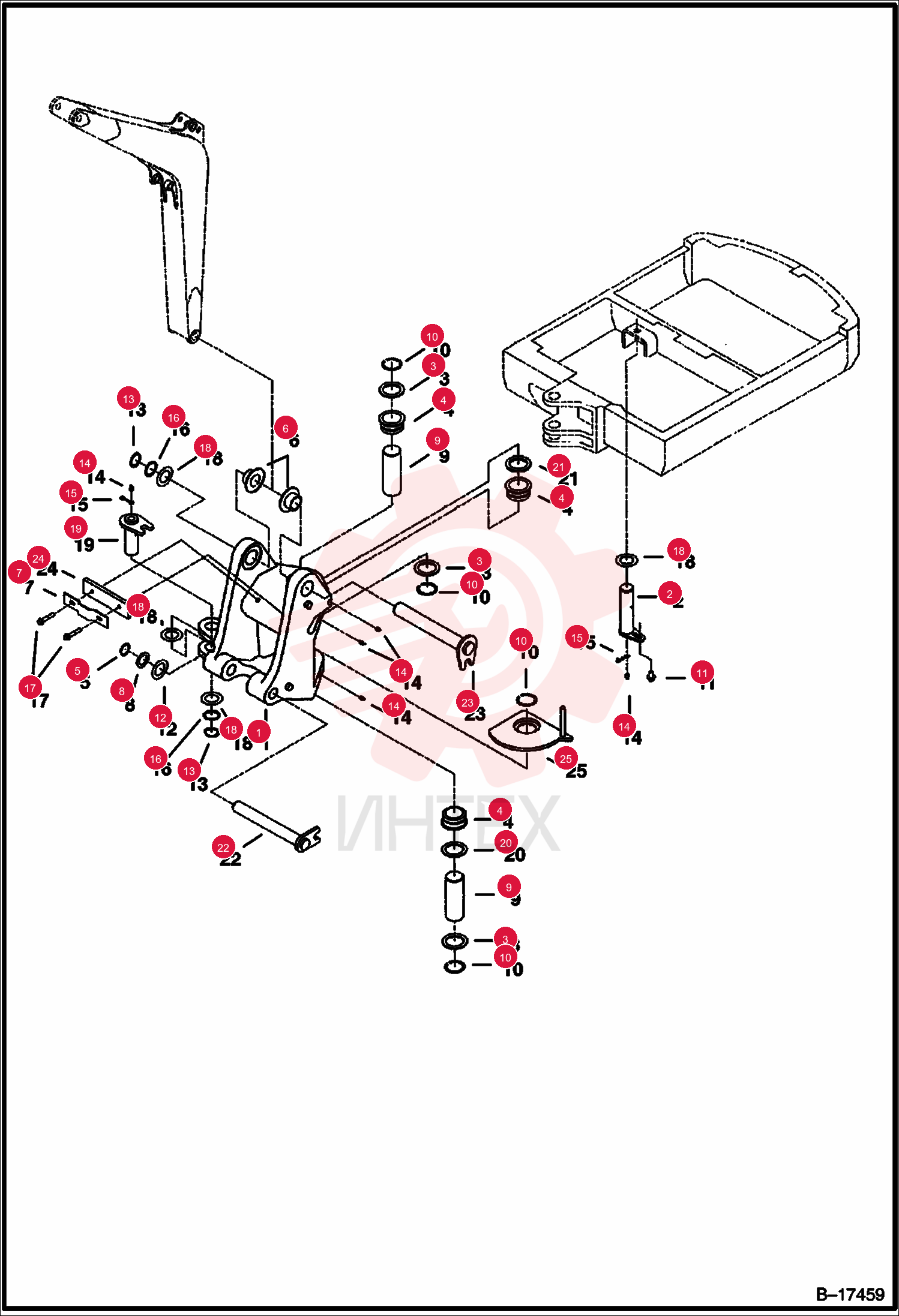

SWINGBRKT 6597197 (5)

SWINGBRKT 6597197 (5)

SWINGBRKT 6597197 (5)

1 6597197

  • 6597197 - SWINGBRKT
  • Swing

2 6587346

  • 6587346 - PIN

3 6538893

  • 6538893 - WASHER

4 6588095

  • 6588095 - BUSHING
  • WELD-ON

5 6534154

  • 6534154 - RING
  • RETAINER

6 6810581

  • 6810581 - BUSHING
  • Was 6539528

7 6589775

  • 6589775 - CLAMP
  • Hose

8 6534111

  • 6534111 - WASHER
  • 5

9 6588094

  • 6588094 - PIN

10 6660274

  • 6660274 - RING
  • RETAINER

11 29CM1220

  • 29CM1220 - BOLT

12 6535313

  • 6535313 - WASHER

13 6665618

  • 6665618 - RING
  • SNAP

14 10H25

  • 10H25 - FTG GREASE STRAIGHT

15 6652943

  • 6652943 - COVER
  • grease fitting

16 6666549

  • 6666549 - WASHER

17 1CM1055

  • 1CM1055 - BOLT

18 6535312

  • 6535312 - WASHER
  • Swing cylinder

19 6597202

  • 6597202 - PIN

20 6588098

  • 6588098 - WASHER

21 6588099

  • 6588099 - WASHER
  • .22'' (5
  • 5 mm) thick

22 6588121

  • 6588121 - WASHER
  • .24'' (6
  • 0 mm) thick

23 6588122

  • 6588122 - WASHER
  • .26'' (6
  • 5 mm) thick

24 6597200

  • 6597200 - PIN

25 6597198

  • 6597198 - PIN
  • PIVOT SWING

26 6589776

  • 6589776 - FOAM

27 6589641

  • 6589641 - SUPPORT
  • Hose
