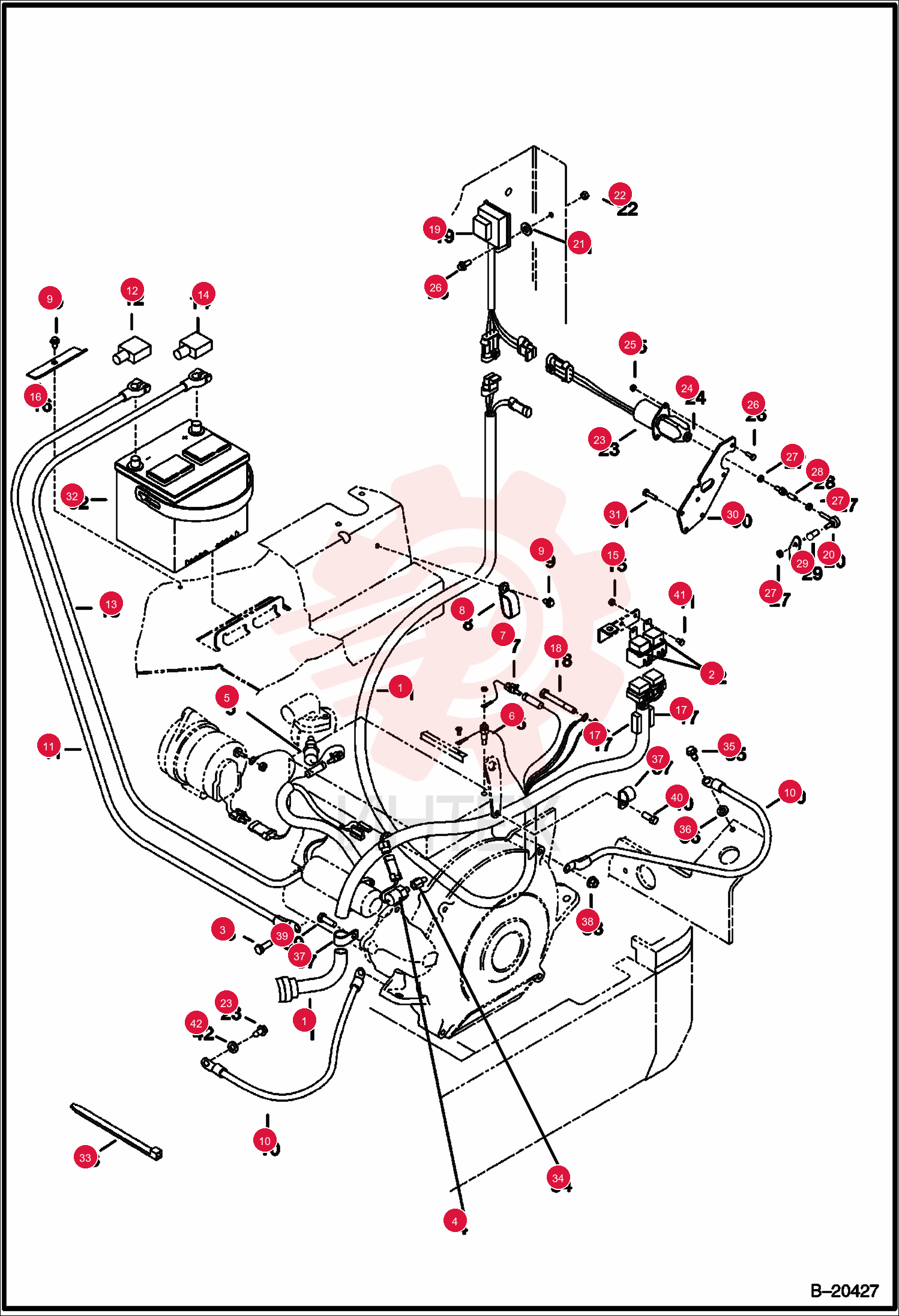

HARNESS
1 6596799
- 6596799 - HARNESS
- - Engine - 2 piece - for console harness
2 6670312
- 6670312 - SWITCH
- MAGNETIC
- relay - Was 6665005
3 6CM1220
- 6CM1220 - BOLT
4 6657389
- 6657389 - SWITCH
- PRESS OIL ENG
- Oil pressure
5 6664895
- 6664895 - SWITCH
- Water temperature
6 6664894
- 6664894 - SENDER
- Engine temperature
7 6538534
- 6538534 - WIRE
- Resistance
8 31H42
- 31H42 - CLIP
9 26GM8016
- 26GM8016 - SCREW SELF TAPPING
10 6565170
- 6565170 - CABLE
- neg
11 6588390
- 6588390 - CABLE
- Negative - W/Ref. 12
12 6599652
- 6599652 - BOOT
13 6564991
- 6564991 - CABLE
- POSITIVE
- Positive - W/Ref. 15
14 2356058
- 2356058 - BOOT
15 1DM6
- 1DM6 - NUT
- Was 4DM6
16 6597176
- 6597176 - ANGLE
- Battery hold down
17 6567537
- 6567537 - DIODE
18 1CM1080
- 1CM1080 - BOLT
19 6702444
- 6702444 - FUSE 25A 5
- 25 amp - Was 6670808
20 6669415
- 6669415 - TIMER
- SOLENOID
- Solenoid - Was 6665522
21 6803170
- 6803170 - ROD END
- swivel
22 2751101
- 2751101 - WASHER NE
- Rubber
23 5CM1020
- 5CM1020 - SCREW FL THD HEX CAP
24 6681513
- 6681513 - SOLENOID
- SHUTOFF FUEL
- Fuel shutoff - W/Ref. 24 - Was 6667993
25 6664286
- 6664286 - BOOT
- also order (1) Ref. 33
26 53DM6
- 53DM6 - NUT
- Was 52DM00006B
27 1CM616
- 1CM616 - SCREW HEX CAP
28 62D4
- 62D4 - NUT HEX FINISHED GR5
29 6578366
- 6578366 - JOINT
- BALL
30 6803171
- 6803171 - SPACER
- .66" (16.75 mm) long
31 6803173
- 6803173 - BRACKET
- Use W/Ref. 23
32 7269858
- 7269858 - BATTERY WET 540 CCA
- - Was 6670251
33 6610510
- 6610510 - STRAP
- TIE 10
34 6589668
- 6589668 - ADAPTER
35 26GM10020
- 26GM10020 - SCREW HEX THRDRLG
36 1EM100
- 1EM100 - WASHER PLAIN
37 30H46
- 30H46 - CLIP
38 51DM10
- 51DM10 - NUT HX THDLK PREAPPL
- Was 45DM00010B
39 1CM1030
- 1CM1030 - BOLT
40 4CM816
- 4CM816 - SCREW HEX HD 8.8
- Was 1CM816
41 1CM610
- 1CM610 - BOLT
42 10EM100
- 10EM100 - WASHER
