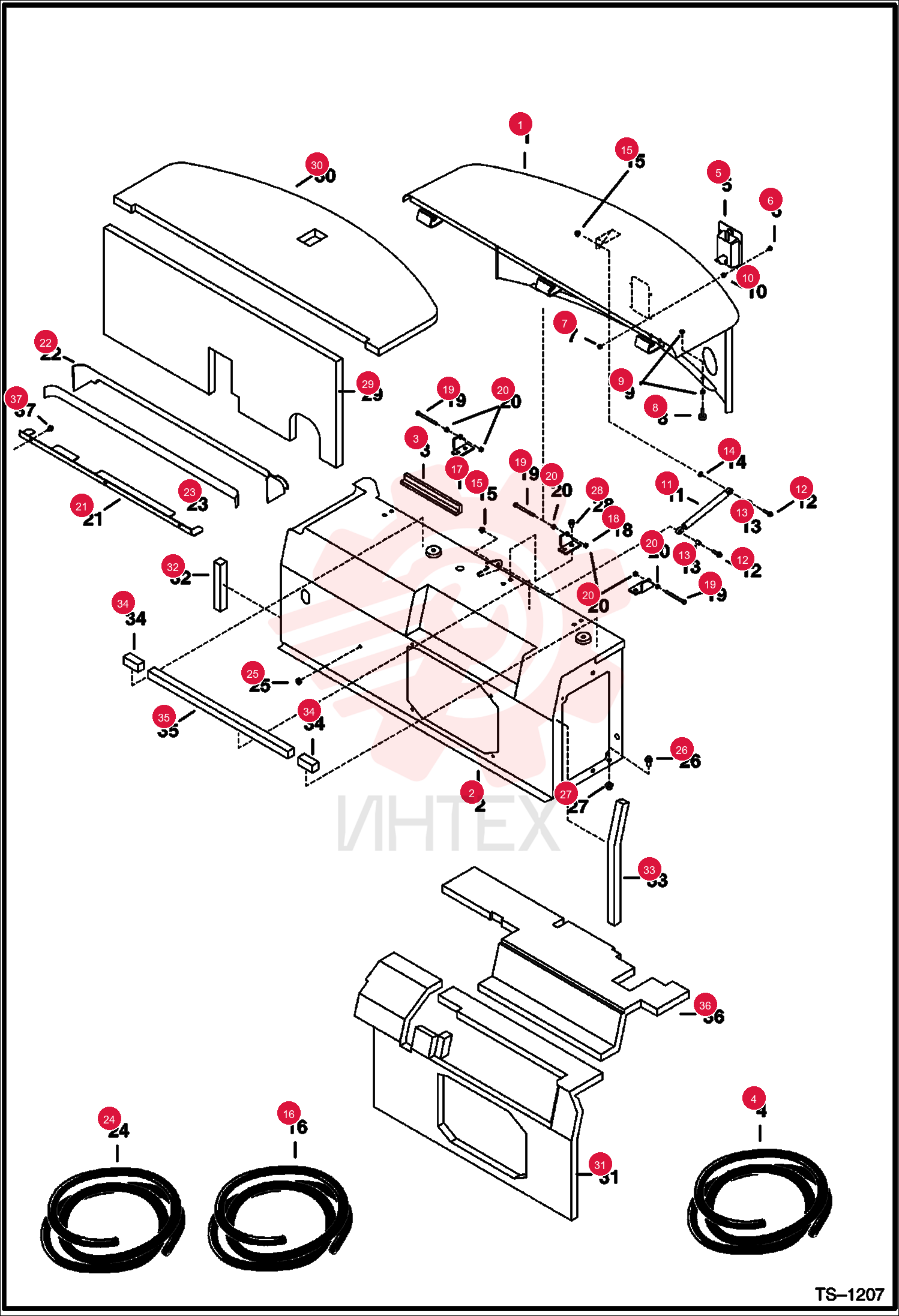

COVER 6596912 (1)

COVER 6596912 (1)

COVER 6596912 (1)

1 6596912

  • 6596912 - COVER
  • Engine

2 6597648

  • 6597648 - COVER

3 6670537

  • 6670537 - SEAL
  • BULK
  • bulk - sold per foot

4 6674239

  • 6674239 - LATCH
  • COVER ENG
  • Was 6664447

5 6587458

  • 6587458 - KEY CAP FUEL 2

6 6589675

  • 6589675 - SCREW

7 53DM6

  • 53DM6 - NUT
  • Not used on later models

8 6655399

  • 6655399 - BUMPER

9 61D5

  • 61D5 - NUT HEX FINISHED GR5

10 15EM60

  • 15EM60 - WASHER
  • Not used on later models

11 6664262

  • 6664262 - GASSPRING
  • Gas Spring

12 29CM830

  • 29CM830 - SCREW HEX

13 6588293

  • 6588293 - BUSHING

14 1EM80

  • 1EM80 - WASHER PLAIN

15 43DM8

  • 43DM8 - NUT FLANGED HEX

16 6554274

  • 6554274 - SEAL BULK/FT 9
  • bulk - sold per foot

17 6589032

  • 6589032 - ANGLE

18 6589033

  • 6589033 - ANGLE

19 1CM890

  • 1CM890 - BOLT

20 4DM8

  • 4DM8 - NUT HEX

21 6588648

  • 6588648 - SUPPORT

22 6588070

  • 6588070 - COVER

23 6900669

  • 6900669 - TAPE
  • bulk - sold per foot - Was 6665212

24 515069

  • 515069 - GROMMET

25 29CM1225

  • 29CM1225 - BOLT

26 51DM12

  • 51DM12 - NUT

27 26GM10020

  • 26GM10020 - SCREW HEX THRDRLG

28 6596915

  • 6596915 - INSULATION

29 6588542

  • 6588542 - INSULATION

30 6628772

  • 6628772 - INSULATION
  • Fastens to inside of Ref. 2

31 6628773

  • 6628773 - INSULATION

32 26GM8016

  • 26GM8016 - SCREW SELF TAPPING
