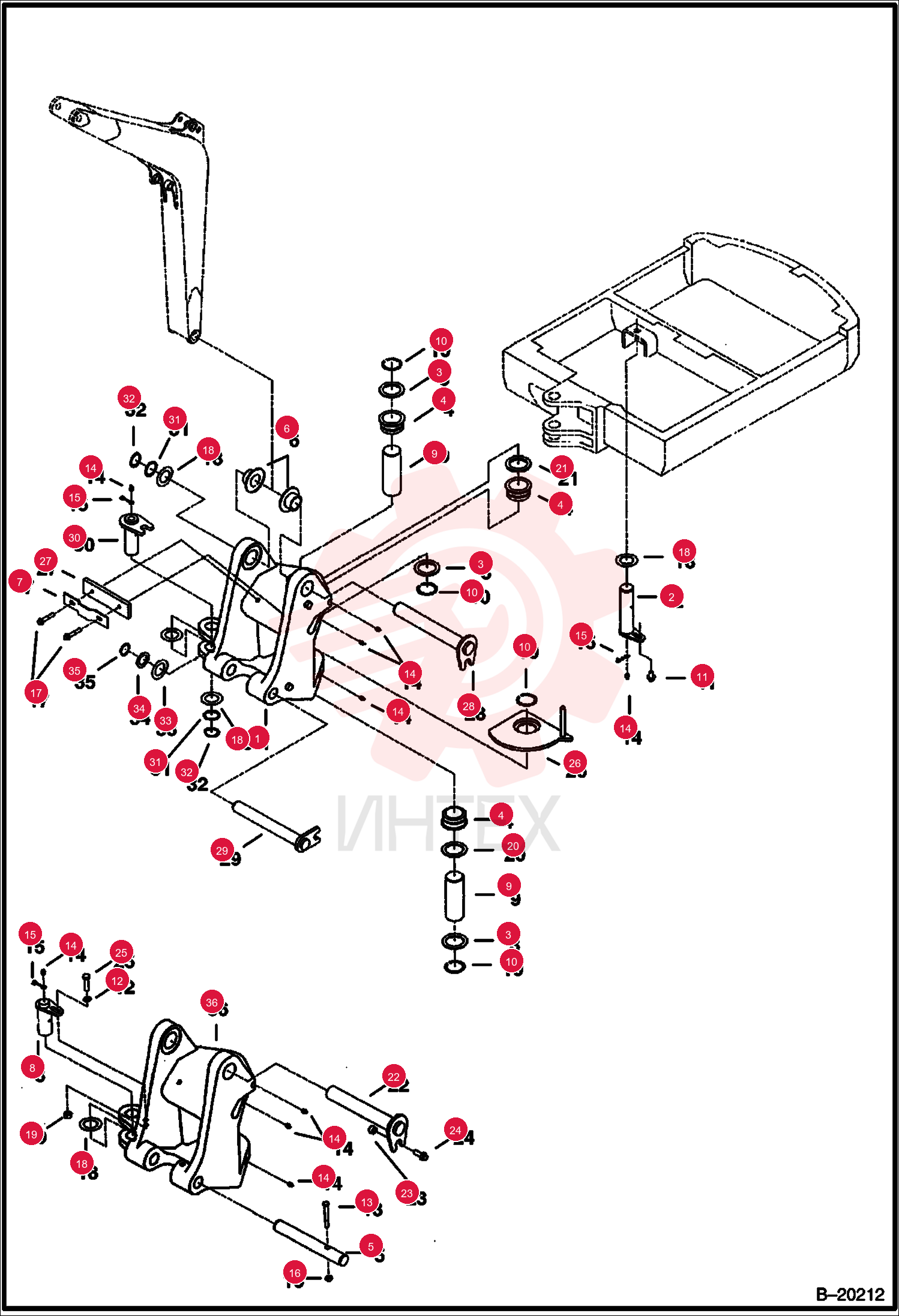

SWINGBRKT
1 6597197
- 6597197 - SWINGBRKT
- Swing
2 6587346
- 6587346 - PIN
3 6538893
- 6538893 - WASHER
4 6588095
- 6588095 - BUSHING
- WELD-ON
5 6539534
- 6539534 - PIN
6 6539528
- 6539528 - BUSHING
7 6589775
- 6589775 - CLAMP
- Hose
8 6588094
- 6588094 - PIN
9 6660274
- 6660274 - RING
- RETAINER
10 29CM1220
- 29CM1220 - BOLT
11 15EM120
- 15EM120 - WASHER
12 7CM1080
- 7CM1080 - SCREW HEX HD 10.9
13 10H25
- 10H25 - FTG GREASE STRAIGHT
14 6652943
- 6652943 - COVER
- grease fitting
15 53DM10
- 53DM10 - NUT HX THDLK PREAPPL
- Was 49DM00010B
16 1CM1055
- 1CM1055 - BOLT
17 6535312
- 6535312 - WASHER
- Swing cylinder
18 53DM12
- 53DM12 - NUT HX THDLK PREAPPL
- Was 49DM00012B
19 6588098
- 6588098 - WASHER
20 6588099
- 6588099 - WASHER
- .22" (5
- 5mm) thick
21 6588121
- 6588121 - WASHER
- .24"(6
- 0mm) thick
22 6588122
- 6588122 - WASHER
- .26"(6
- 5mm) thick
23 6588124
- 6588124 - PIN
24 6586327
- 6586327 - TUBE
25 29CM1235
- 29CM1235 - BOLT
26 4CM1245
- 4CM1245 - SCREW
- Was 1CM1245
27 6589641
- 6589641 - SUPPORT
- Hose
28 6589776
- 6589776 - FOAM
29 6597198
- 6597198 - PIN
- PIVOT SWING
30 6597200
- 6597200 - PIN
31 6597202
- 6597202 - PIN
32 6666549
- 6666549 - WASHER
33 6665618
- 6665618 - RING
- SNAP
34 6535313
- 6535313 - WASHER
35 6534111
- 6534111 - WASHER
- 5
36 6534154
- 6534154 - RING
- RETAINER
