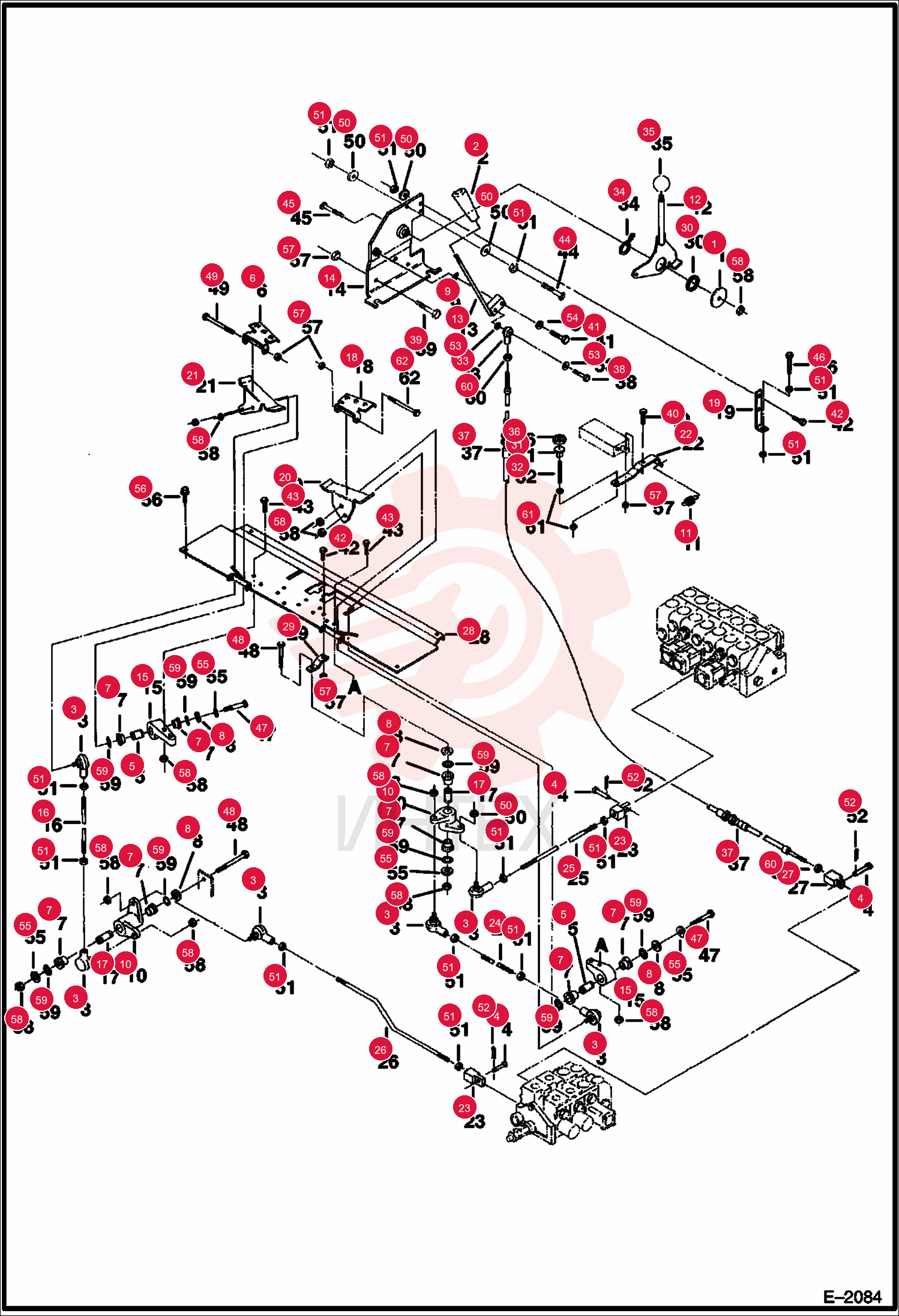

WASHE
1 616789
- 616789 - WASHE
2 6510093
- 6510093 - KNOB
- Blade lever
3 6536531
- 6536531 - BRG ROD E
4 6536543
- 6536543 - PIN
5 6536545
- 6536545 - SLEEVE
6 6536798
- 6536798 - PLATE
7 6536801
- 6536801 - BUSHING
8 6536802
- 6536802 - WASHER
9 6536803
- 6536803 - WASHER
- Wave
10 6536831
- 6536831 - BELLCRANK
- Bellcrank
11 6537423
- 6537423 - LEVER
- throttle
12 6537426
- 6537426 - LEVER
- Blade
13 6537481
- 6537481 - MOUNT
14 6537485
- 6537485 - ROD
15 6537487
- 6537487 - SLEEVE
16 6588792
- 6588792 - PLATE
17 6537647
- 6537647 - ANGLE
18 6589586
- 6589586 - PEDAL
19 6589587
- 6589587 - PEDAL
20 6539557
- 6539557 - LEVER
21 6539696
- 6539696 - LINK
22 6539697
- 6539697 - ROD
23 6539698
- 6539698 - ROD
24 6539710
- 6539710 - ROD
25 6595881
- 6595881 - ROD
- threaded on both ends
26 6539816
- 6539816 - LINK
27 6588561
- 6588561 - PLATE
- FLOOR
- Control mounting
28 6539900
- 6539900 - BRACKET
29 6567962
- 6567962 - WASHER
- Friction
30 6583780
- 6583780 - KNOB
- 2 speed
31 6539784
- 6539784 - ROD
32 6593671
- 6593671 - CONNECTOR
33 6630945
- 6630945 - WASHER
- Wave
34 6631564
- 6631564 - KNOB
- Speed control
35 6647642
- 6647642 - CAP
36 6657715
- 6657715 - CABLE
37 4CM620
- 4CM620 - BOLT
- Was 1CM620
38 4CM816
- 4CM816 - SCREW HEX HD 8.8
- Was 1CM816
39 1CM835
- 1CM835 - BOLT
40 1CM1016
- 1CM1016 - SCREW
41 1CM1020
- 1CM1020 - SCREW HEX CAP
42 1CM1025
- 1CM1025 - BOLT
43 1CM1035
- 1CM1035 - BOLT
44 1CM1040
- 1CM1040 - BOLT
45 1CM1050
- 1CM1050 - SCREW
46 1CM1055
- 1CM1055 - BOLT
47 1CM1070
- 1CM1070 - BOLT
48 1CM8100
- 1CM8100 - SCREW HEX CAP
49 15EM100
- 15EM100 - WASHER
- - Order the following parts
- Ref. 1 & 11 (3)
- Ref. 12
- 14
- 15 & 17 (3)
- Ref. 20 (2) & 21 (2)
- Ref. 23 & 24 (4)
- Ref. 30 & 31 - Was 6537432
50 4DM10
- 4DM10 - NUT HEX
51 1F212
- 1F212 - PIN
52 15EM60
- 15EM60 - WASHER
53 17EM100
- 17EM100 - WASHER
54 27E6
- 27E6 - WASHER HARDEN PLAIN
55 26GM10020
- 26GM10020 - SCREW HEX THRDRLG
56 53DM8
- 53DM8 - NUT HX THDLK PREAPPL
- Was 49DM00008B
57 53DM10
- 53DM10 - NUT HX THDLK PREAPPL
- Was 49DM00010B
58 58K015
- 58K015 - O-RING 10
59 62D4
- 62D4 - NUT HEX FINISHED GR5
60 61D8
- 61D8 - NUT 5
- Was 62D000008B
61 1CM890
- 1CM890 - BOLT
