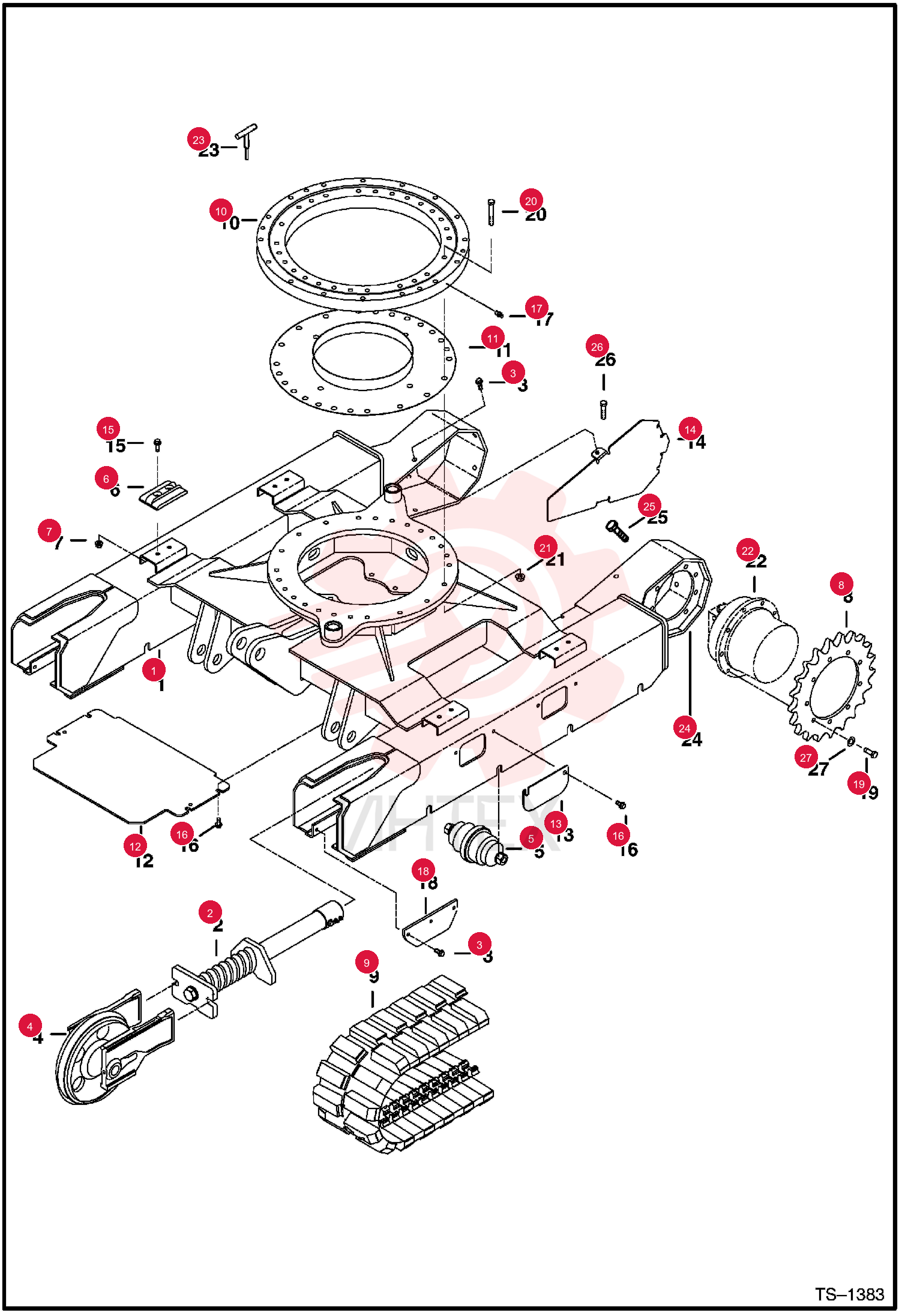

SCREW SELF TAPPING 26GM10030 (3)
1 26GM10030
- 26GM10030 - SCREW SELF TAPPING
- - Used with steel tracks only
2 6534234
- 6534234 - PLATE
- SLIDE
- track slide
3 51DM10
- 51DM10 - NUT HX THDLK PREAPPL
4 6814137
- 6814137 - SPROCKET
- MOTOR DRIVE TRACK
- 21 tooth - 9 hole - Was 6811940
5 6655124
- 6655124 - RING
- SLEW
- 96 teeth on swing gear
6 6535548
- 6535548 - SHIELD
7 6597346
- 6597346 - COVER
8 6596723
- 6596723 - COVER
9 6807599
- 6807599 - COVER
10 6596689
- 6596689 - COVER
11 29CM1030
- 29CM1030 - SCREW FLGD HEX CAP
12 26GM10020
- 26GM10020 - SCREW HEX THRDRLG
- Self tapping
13 6596396
- 6596396 - PLATE
- guide - steel track
14 55CM1235
- 55CM1235 - BOLT
- Was 1CM01235B
15 7CM1280
- 7CM1280 - BOLT
16 51DM12
- 51DM12 - NUT
17 6586495
- 6586495 - PIN
- alignment -service tool for aligning swing bearing when upperstructure has been removed from undercarriage
18 6596688
- 6596688 - PLATE
- Travel motor mount - weld on
19 1CM1225
- 1CM1225 - BOLT
20 26GM10030
- 26GM10030 - SCREW SELF TAPPING
- for cover 6807599
21 26GM10025
- 26GM10025 - SCREW HEX THRDRLG
- for cover 6596689
22 18EM1224
- 18EM1224 - WASHER HARDENED PLN
