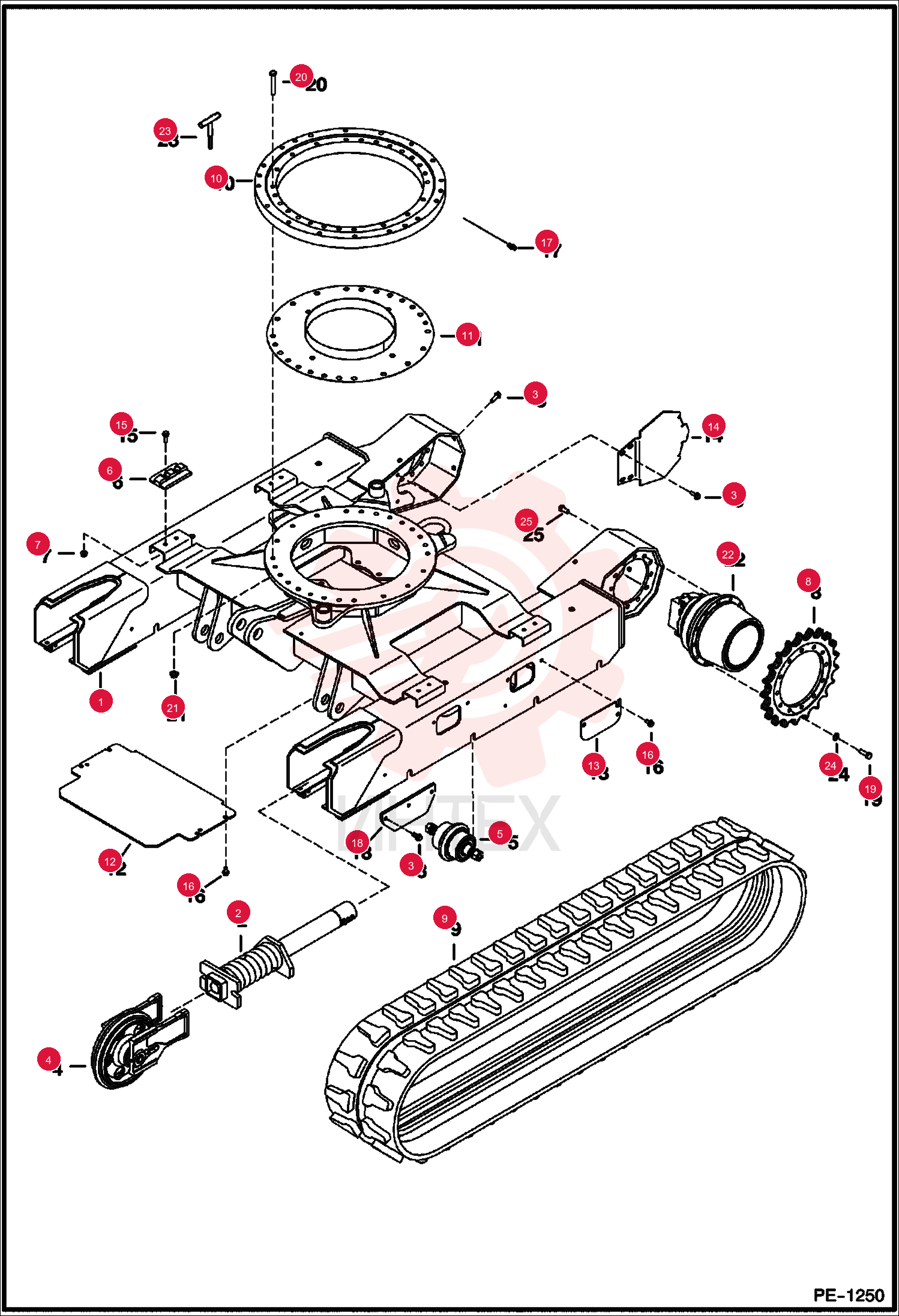

SCREW SELF TAPPING
1 26GM10030
- 26GM10030 - SCREW SELF TAPPING
2 6807916
- 6807916 - ROLLER ASSEMBLY
- - rubber track
3 6534234
- 6534234 - PLATE
- SLIDE
- track slide
4 51DM10
- 51DM10 - NUT HX THDLK PREAPPL
5 6814137
- 6814137 - SPROCKET
- MOTOR DRIVE TRACK
- 21 tooth - 9 hole - Was 6811940
6 6813372SUB
- 6813372SUB - SPROCKET
- MOTOR DRIVE TRACK
- PAINTED
- 12 hole - Was 6811939
7 6655124
- 6655124 - RING
- SLEW
- swing - 96 teeth on swing gear
8 6535548
- 6535548 - SHIELD
9 6597346
- 6597346 - COVER
10 6596723
- 6596723 - COVER
11 7115357
- 7115357 - COVER
12 29CM1030
- 29CM1030 - SCREW FLGD HEX CAP
13 26GM10020
- 26GM10020 - SCREW HEX THRDRLG
- Self tapping
14 6596396
- 6596396 - PLATE
- guide - steel track
15 55CM1235
- 55CM1235 - BOLT
16 55CM1235
- 55CM1235 - BOLT
17 7CM1280
- 7CM1280 - BOLT
18 51DM12
- 51DM12 - NUT
19 6586495
- 6586495 - PIN
- alignment -service tool for aligning swing bearing when upperstructure has been removed from undercarriage
20 18EM1224
- 18EM1224 - WASHER HARDENED PLN
21 18EM1224
- 18EM1224 - WASHER HARDENED PLN
22 55CM1225
- 55CM1225 - BOLT
23 55CM1225
- 55CM1225 - BOLT
