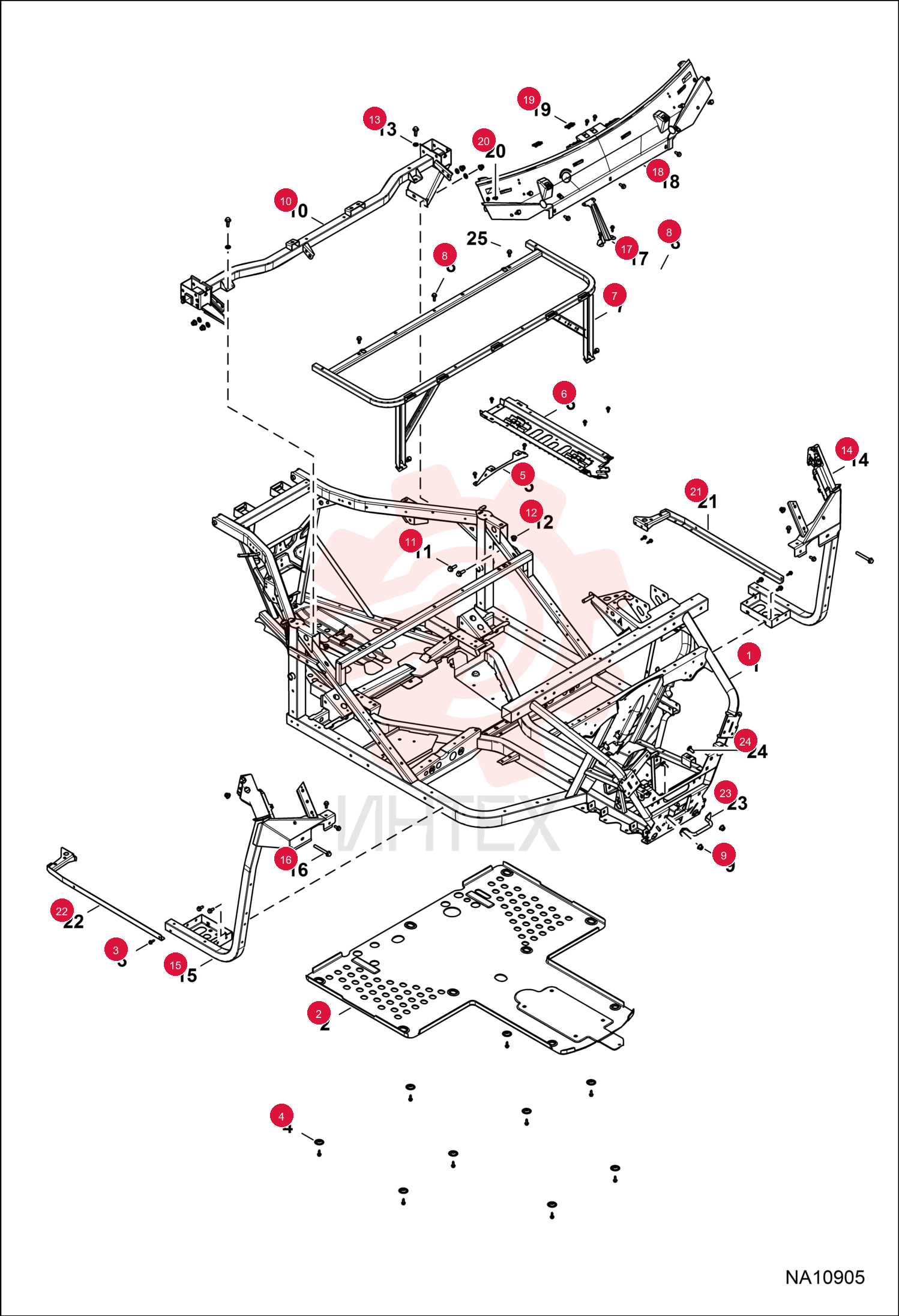

FRAME 7258280 (1)

FRAME 7258280 (1)

FRAME 7258280 (1)

1 7258280

  • 7258280 - FRAME

2 7025550

  • 7025550 - PLATE
  • SKID

3 7016645

  • 7016645 - SCREW

4 7016753

  • 7016753 - WASHER

5 7258281

  • 7258281 - BRACKET

6 7258282

  • 7258282 - PANEL

7 7258283

  • 7258283 - FRAME

8 7016175

  • 7016175 - BOLT

9 7016520

  • 7016520 - NUT

10 7257103

  • 7257103 - SUPPORT

11 7016642

  • 7016642 - SCREW

12 7016518

  • 7016518 - NUT

13 7025509

  • 7025509 - WASHER
  • FLAT

14 7257100

  • 7257100 - SUPPORT
  • FLOOR LH BLK

15 7257101

  • 7257101 - SUPPORT
  • FLOOR RH BLK

16 7025497

  • 7025497 - BOLT
  • FLANGE

17 7258285

  • 7258285 - BRACKET
  • CENTERING

18 7252830

  • 7252830 - SUPPORT
  • WINDOW

19 7023820

  • 7023820 - NUT

20 7016585

  • 7016585 - RIVET
  • TUFLOK
  • .315
  • .325X.787

21 7025528

  • 7025528 - PANEL
  • LOWER

22 7025529

  • 7025529 - PANEL
  • LOWER

23 7025526

  • 7025526 - HOOK
  • TOW

24 7024089

  • 7024089 - BOLT
  • CARRIAGE
