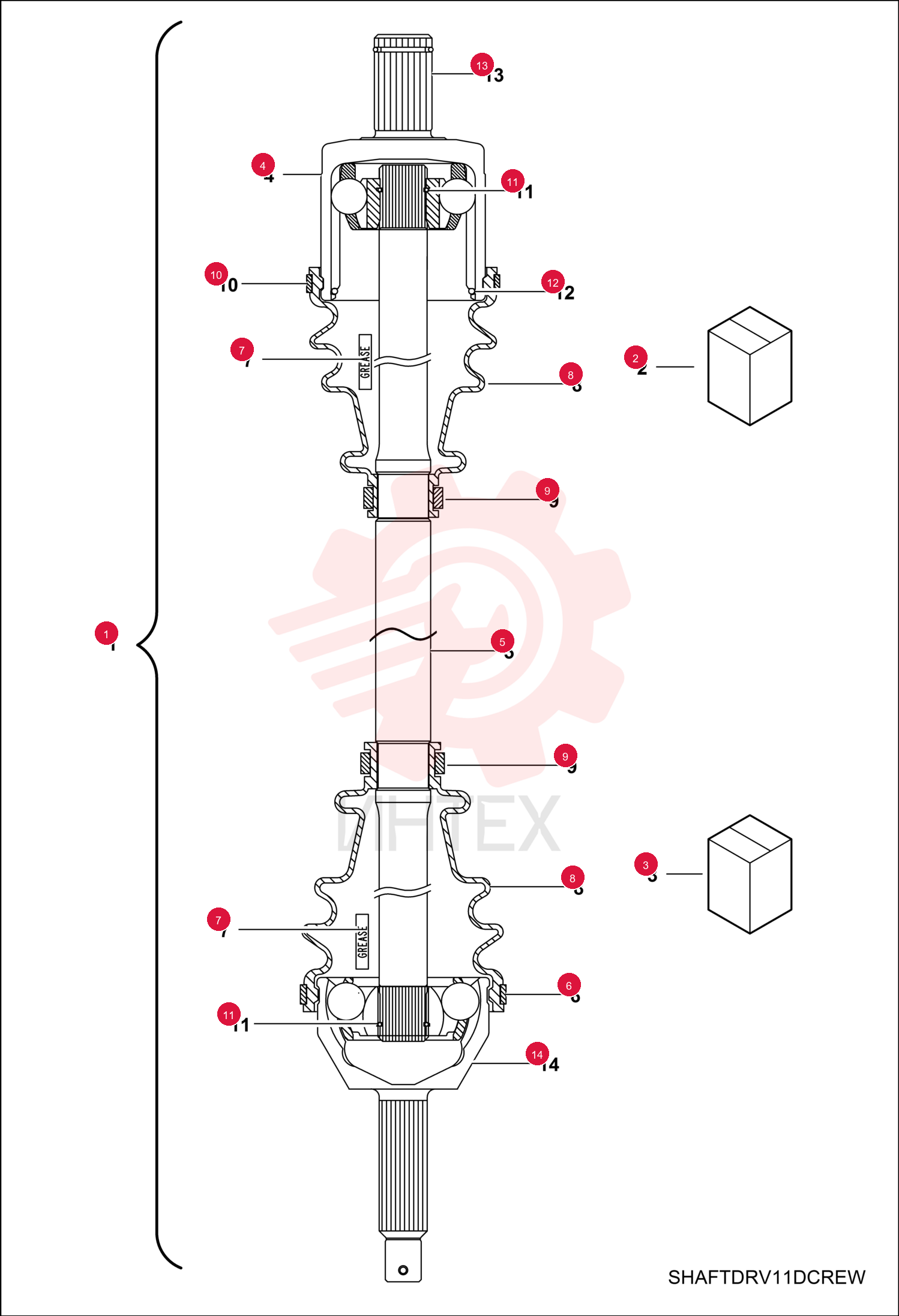

SHAFT, FRONT, HALF 7016669 (3)

SHAFT, FRONT, HALF 7016669 (3)

SHAFT, FRONT, HALF 7016669 (3)

1 7016669

  • 7016669 - SHAFT
  • FRONT
  • HALF
  • W/Ref. 2-14

2 7017568

  • 7017568 - KIT
  • BOOT PLUNGING
  • gear side - W/clamps & grease - Ref. 7-10

3 7017566

  • 7017566 - KIT
  • BOOT CV JOINT
  • wheel side - W/clamps & grease - Ref. 6-9

4 7017557

  • 7017557 - KNUCKLE
  • JOINT PLUNGING

5 7018918

  • 7018918 - SHAFT

6 7017489

  • 7017489 - CLAMP

7 7017543

  • 7017543 - GREASE

8 7017465

  • 7017465 - BOOT

9 7017491

  • 7017491 - CLAMP

10 7017490

  • 7017490 - CLAMP

11 7017486

  • 7017486 - RING
  • CIRCLIP 1.8X22.2

12 7017487

  • 7017487 - RING
  • CIRCLIP 2.0X61.7

13 7017485

  • 7017485 - RING
  • CIRCLIP

14 7018919

  • 7018919 - KNUCKLE
  • CV
  • W/Ref. 11
