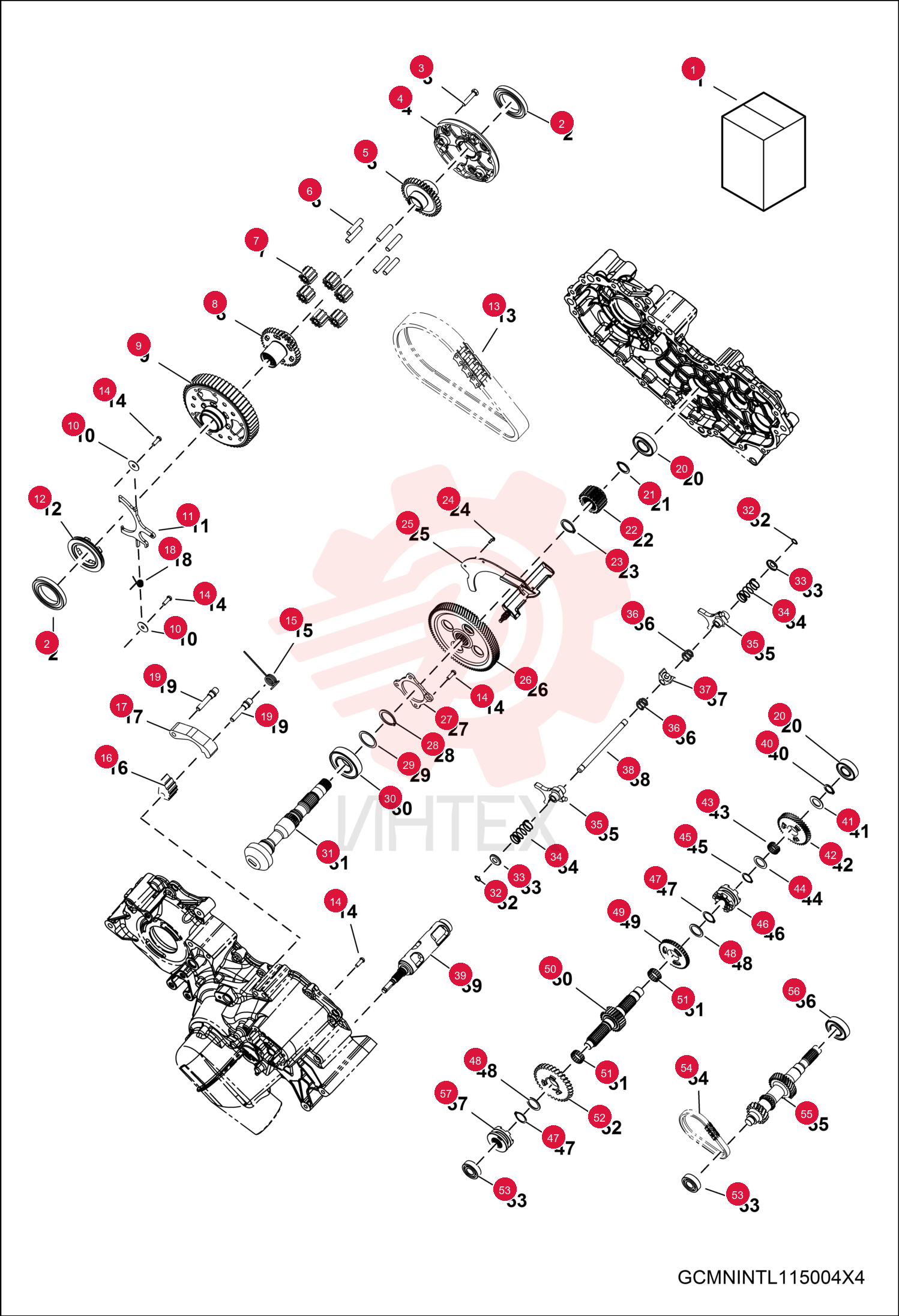

HOUSING, GEARCASE MAIN ASSY 7017424 (2)

HOUSING, GEARCASE MAIN ASSY 7017424 (2)

HOUSING, GEARCASE MAIN ASSY 7017424 (2)

1 7017424

  • 7017424 - HOUSING
  • GEARCASE MAIN ASSY
  • - Ref. 2-43 and Ref. 2-57 on this page

2 7017448

  • 7017448 - BEARING
  • BALL 50 X 80 X 10

3 7017677

  • 7017677 - SCREW

4 7017412

  • 7017412 - CARRIER
  • SUB ASSY

5 7017713

  • 7017713 - GEAR SIDE 36T SUB ASSEMBLY

6 7017623

  • 7017623 - PIN
  • DOWEL 10X45

7 7017411

  • 7017411 - GEAR
  • SUB ASSY

8 7017714

  • 7017714 - GEAR SIDE 36T DISCONNECT SUBASM

9 7017413

  • 7017413 - CARRIER
  • SUB ASSY

10 7017760

  • 7017760 - WASHER

11 7017526

  • 7017526 - FORK
  • PIVOT SHIFT REAR DIFF

12 7017516

  • 7017516 - KNUCKLE
  • DOG ENGAGEMENT

13 7017410

  • 7017410 - CHAIN
  • 3/8X1.25X86 PITCHES

14 7017683

  • 7017683 - SCREW

15 7017727

  • 7017727 - SPRING
  • TORSION

16 7017478

  • 7017478 - CAM
  • CHAIN TENSIONER

17 7017712

  • 7017712 - SHOE
  • CHAIN TENSIONER

18 7017724

  • 7017724 - SPRING
  • TORSION RETURN

19 7017622

  • 7017622 - PIN
  • DOWEL

20 7017442

  • 7017442 - BEARING

21 7017652

  • 7017652 - RING
  • SNAP

22 7017738

  • 7017738 - SPROCKET
  • 19T 1.25"
  • 19 teeth - 31
  • 8 mm (1.25")

23 7017663

  • 7017663 - RING
  • RETAINING

24 7017674

  • 7017674 - SCREW

25 7017606

  • 7017606 - DEFLECTOR
  • OIL

26 7017534

  • 7017534 - GEAR
  • OUTPUT 19T

27 7017500

  • 7017500 - COVER
  • CENTER DRIVE BEARING

28 7017653

  • 7017653 - RING
  • RETAINING

29 7017710

  • 7017710 - SHIM
  • 1.700 X 1.385

30 7017456

  • 7017456 - BEARING
  • BALL

31 7017625

  • 7017625 - PINION
  • 13T CENTER DRIVE

32 7017661

  • 7017661 - RING
  • RETAINING

33 7017765

  • 7017765 - WASHER
  • CUP

34 7017732

  • 7017732 - SPRING
  • COMP

35 7017706

  • 7017706 - FORK
  • SHIFT

36 7017731

  • 7017731 - SPRING
  • COMP

37 7017495

  • 7017495 - COLLAR
  • SHIFT

38 7255814

  • 7255814 - SHAFT
  • Was 7017642

39 7018866

  • 7018866 - DRUM
  • SHIFT

40 7017662

  • 7017662 - RING
  • RETAINING

41 7017754

  • 7017754 - WASHER

42 7018973

  • 7018973 - GEAR
  • HELICAL

43 7017455

  • 7017455 - BEARING
  • NEEDLE

44 7017752

  • 7017752 - WASHER

45 7017655

  • 7017655 - RING
  • RETAINING EXTERNAL 0.84

46 7017519

  • 7017519 - KNUCKLE
  • ENGAGEMENT DOG 6 FACE

47 7017654

  • 7017654 - RING
  • RETAINING

48 7017764

  • 7017764 - WASHER
  • THRUST

49 7017737

  • 7017737 - SPROCKET
  • 38T 6-FACE

50 7017700

  • 7017700 - SHAFT
  • REVERSE 26T

51 7017451

  • 7017451 - BEARING
  • NEEDLE

52 7017535

  • 7017535 - GEAR
  • 33T 6-FACE

53 7017449

  • 7017449 - BEARING
  • BALL 6203 C3 17X40X12

54 7017483

  • 7017483 - CHAIN
  • .25P X .40W X 50L

55 7017703

  • 7017703 - SHAFT
  • INPUT 31T

56 7017441

  • 7017441 - BEARING

57 7018867

  • 7018867 - KNUCKLE
  • ENGAGEMENT DOG
