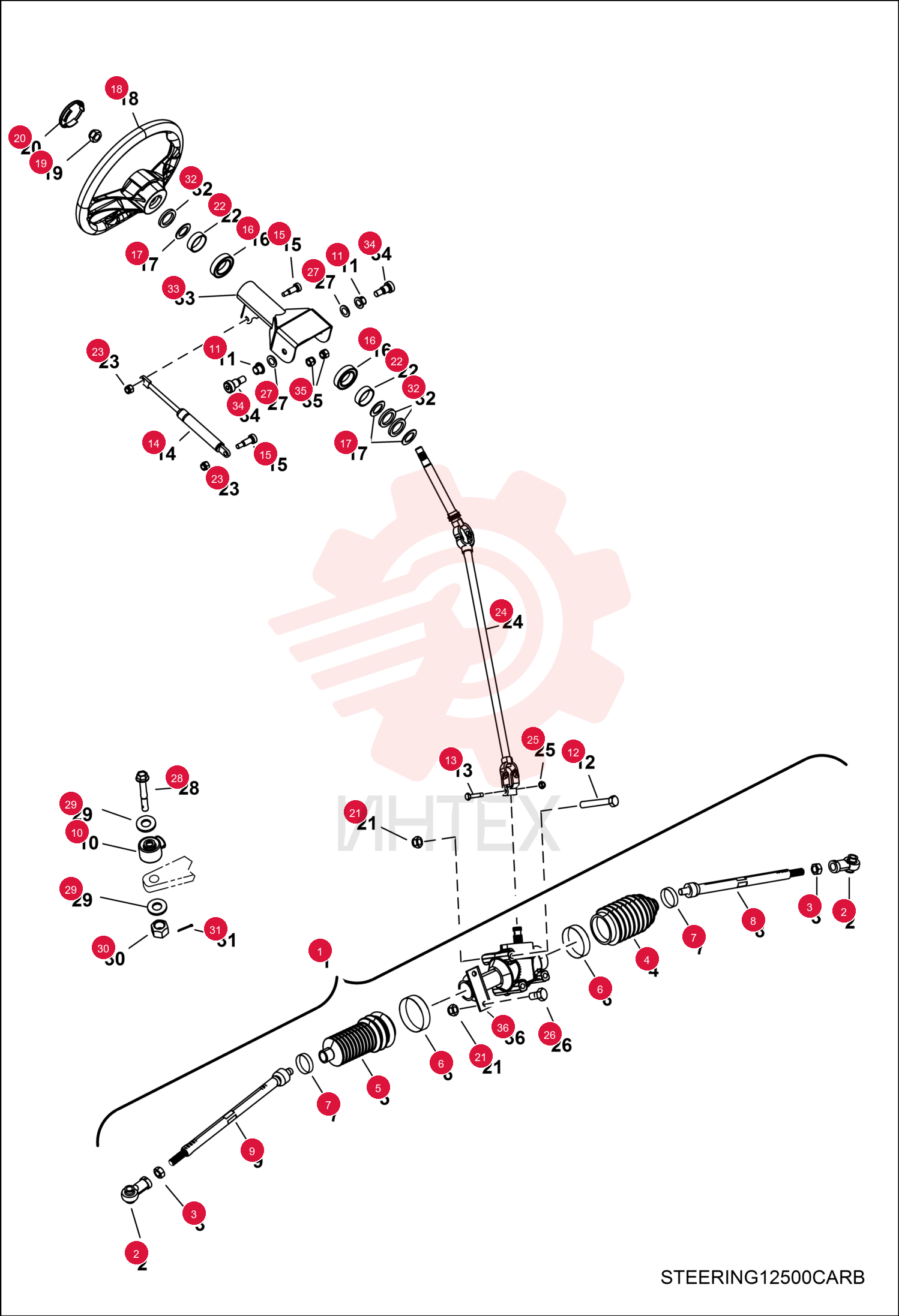

HOUSING, GEARBOX STEERING 7018670 (2)

HOUSING, GEARBOX STEERING 7018670 (2)

HOUSING, GEARBOX STEERING 7018670 (2)

1 7018670

  • 7018670 - HOUSING
  • GEARBOX STEERING
  • Ref. 2-9 & 36

2 7016587

  • 7016587 - END
  • ROD TIE
  • Was 7023238

3 7016504

  • 7016504 - NUT

4 7023235

  • 7023235 - KIT BOOT RACK LH
  • W/Ref. 6 & 7

5 7023236

  • 7023236 - KIT BOOT RACK RH
  • W/Ref. 6 & 7

6 7023237

  • 7023237 - BOOT
  • END ROD TIE

7 7016231

  • 7016231 - BUSHING
  • PEDAL PIVOT

8 7016178

  • 7016178 - BOLT

9 7016594

  • 7016594 - SCREW

10 7023373

  • 7023373 - SHOCK
  • DAMPER

11 7016179

  • 7016179 - BOLT

12 7023363

  • 7023363 - BEARING
  • BALL

13 7023375

  • 7023375 - WASHER

14 7023986

  • 7023986 - HUB
  • MOUNTING
  • for black model W/leather steering wheel - includes hub
  • screws (5) & allen wrench

15 7023809

  • 7023809 - KIT
  • WHEEL STEERING LEATHER
  • NLA - wheel W/cap - for black model - Also order 7023986 wheel hub for new installation. - Was 7023809

16 7016847

  • 7016847 - WHEEL
  • STRG
  • 381 mm (15") - for std model

17 7016522

  • 7016522 - NUT

18 7016277

  • 7016277 - CAP
  • STEERING WHEEL
  • BOBCAT
  • for std models

19 7016526

  • 7016526 - NUT

20 7023364

  • 7023364 - SPACER
  • SHAFT STEERING

21 7016505

  • 7016505 - NUT

22 7023353

  • 7023353 - SHAFT
  • STEERING TILT
  • lower - W/joints

23 7016528

  • 7016528 - NUT

24 7016176

  • 7016176 - BOLT

25 7016749

  • 7016749 - WASHER

26 7016167

  • 7016167 - BOLT

27 7016754

  • 7016754 - WASHER

28 7016519

  • 7016519 - NUT

29 7016541

  • 7016541 - PIN
  • COTTER

30 7023374

  • 7023374 - WASHER

31 7023376

  • 7023376 - COLUMN
  • STEERING TILT

32 7016149

  • 7016149 - BOLT

33 7016499

  • 7016499 - NUT
