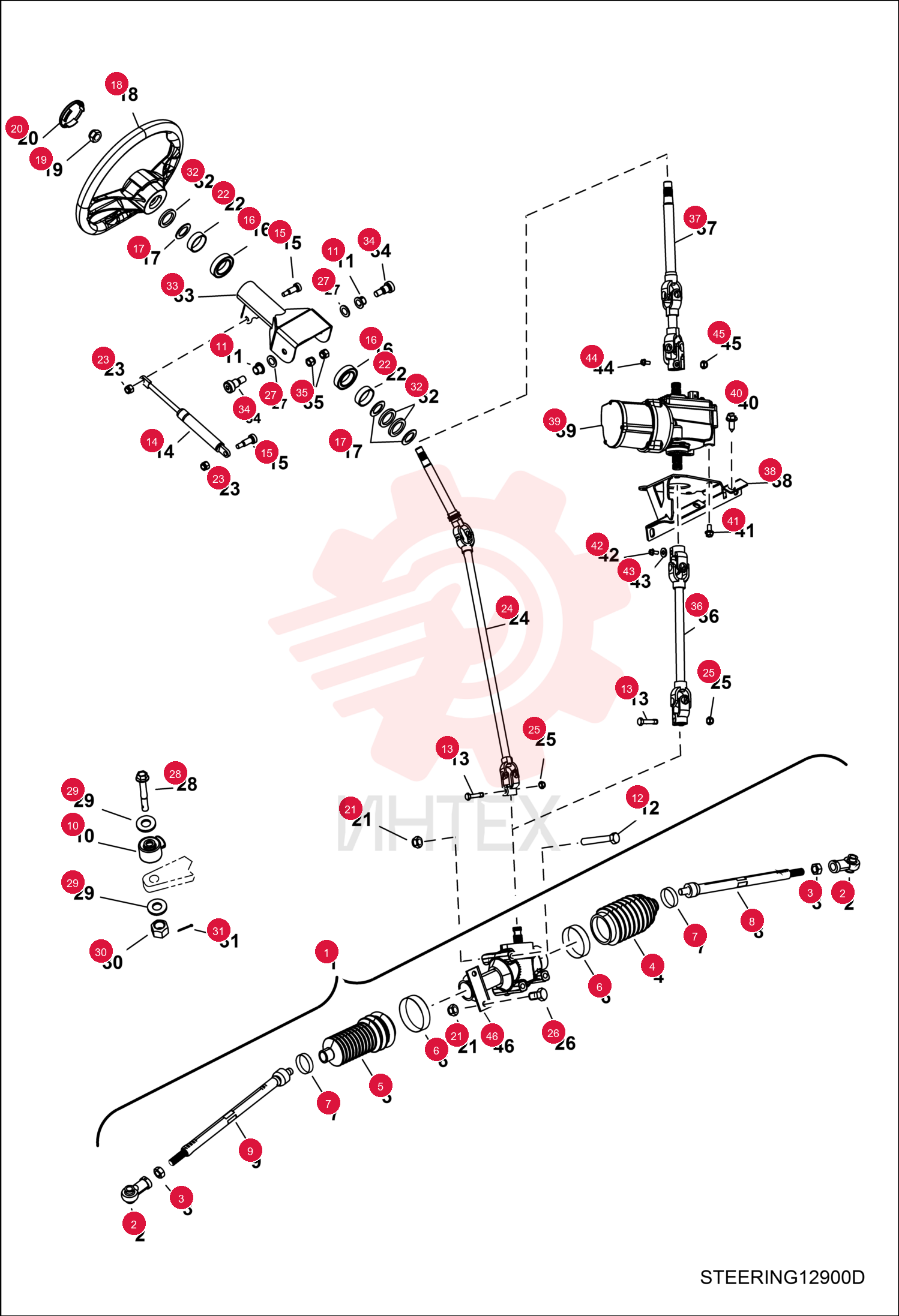

HOUSING, GEARBOX STEERING 7018670 (4)

HOUSING, GEARBOX STEERING 7018670 (4)

HOUSING, GEARBOX STEERING 7018670 (4)

1 7018670

  • 7018670 - HOUSING
  • GEARBOX STEERING
  • Ref. 2-9 & 46

2 7016587

  • 7016587 - END
  • ROD TIE

3 7016504

  • 7016504 - NUT

4 7023235

  • 7023235 - KIT BOOT RACK LH
  • W/Ref. 6 & 7

5 7023236

  • 7023236 - KIT BOOT RACK RH
  • W/Ref. 6 & 7

6 7023237

  • 7023237 - BOOT
  • END ROD TIE

7 7016231

  • 7016231 - BUSHING
  • PEDAL PIVOT

8 7016178

  • 7016178 - BOLT

9 7016594

  • 7016594 - SCREW

10 7023373

  • 7023373 - SHOCK
  • DAMPER

11 7016179

  • 7016179 - BOLT

12 7023363

  • 7023363 - BEARING
  • BALL

13 7023375

  • 7023375 - WASHER

14 7016847

  • 7016847 - WHEEL
  • STRG
  • 381 mm (15")

15 7016522

  • 7016522 - NUT

16 7016277

  • 7016277 - CAP
  • STEERING WHEEL
  • BOBCAT

17 7016526

  • 7016526 - NUT

18 7023364

  • 7023364 - SPACER
  • SHAFT STEERING

19 7016505

  • 7016505 - NUT

20 7023353

  • 7023353 - SHAFT
  • STEERING TILT
  • lower - W/joints

21 7016528

  • 7016528 - NUT

22 7016176

  • 7016176 - BOLT

23 7016749

  • 7016749 - WASHER

24 7016167

  • 7016167 - BOLT

25 7016754

  • 7016754 - WASHER

26 7016519

  • 7016519 - NUT

27 7016541

  • 7016541 - PIN
  • COTTER

28 7023374

  • 7023374 - WASHER

29 7023376

  • 7023376 - COLUMN
  • STEERING TILT

30 7016149

  • 7016149 - BOLT

31 7016499

  • 7016499 - NUT

32 7023464

  • 7023464 - SHAFT
  • STEERING LOWER EPS

33 7023465

  • 7023465 - SHAFT
  • STEERING UPPER

34 7023515

  • 7023515 - MOUNT
  • EPAS BLACK

35 7023471

  • 7023471 - ACTUATOR
  • STEERING POWER

36 7016175

  • 7016175 - BOLT

37 7016165

  • 7016165 - BOLT

38 7016159

  • 7016159 - BOLT

39 7016769

  • 7016769 - WASHER
  • SPRING LOCK

40 7021995

  • 7021995 - SCREW

41 7016524

  • 7016524 - NUT
