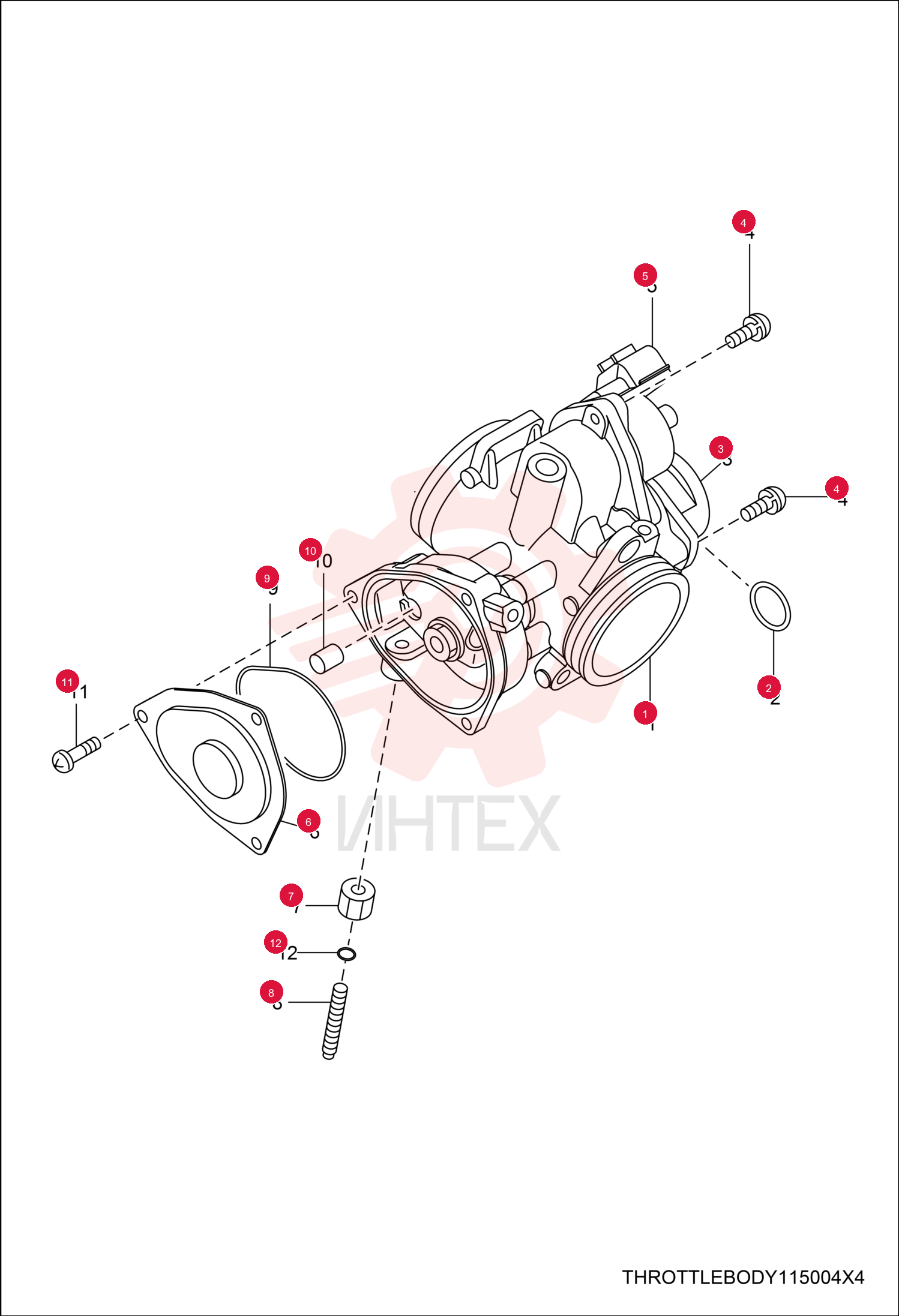

HOUSING, THROTTLE ASSY 7017434

HOUSING, THROTTLE ASSY 7017434

HOUSING, THROTTLE ASSY 7017434

1 7017434

  • 7017434 - HOUSING
  • THROTTLE ASSY
  • W/Ref. 2-5 & 8

2 7017434

  • 7017434 - HOUSING
  • THROTTLE ASSY
  • Was 7248529

3 7018965

  • 7018965 - ORING

4 7018967

  • 7018967 - SENSOR
  • THROTTLE POSITION

5 7017671

  • 7017671 - SCREW

6 7017598

  • 7017598 - MOTOR
  • ISC STEPPING

7 7018966

  • 7018966 - COVER
  • Was 7248530

8 7018966

  • 7018966 - COVER

9 7017600

  • 7017600 - NUT

10 7017680

  • 7017680 - SCREW
  • ADJUST

11 7018963

  • 7018963 - ORING

12 7016421

  • 7016421 - GUIDE
  • CABLE

13 7018964

  • 7018964 - SCREW

14 7017609

  • 7017609 - O-RING
