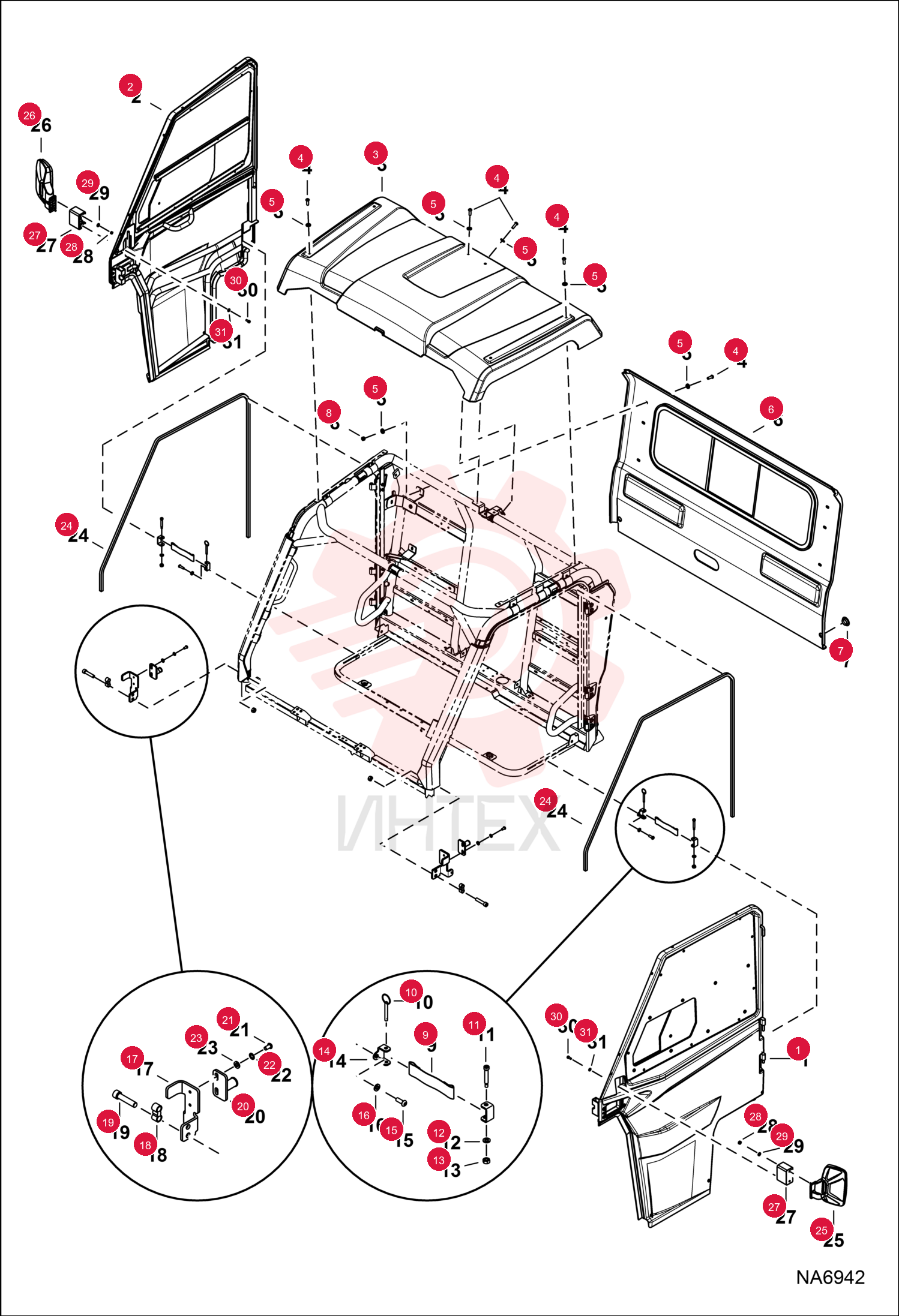

PANEL, ROOF 7025008 (3)

PANEL, ROOF 7025008 (3)

PANEL, ROOF 7025008 (3)

1 7025008

  • 7025008 - PANEL
  • ROOF

2 7026596

  • 7026596 - BOLT

3 7026618

  • 7026618 - WASHER
  • FLAT

4 7025020

  • 7025020 - WINDOW
  • REAR

5 7025015

  • 7025015 - PANEL
  • REAR

6 7026599

  • 7026599 - PLUG

7 40DM8

  • 40DM8 - NUT

8 7326932

  • 7326932 - STRAP DOOR
  • Length 4.25"

9 7026611

  • 7026611 - STRAP
  • Length 7.5"

10 7026612

  • 7026612 - PIN

11 17C436

  • 17C436 - BOLT

12 25E13

  • 25E13 - WASHER FLAT PLAIN

13 59D4

  • 59D4 - NUT LOCK HEX PT

14 7026610

  • 7026610 - BRACKET

15 7025054

  • 7025054 - PLATE
  • LATCH
  • RH

16 7025035

  • 7025035 - PLATE
  • LATCH
  • LH

17 7025037

  • 7025037 - SPACER
  • ROPS

18 7026615

  • 7026615 - BOLT

19 7025036

  • 7025036 - PIN
  • LATCH

20 7026614

  • 7026614 - BOLT

21 11EM60

  • 11EM60 - WASHER

22 7027114

  • 7027114 - WASHER
  • FLAT

23 7026601

  • 7026601 - SEAL
  • DOOR

24 7027492

  • 7027492 - MIRROR
  • SIDE LH

25 7027493

  • 7027493 - MIRROR
  • SIDE RH

26 7027494

  • 7027494 - BLOCK
  • MIRROR

27 1DM6

  • 1DM6 - NUT
  • Was 4DM6

28 15EM60

  • 15EM60 - WASHER

29 27CM510

  • 27CM510 - SCREW HX SOC HD CAP

30 15EM50

  • 15EM50 - WASHER
