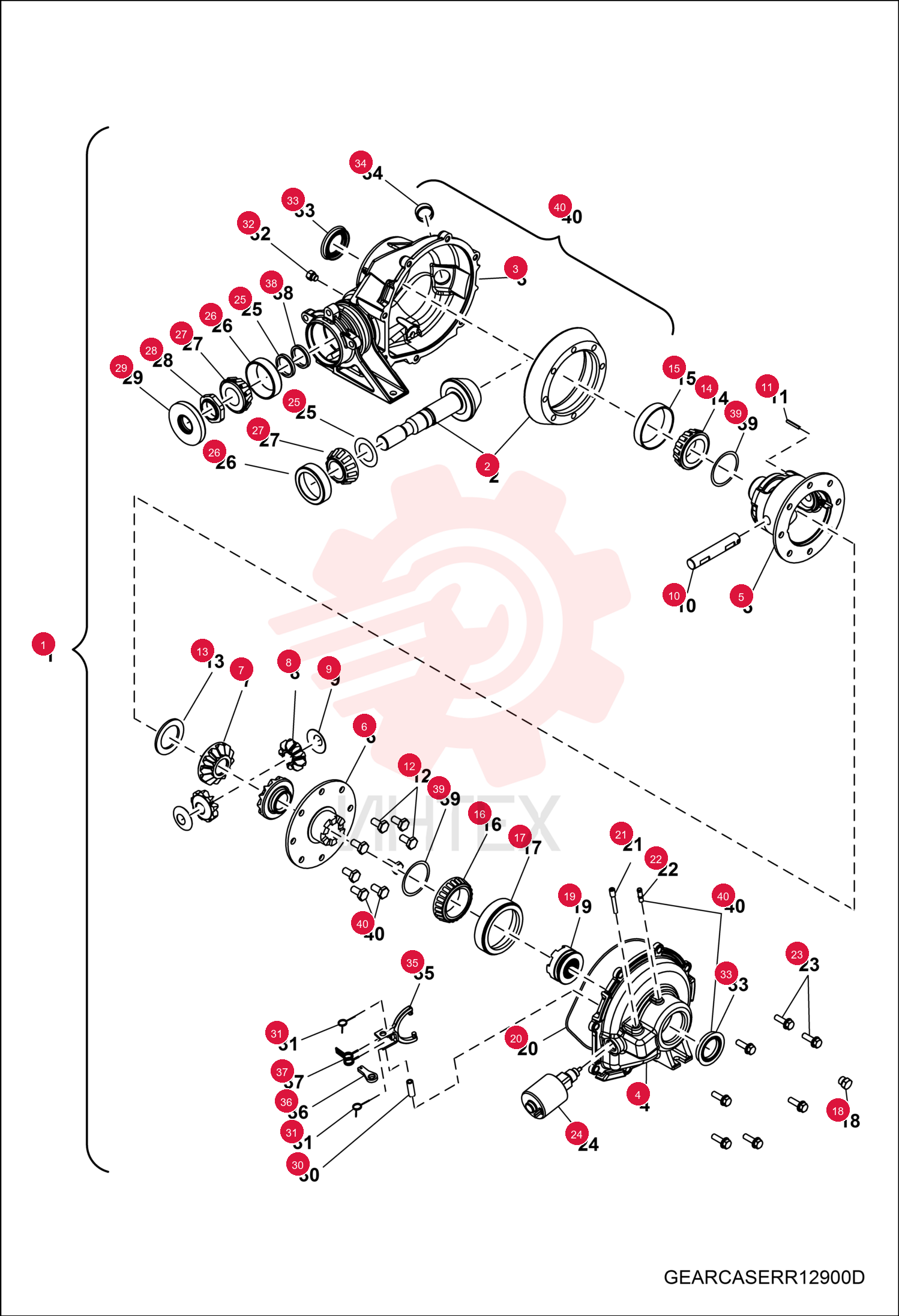

DIFFERENTIAL, REAR 7023462 (2)

DIFFERENTIAL, REAR 7023462 (2)

DIFFERENTIAL, REAR 7023462 (2)

1 7023462

  • 7023462 - DIFFERENTIAL
  • REAR
  • complete - Ref. 2-39

2 7017426

  • 7017426 - GEAR
  • HYPOID ASSY

3 7023467

  • 7023467 - HOUSING
  • CARRIER

4 7020264

  • 7020264 - COVER
  • CARRIER

5 7017482

  • 7017482 - HOUSING
  • CASE HALF DIFF

6 7017502

  • 7017502 - COVER
  • HALF DIFF CASE 026DC104

7 7017542

  • 7017542 - GEAR
  • SIDE DIFF

8 7017539

  • 7017539 - GEAR
  • PINION MATE DIFF

9 7017768

  • 7017768 - WASHER
  • THRUST

10 7017624

  • 7017624 - PIN
  • CROSS DIFF

11 7017627

  • 7017627 - PIN
  • ROLL DIFF

12 7017463

  • 7017463 - BOLT

13 7017767

  • 7017767 - WASHER
  • THRUST

14 7017457

  • 7017457 - BEARING
  • CONE
  • DIFF

15 7017460

  • 7017460 - BEARING
  • DIFF

16 7017665

  • 7017665 - ROLLER
  • BEARING

17 7017504

  • 7017504 - CUP
  • BEARING

18 7020303

  • 7020303 - PLUG
  • FILL

19 7020301

  • 7020301 - GEAR
  • CLUTCH

20 7017617

  • 7017617 - O-RING

21 7017626

  • 7017626 - PIN
  • LOCK ASSY

22 7017748

  • 7017748 - VENT
  • TUBE

23 7017464

  • 7017464 - BOLT
  • FLANGE

24 7020268

  • 7020268 - SOLENOID
  • DIFF LOCK

25 7017589

  • 7017589 - KIT
  • SPACER

26 7017459

  • 7017459 - BEARING
  • CUP
  • PINION

27 7017458

  • 7017458 - BEARING
  • CONE
  • PINION

28 7017605

  • 7017605 - NUT

29 7017692

  • 7017692 - SEAL
  • OIL PINION

30 7017476

  • 7017476 - BUSHING
  • LOCK PIN

31 7017735

  • 7017735 - SPRING
  • RETURN SHIFT

32 7017636

  • 7017636 - PLUG
  • DRAIN

33 7017693

  • 7017693 - SEAL
  • OIL SHAFT

34 7020313

  • 7020313 - PLUG

35 7017772

  • 7017772 - YOKE
  • SHIFT

36 7017590

  • 7017590 - LEVER
  • SHIFT

37 7017734

  • 7017734 - SPRING
  • LEVER SHIFT

38 7017718

  • 7017718 - SPACER
  • PINION

39 7017574

  • 7017574 - KIT
  • DIFFERENTIAL SHIM

40 7023468

  • 7023468 - KIT
  • TRANSMISSION HOUSING
  • W/Ref. 2
  • 3
  • 12
  • 22
  • 25-29
  • 33 & 38
