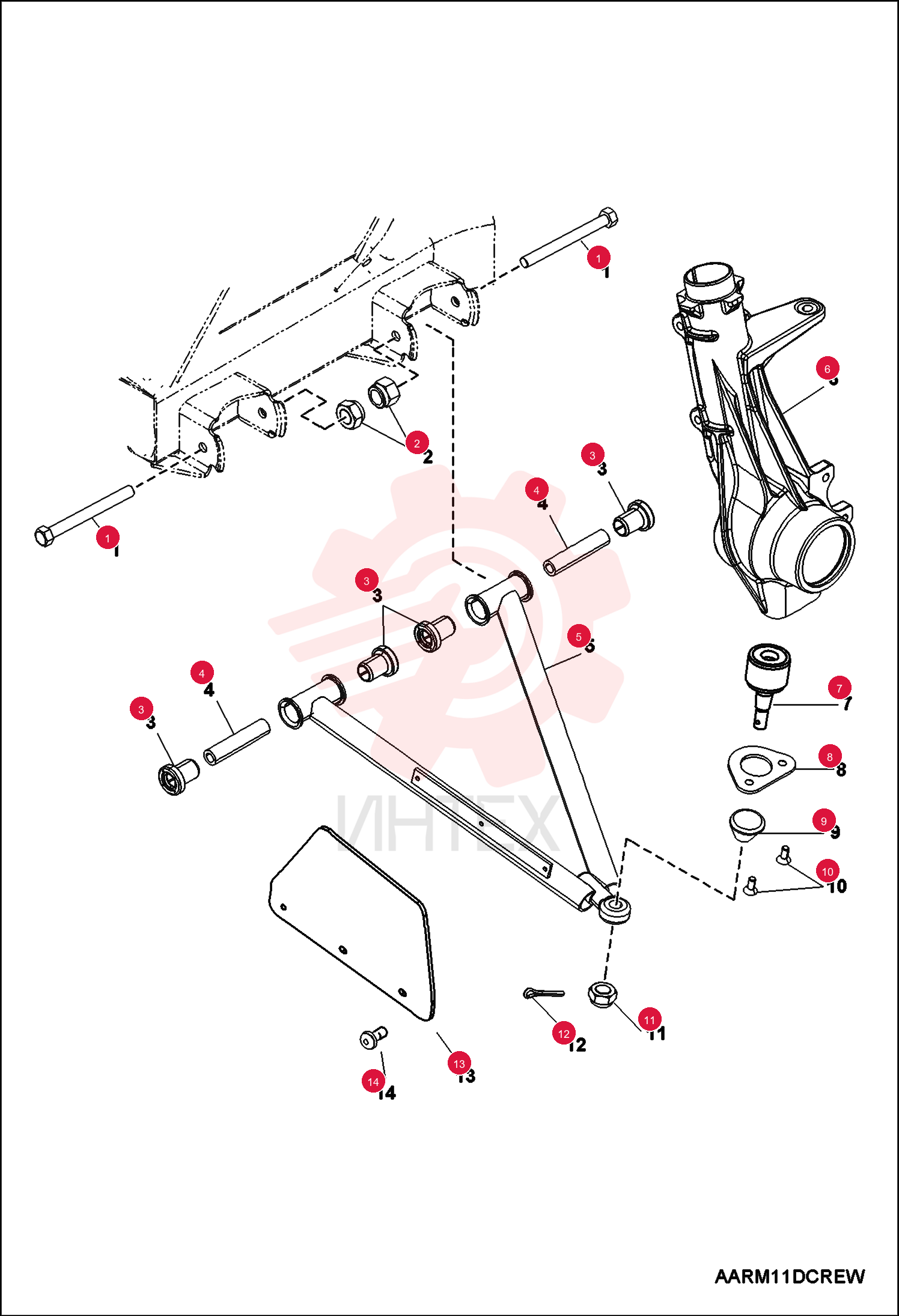

SCREW 7023118 (3)

SCREW 7023118 (3)

SCREW 7023118 (3)

1 7023118

  • 7023118 - SCREW
  • Was 7016162

2 7016518

  • 7016518 - NUT

3 7023371

  • 7023371 - BUSHING

4 7016237

  • 7016237 - BUSHING
  • A-ARM

5 7016741

  • 7016741 - TUBE
  • PIVOT
  • 73.96MM

6 7016782

  • 7016782 - ARM
  • LH
  • BLK

7 7022356

  • 7022356 - ARM
  • CONTROL LH

8 7016783

  • 7016783 - ARM
  • RH
  • BLK

9 7022357

  • 7022357 - ARM
  • CONTROL RH

10 7016073

  • 7016073 - BALL
  • JOINT
  • GREASELESS
  • STRUT

11 7016197

  • 7016197 - BRACKET
  • BALL JOINT

12 7016183

  • 7016183 - BOOT
  • BALLJOINT
  • GREASELESS
  • STRT

13 7016147

  • 7016147 - BOLT

14 7016494

  • 7016494 - NUT

15 7016541

  • 7016541 - PIN
  • COTTER

16 7020778

  • 7020778 - SHIELD
  • CV FRONT

17 7016628

  • 7016628 - SCREW
