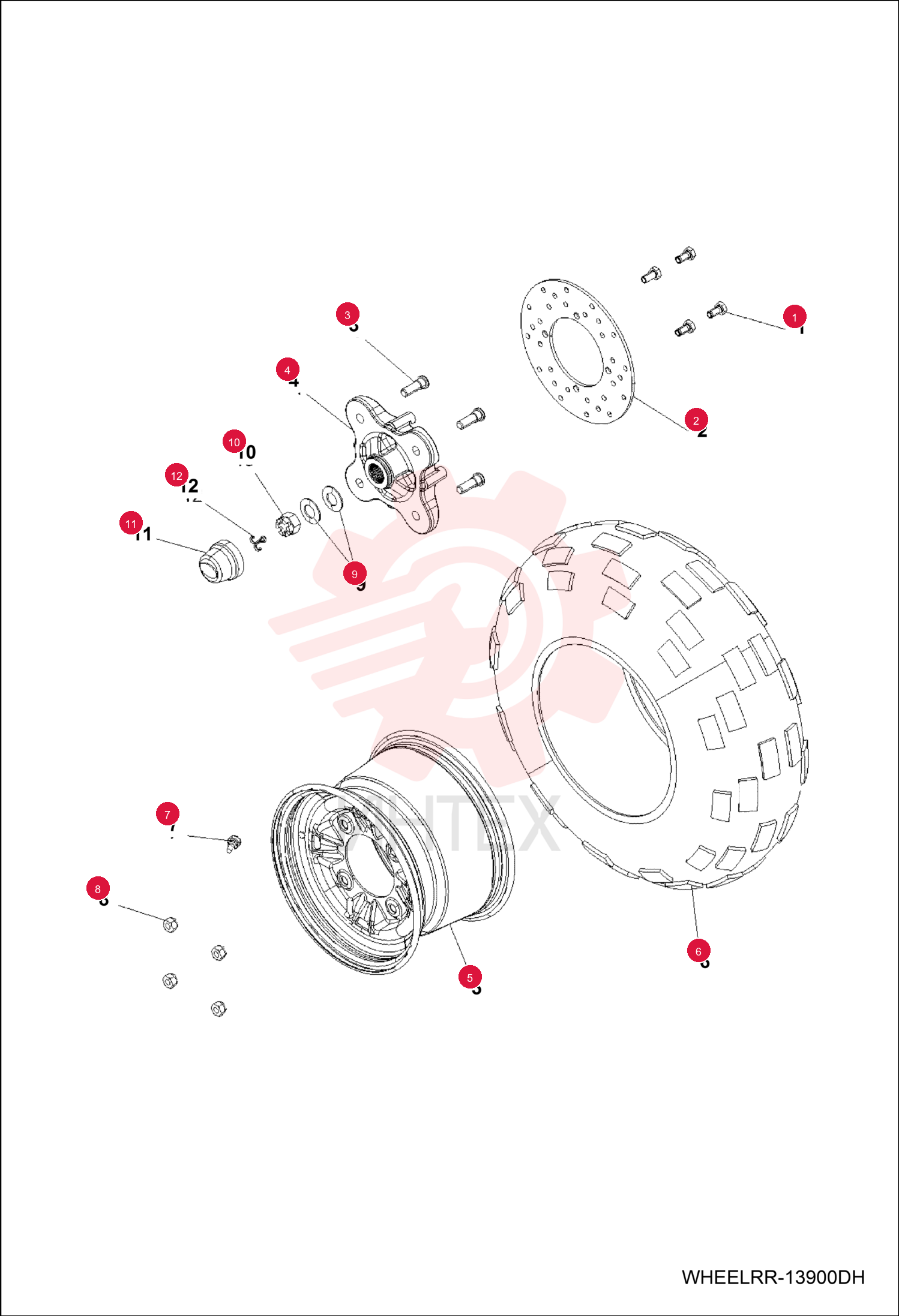

SCREW, MACHINE 7023506 (1)

SCREW, MACHINE 7023506 (1)

SCREW, MACHINE 7023506 (1)

1 7023506

  • 7023506 - SCREW
  • MACHINE

2 7016365

  • 7016365 - DISC
  • BRAKE
  • REAR
  • 8.625X.188

3 7027748

  • 7027748 - STUD
  • WHEEL

4 7023519

  • 7023519 - HUB
  • WHEEL

5 7023517

  • 7023517 - WHEEL
  • REAR ORANGE W/TAPERED HOLES

6 7028397

  • 7028397 - RIM STEEL REAR BLK

7 7027147

  • 7027147 - TIRE
  • 25X11.00-12NHS 4PR

8 7027145

  • 7027145 - TIRE STREET

9 6989066

  • 6989066 - TIRE
  • TURF 25 X 11.00 X 12 4 PLY

10 7027655

  • 7027655 - TIRE
  • 25X11-12
  • standard

11 7016743

  • 7016743 - VALVE
  • RIM

12 7025508

  • 7025508 - NUT
  • WHEEL

13 7016759

  • 7016759 - WASHER
  • CONE

14 7016523

  • 7016523 - NUT

15 7025409

  • 7025409 - COVER
  • DUST

16 7016539

  • 7016539 - PIN
  • COTTER
