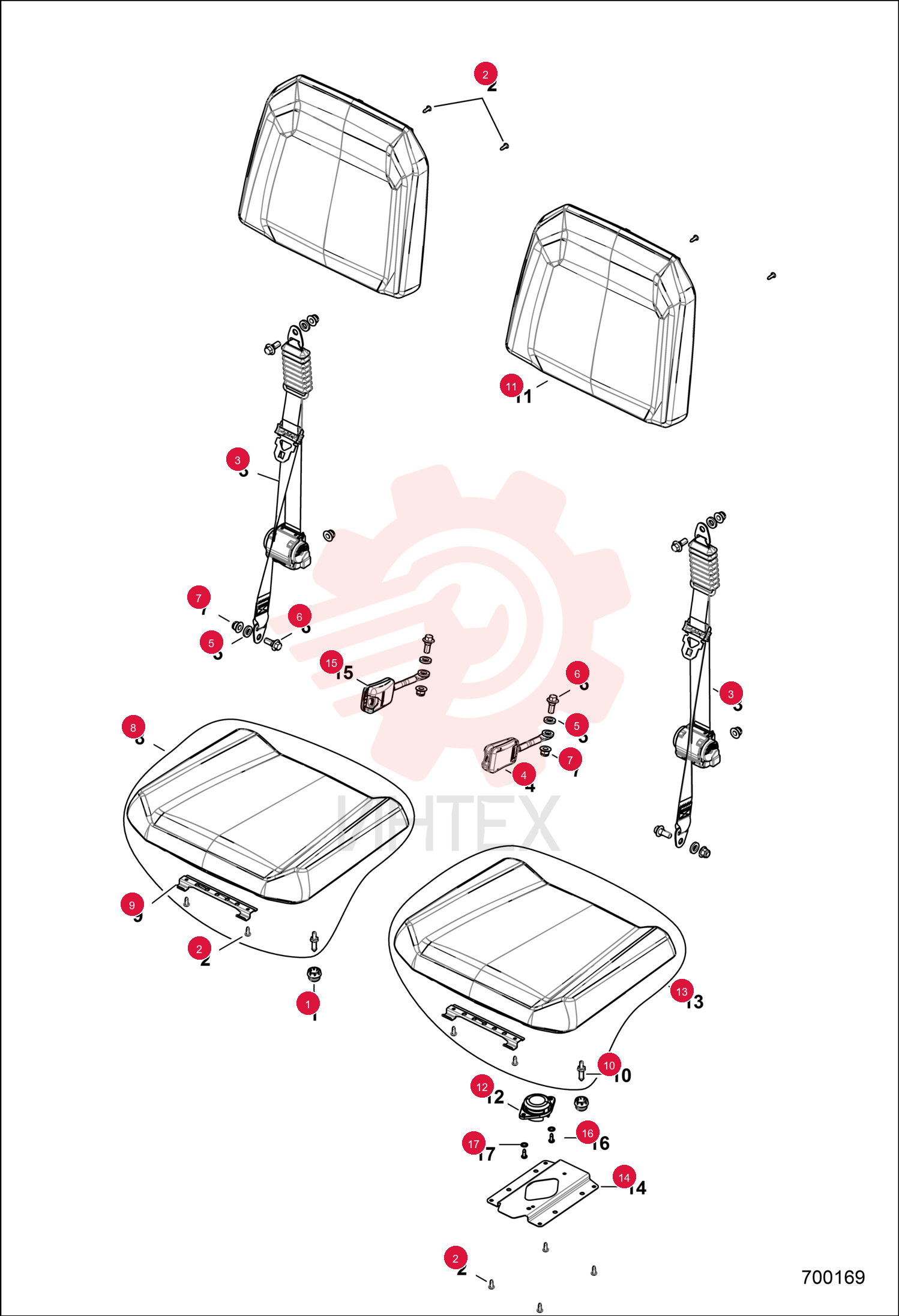

GROMMET 7025425 (2)

GROMMET 7025425 (2)

GROMMET 7025425 (2)

1 7025425

  • 7025425 - GROMMET

2 7016650

  • 7016650 - SCREW

3 7258267

  • 7258267 - BELT
  • SEAT

4 7259234

  • 7259234 - BELT
  • SEAT

5 7024106

  • 7024106 - WASHER
  • RUBBER

6 7025501

  • 7025501 - BOLT
  • FLANGE

7 7025507

  • 7025507 - NUT
  • FLANGE

8 7025540

  • 7025540 - CUSHION
  • SEAT
  • W/Ref. 2
  • 9 & 10

9 7027644

  • 7027644 - BRACKET
  • HINGE SEAT DOUBLE

10 7027708

  • 7027708 - PIN
  • LATCH SEAT

11 7025542

  • 7025542 - CUSHION
  • SEAT

12 7025384

  • 7025384 - SENSOR
  • SEAT

13 7027790

  • 7027790 - SEAT
  • BOTTOM 40 GUNMETAL
  • W/Ref. 2
  • 9 & 10

14 7028651

  • 7028651 - BRACKET
  • SUPPORT

15 7259233

  • 7259233 - BELT
  • SEAT

16 7027747

  • 7027747 - SCREW

17 7269655

  • 7269655 - WASHER
