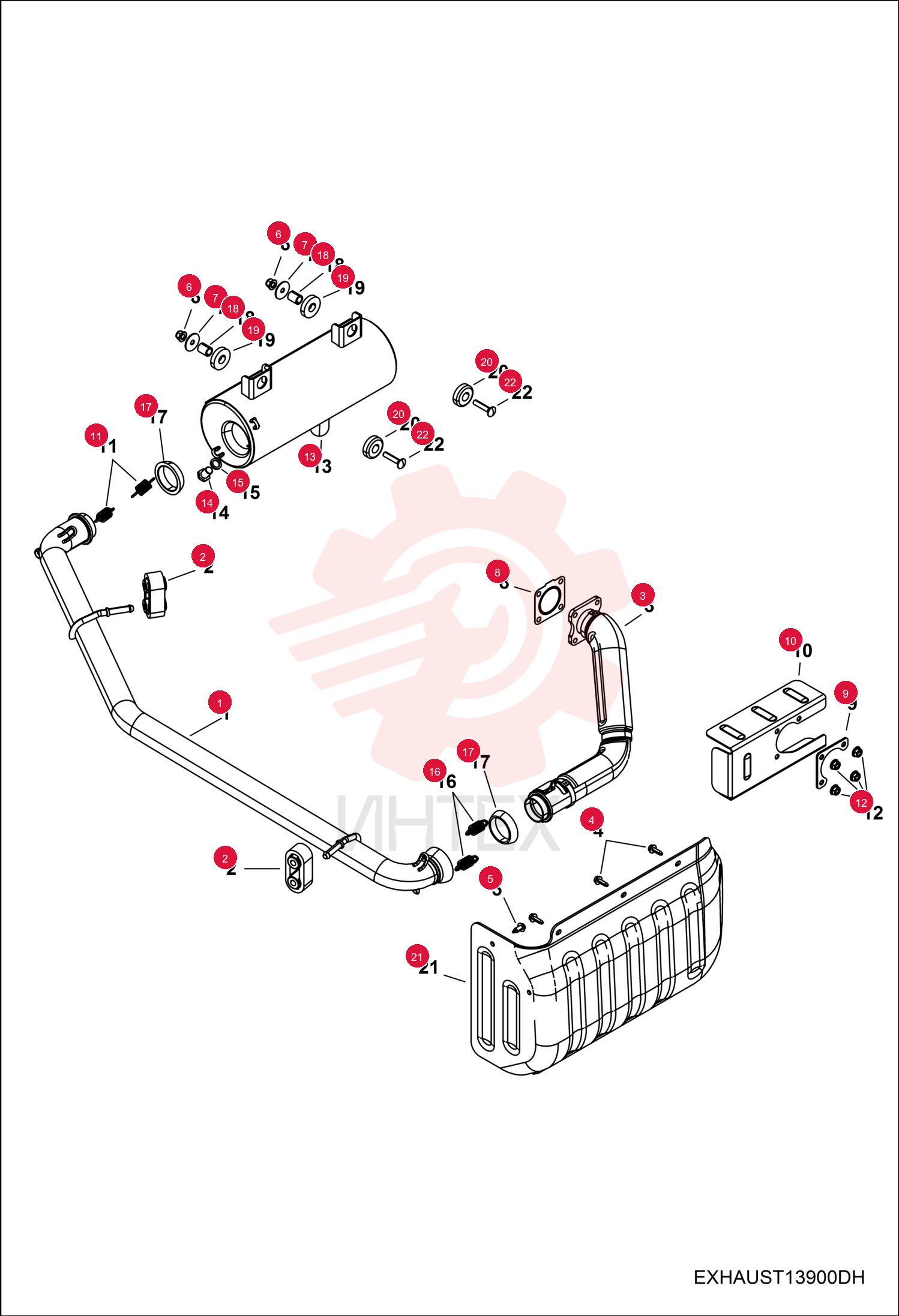

PIPE HEADER REAR BLACK 7025536

PIPE HEADER REAR BLACK 7025536

PIPE HEADER REAR BLACK 7025536

1 7025536

  • 7025536 - PIPE HEADER REAR BLACK

2 7025424

  • 7025424 - MOUNT
  • ISOLATOR

3 7027504

  • 7027504 - TUBE
  • EXHAUST

4 7016645

  • 7016645 - SCREW

5 7016585

  • 7016585 - RIVET
  • TUFLOK
  • .315
  • .325X.787

6 7016526

  • 7016526 - NUT

7 7016746

  • 7016746 - WASHER

8 7028429

  • 7028429 - GASKET

9 7020307

  • 7020307 - PLATE
  • MANIFOLD

10 7023490

  • 7023490 - SHIELD
  • MANIFOLD

11 7016700

  • 7016700 - SPRING

12 7016517

  • 7016517 - NUT

13 7025534

  • 7025534 - SILENCER
  • W/Ref. 14 & 15

14 7016093

  • 7016093 - BOLT

15 7016775

  • 7016775 - WASHER
  • CLEAN OUT .51X.75X.09

16 7016701

  • 7016701 - SPRING

17 7023486

  • 7023486 - GASKET
  • SEAL EXH. SOCKET

18 7016227

  • 7016227 - BUSHING

19 7016767

  • 7016767 - WASHER
  • RUBBER

20 7025403

  • 7025403 - DAMPER
  • VIBRATION

21 7025447

  • 7025447 - SHIELD
  • HEAT

22 7025494

  • 7025494 - BOLT
  • CARRIAGE
