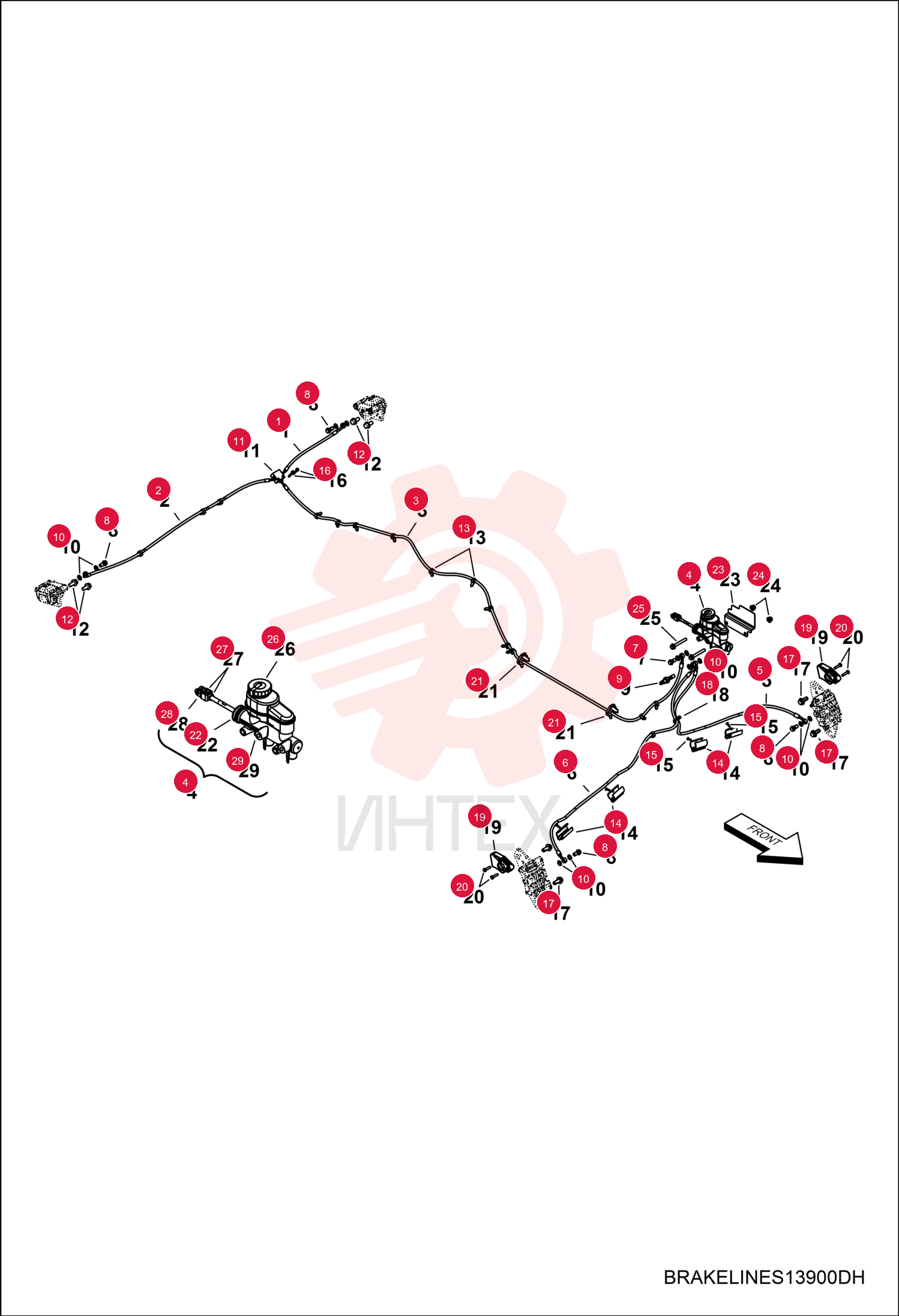

TUBELINE, BRAKE REAR LH 7027524

TUBELINE, BRAKE REAR LH 7027524

TUBELINE, BRAKE REAR LH 7027524

1 7027524

  • 7027524 - TUBELINE
  • BRAKE REAR LH

2 7027525

  • 7027525 - TUBELINE
  • BRAKE REAR RH

3 7027521

  • 7027521 - TUBELINE
  • BRAKE FRAME REAR

4 7016059

  • 7016059 - CYLINDER
  • MASTER BRAKE
  • W/Ref. 22
  • 26-29 - Was 7025292

5 7027519

  • 7027519 - TUBELINE BRAKE FRONT LH

6 7027520

  • 7027520 - TUBELINE
  • BRAKE FRONT RH

7 7016157

  • 7016157 - BOLT

8 7016158

  • 7016158 - BOLT

9 7258270

  • 7258270 - SENSOR
  • PRESS
  • with pigtail

10 7017742

  • 7017742 - SWITCH
  • PRESS BRK M10 X 1.25 DBL
  • without pigtail

11 7016664

  • 7016664 - SEAL
  • STAT
  • O
  • 3/8
  • 70EP

12 7016391

  • 7016391 - FITTING
  • TEE
  • BRAKE

13 7016165

  • 7016165 - BOLT

14 7016306

  • 7016306 - CLIP

15 7025426

  • 7025426 - RETAINER
  • BRAKELINE

16 7025510

  • 7025510 - RIVET
  • POP

17 7016614

  • 7016614 - SCREW

18 7025488

  • 7025488 - BOLT
  • FLANGE

19 7023400

  • 7023400 - CLIP
  • ROUTING

20 7025423

  • 7025423 - SCRAPER

21 7016622

  • 7016622 - SCREW

22 7016315

  • 7016315 - CLIP
  • ROUTING

23 7017567

  • 7017567 - KIT
  • BOOT DUST

24 7025390

  • 7025390 - SHIELD

25 7252818

  • 7252818 - SHIELD

26 7016526

  • 7016526 - NUT

27 7025493

  • 7025493 - BOLT
  • FLANGE

28 7025294

  • 7025294 - KIT
  • CAP

29 7025296

  • 7025296 - KIT
  • NUT CLEVIS

30 7025295

  • 7025295 - KIT
  • CLEVIS

31 7025293

  • 7025293 - KIT
  • RESERVOIR MASTER CYLINDER
