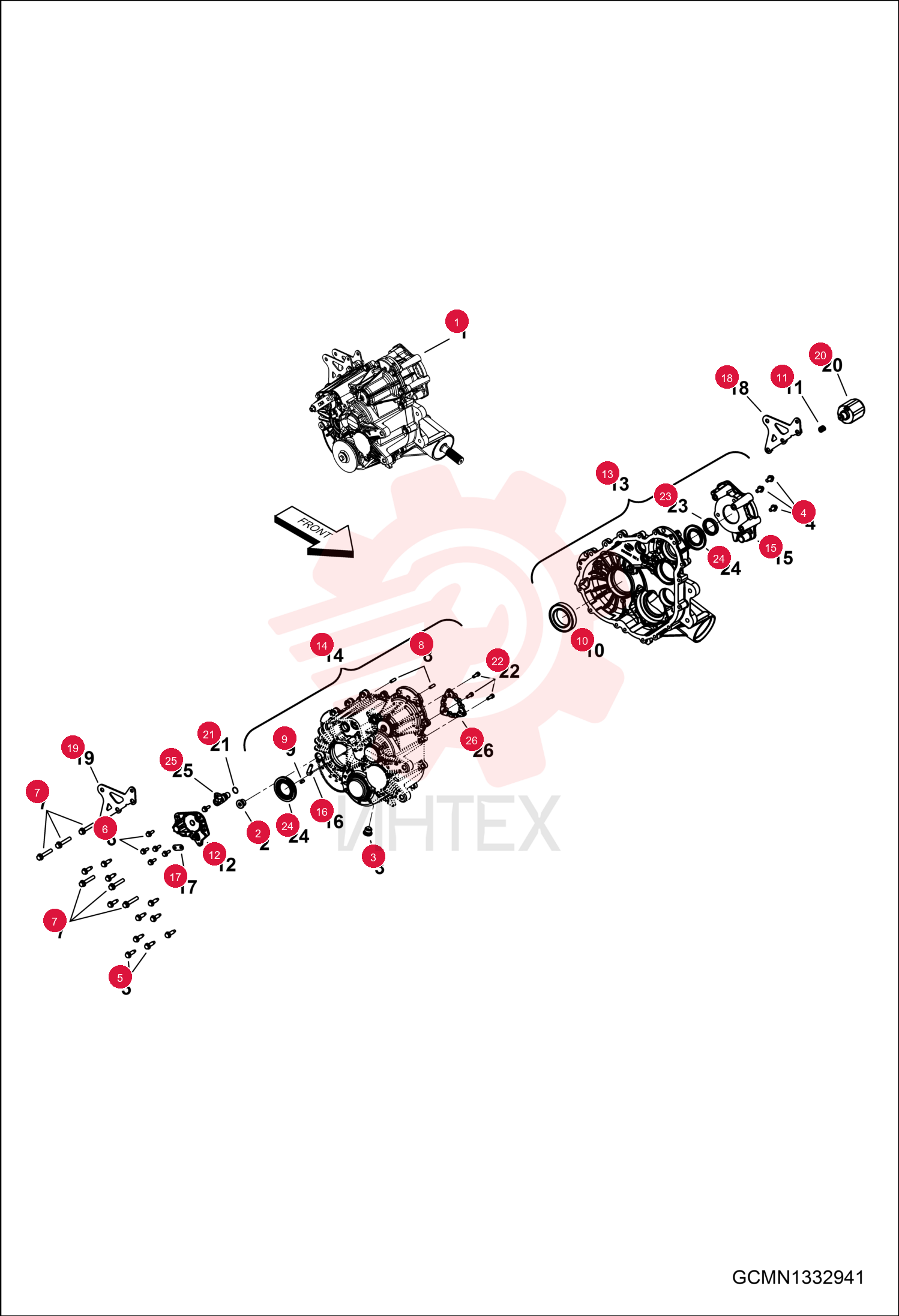

GEARCASE ASSEMBLY 7027510 (7)

GEARCASE ASSEMBLY 7027510 (7)

GEARCASE ASSEMBLY 7027510 (7)

1 7027510

  • 7027510 - GEARCASE ASSEMBLY
  • W/Ref. 2-25

2 7017639

  • 7017639 - PLUG
  • SKT HD 1SO 6149 M18 X 1.5

3 7017640

  • 7017640 - PLUG
  • SKT HEAD W/MAG M18X1.5

4 7027601

  • 7027601 - SCREW

5 7017682

  • 7017682 - SCREW

6 7027569

  • 7027569 - SCREW

7 7027570

  • 7027570 - SCREW

8 7017620

  • 7017620 - PIN
  • DOWEL
  • 6 X 20

9 7027709

  • 7027709 - SPRING
  • PIN SLOTTED

10 7027556

  • 7027556 - BEARING
  • BALL

11 7017726

  • 7017726 - SPRING
  • COMP 54 OD X .44ID X .05

12 7017497

  • 7017497 - COVER
  • GEARCASE

13 7027602

  • 7027602 - HOUSING
  • LH ASSY

14 7027603

  • 7027603 - HOUSING
  • RH ASSY

15 7027604

  • 7027604 - FLANGE
  • MOTOR

16 7017745

  • 7017745 - TUBE
  • VENT 90-1/4" HOSE

17 7027592

  • 7027592 - BRACKET
  • HARNESS WIRE

18 7027600

  • 7027600 - BRACKET
  • REAR

19 7027599

  • 7027599 - BRACKET
  • MOUNT REAR

20 7027618

  • 7027618 - SOLENOID

21 7017616

  • 7017616 - O-RING

22 7027590

  • 7027590 - SCREW

23 7027563

  • 7027563 - SEAL

24 7027566

  • 7027566 - SEAL
  • SHAFT

25 7248188

  • 7248188 - SENSOR
  • TRANS SPEED

26 7255817

  • 7255817 - PLATE
  • FACE
