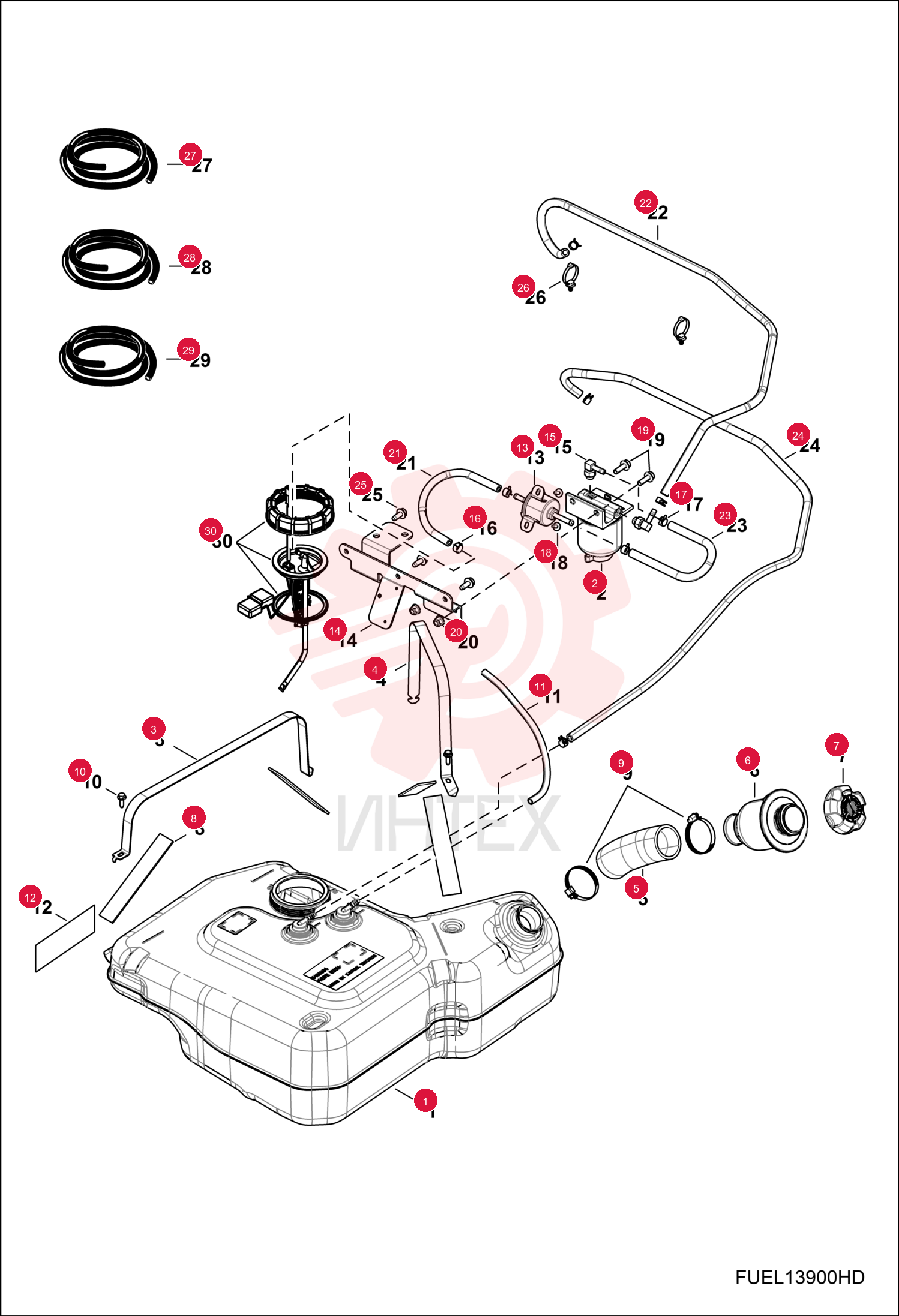

TANK, FUEL 7025329 (1)

TANK, FUEL 7025329 (1)

TANK, FUEL 7025329 (1)

1 7025329

  • 7025329 - TANK
  • FUEL
  • WRef. 30

2 6988961

  • 6988961 - FILTER
  • FUEL

3 7017420

  • 7017420 - FILTER
  • FUEL ASSY

4 7252773

  • 7252773 - BRACKET
  • TANK

5 7025392

  • 7025392 - BRACKET
  • TANK

6 7252774

  • 7252774 - BRACKET
  • TANK

7 7025393

  • 7025393 - BRACKET
  • TANK

8 7025417

  • 7025417 - HOSE
  • FUEL

9 7025335

  • 7025335 - INLET
  • FUEL

10 7025421

  • 7025421 - CAP
  • DIESEL

11 7025445

  • 7025445 - PAD
  • BATTERY

12 7027715

  • 7027715 - CLAMP
  • CONSTANT TENSION

13 7016645

  • 7016645 - SCREW

14 7025446

  • 7025446 - FOIL
  • FENDER JOINT RH

15 7016409

  • 7016409 - PUMP
  • FUEL DIESEL

16 7260655

  • 7260655 - BRACKET
  • FUEL
  • Was 7027798

17 7020312

  • 7020312 - FITTING

18 7016293

  • 7016293 - CLAMP
  • HOSE

19 7023502

  • 7023502 - CLAMP
  • HOSE

20 7016628

  • 7016628 - SCREW

21 7016177

  • 7016177 - BOLT

22 7016526

  • 7016526 - NUT

23 7016175

  • 7016175 - BOLT

24 7023400

  • 7023400 - CLIP
  • ROUTING

25 7017595

  • 7017595 - HOSE
  • VENT 5/16 ID
  • bulk - sold per foot

26 7017529

  • 7017529 - HOSE
  • FUEL BULK/FT
  • bulk - sold per foot

27 7017530

  • 7017530 - HOSE
  • FUEL 5/16
  • bulk - sold per foot

28 7028472

  • 7028472 - KIT
  • PUMP FUEL
