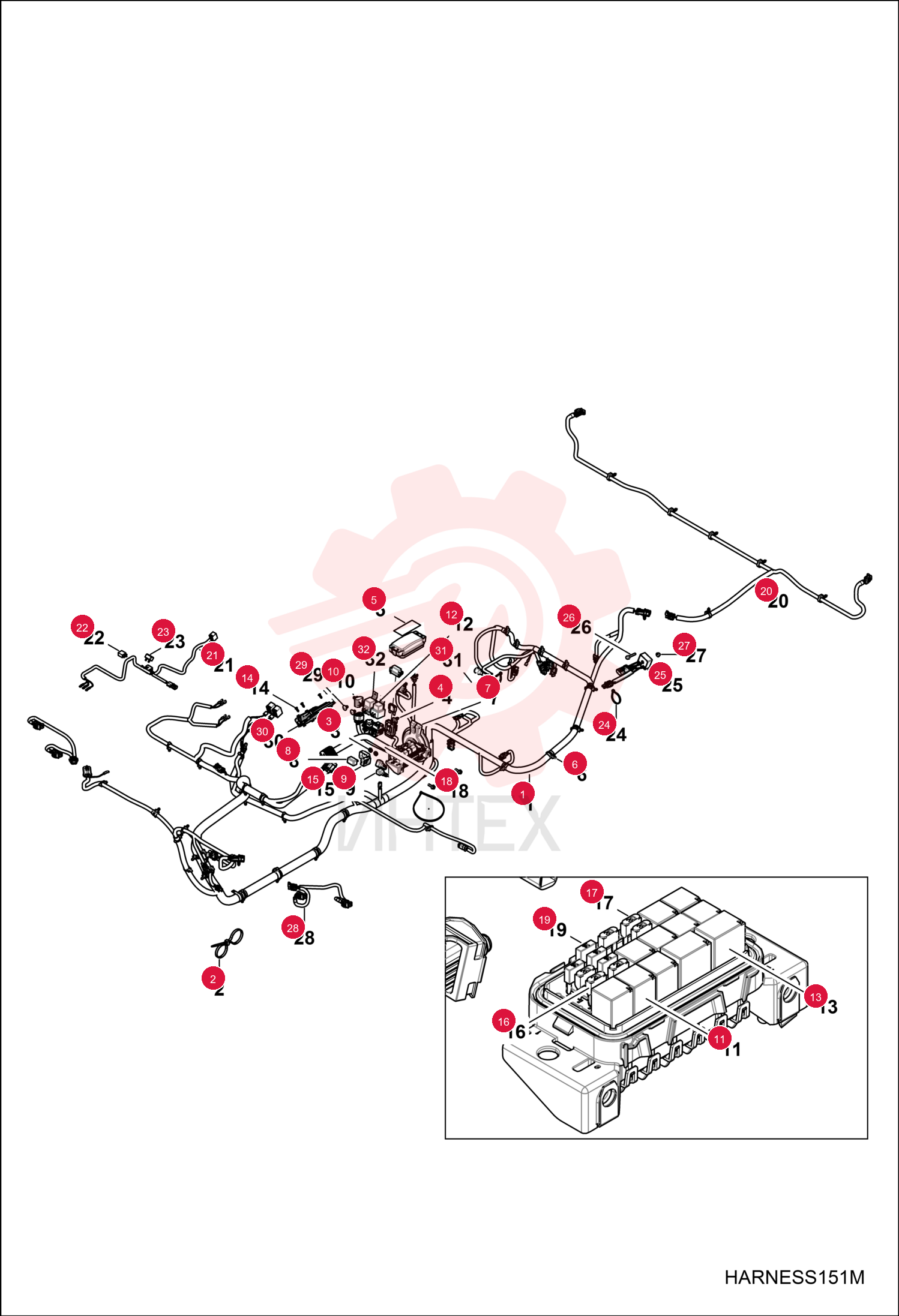

KIT, FUSIBLE LINK 2MM 6MM RING 7017577 (1)

KIT, FUSIBLE LINK 2MM 6MM RING 7017577 (1)

KIT, FUSIBLE LINK 2MM 6MM RING 7017577 (1)

1 7017577

  • 7017577 - KIT
  • FUSIBLE LINK 2MM 6MM RING

2 7017575

  • 7017575 - KIT
  • FUSIBLE LINK 0.8 MM

3 7267681

  • 7267681 - HARNESS
  • CHASSIS
  • W/Ref. 2-13
  • 15-19
  • 23 & 31

4 7259226

  • 7259226 - TIE
  • CABLE

5 7027750

  • 7027750 - NUT

6 7261693

  • 7261693 - CLIP

7 7258453

  • 7258453 - DECAL
  • FUSE RELAY

8 7023400

  • 7023400 - CLIP
  • ROUTING

9 7027659

  • 7027659 - GROMMET
  • HARNESS

10 7027630

  • 7027630 - BREAKER
  • CIRCUIT

11 7027626

  • 7027626 - DIODE
  • TVS 30V

12 7017501

  • 7017501 - COVER
  • DIAGNOSTIC W/CLIP

13 7017645

  • 7017645 - RELAY
  • SPST SERIES 303 SEALED

14 7356687

  • 7356687 - RELAY SEALED
  • Was 7027623 [D]

15 7017644

  • 7017644 - RELAY
  • SPDT SERIES 301 SEALED

16 7016650

  • 7016650 - SCREW
  • Was 7025490 [D]

17 7027621

  • 7027621 - BOOT
  • CIRCUIT BREAKER

18 6707622

  • 6707622 - FUSE
  • 20A MINI 5

19 7017532

  • 7017532 - FUSE
  • MAIN 30 AMP

20 7017511

  • 7017511 - RESISTOR
  • DIODE 6AMP 1/4 3/16 TERM

21 7258454

  • 7258454 - FUSE
  • 15A MINI

22 7258345

  • 7258345 - HARNESS
  • LIGHT REAR

23 7027542

  • 7027542 - HARNESS
  • LIFT BOX
  • W/Ref. 22 & 23

24 7027622

  • 7027622 - RELAY
  • MICRO SPST

25 7017469

  • 7017469 - BREAKER
  • CIRCUIT 20 AMP SEALED

26 7016245

  • 7016245 - TIE
  • CABLE

27 7016573

  • 7016573 - RELAY
  • SOLID STATE
  • 9A
  • LONG LD

28 7023435

  • 7023435 - BOLT
  • FLANGE

29 7016525

  • 7016525 - NUT

30 7025328

  • 7025328 - HARNESS
  • HEAD LIGHT

31 7027763

  • 7027763 - CLIP
  • PLASTIC

32 7027625

  • 7027625 - ECU

33 7261692

  • 7261692 - BOOT

34 7299886

  • 7299886 - RELAY
  • PREHEAT GLOWPLUG
  • Was 7309825
