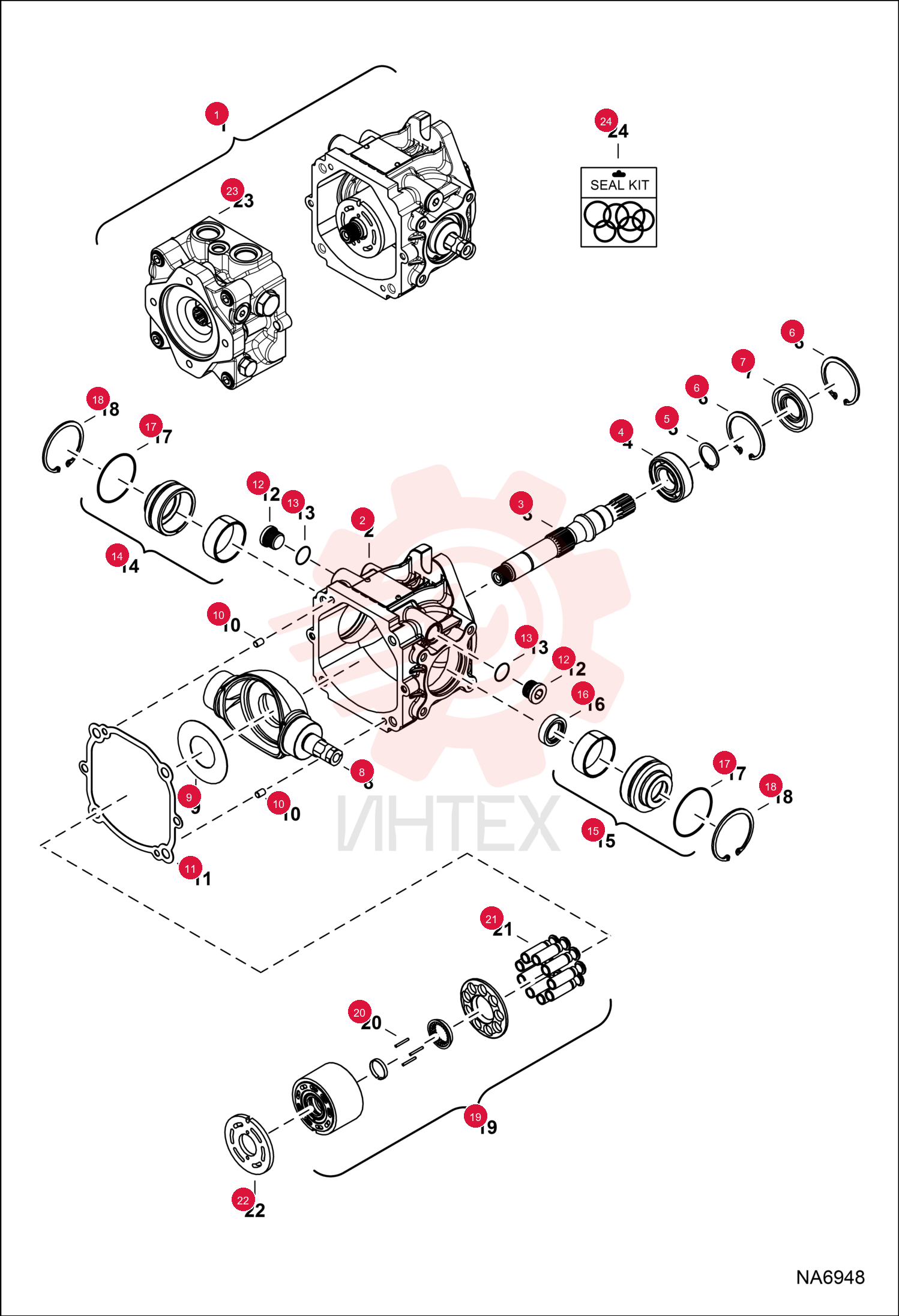

PUMP, HYD 7023339 (6)

PUMP, HYD 7023339 (6)

PUMP, HYD 7023339 (6)

1 7023339

  • 7023339 - PUMP
  • HYD
  • W/Ref. 2-23

2 7025177

  • 7025177 - HOUSING

3 7025182

  • 7025182 - SHAFT

4 7025163

  • 7025163 - BEARING
  • BALL

5 7025169

  • 7025169 - RING
  • RETAINING

6 7025171

  • 7025171 - RING
  • RETAINING

7 7025173

  • 7025173 - SEAL
  • SHAFT

8 7025184

  • 7025184 - SWASHPLATE

9 7025167

  • 7025167 - PLATE
  • THRUST

10 7027130

  • 7027130 - PIN

11 7025176

  • 7025176 - GASKET

12 79K8

  • 79K8 - O RING 10

13 7025151

  • 7025151 - HOUSING
  • BEARING
  • W/Ref. 17

14 7025150

  • 7025150 - HOUSING
  • BEARING
  • W/Ref. 16-17

15 7025172

  • 7025172 - SEAL
  • SHAFT

16 7023018

  • 7023018 - ORING

17 7025168

  • 7025168 - RING
  • RETAINING

18 7025157

  • 7025157 - KIT
  • BLOCK ROTATING
  • W/Ref. 20-21

19 7025153

  • 7025153 - PIN
  • HOLDDOWN

20 7025160

  • 7025160 - PISTON
  • ASSY

21 7025156

  • 7025156 - PLATE
  • VALVE

22 7025158

  • 7025158 - KIT
  • SEAL
  • W/Ref. 7
  • 16 & 17
