Bobcat
/
3650
/

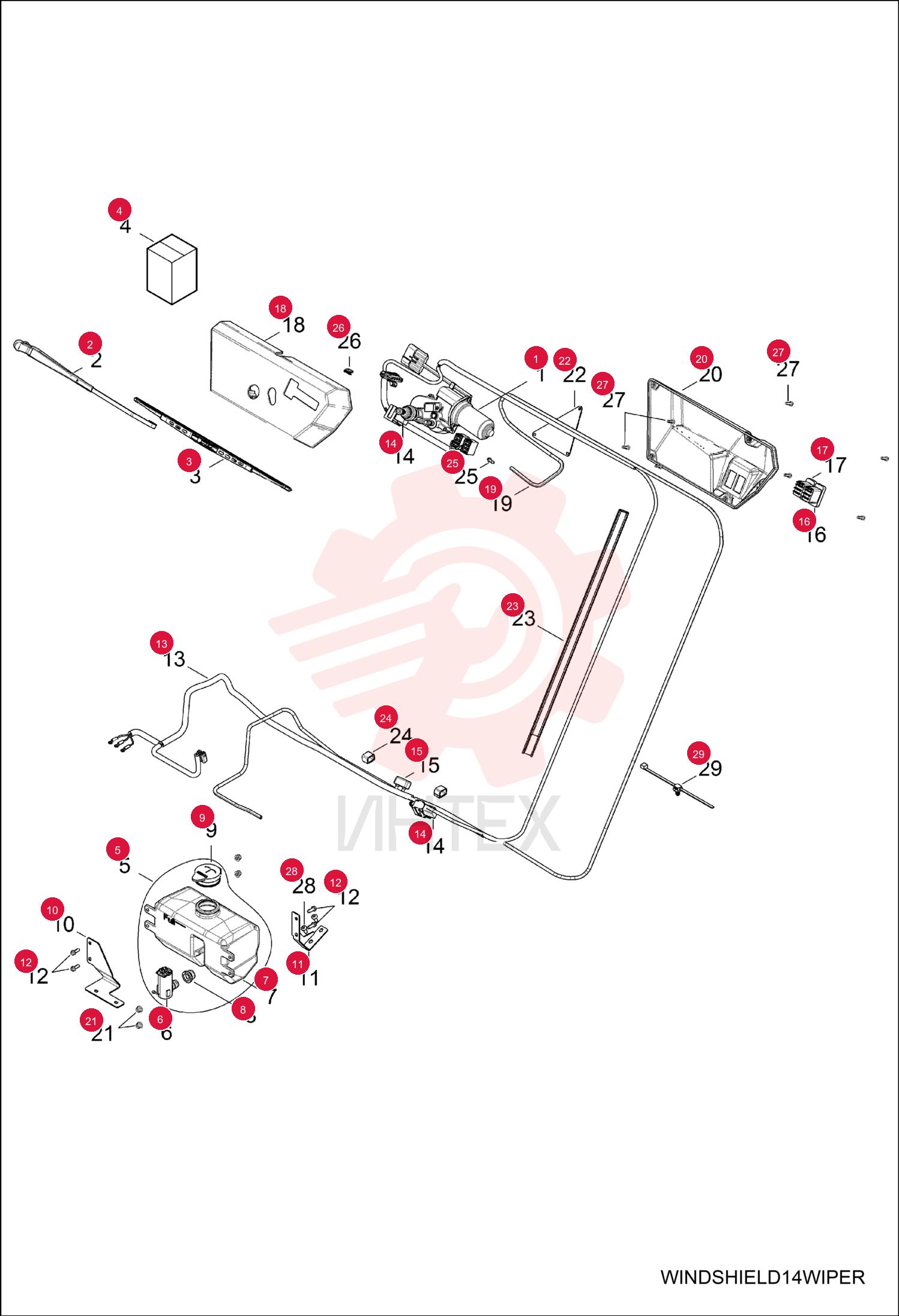

NUT 6677842 (3)

NUT 6677842 (3)

NUT 6677842 (3)

1 6677842

  • 6677842 - NUT
  • Wiper Motor Mounting Nut M18 X 1.0

2 7027534

  • 7027534 - MOTOR
  • WIPER

3 7027535

  • 7027535 - ARM
  • WIPER

4 7027536

  • 7027536 - BLADE
  • WIPER WSHLD

5 7252803

  • 7252803 - HDWR
  • WIPER MTR INSTL WSHLD

6 7252804

  • 7252804 - BOTTLE WINSHIELD WASHER ASSEMBLY
  • W/Ref. 6-9

7 7249562

  • 7249562 - PUMP
  • WIPER WASHER

8 7252805

  • 7252805 - BOTTLE
  • WASHER WIPER FLUID

9 7252806

  • 7252806 - GROMMET

10 7252807

  • 7252807 - LID
  • BOTTLE WASHER

11 7252808

  • 7252808 - BRACKET
  • WASHERBOTTLE FRONT

12 7252809

  • 7252809 - BRACKET
  • WASHER BOTTLE SIDE

13 7025487

  • 7025487 - BOLT
  • FLANGE

14 7249563

  • 7249563 - HARNESS
  • WIPER
  • W/Ref. 14 & 15

15 7017643

  • 7017643 - RELAY
  • MICRO SPDT 35/20A SLD 12

16 7017469

  • 7017469 - BREAKER
  • CIRCUIT 20 AMP SEALED

17 7027631

  • 7027631 - SWITCH
  • WASH WIPER

18 7027632

  • 7027632 - SWITCH
  • WIPER LOW HIGH

19 7252810

  • 7252810 - MNT
  • WIPER WSHLD

20 7252811

  • 7252811 - HOSE
  • WIPER WSHR FLUID

21 7252812

  • 7252812 - COVER
  • WIPER WSHLD

22 7016524

  • 7016524 - NUT

23 7252813

  • 7252813 - RETAINER
  • MOTOR WIPER

24 7252814

  • 7252814 - GUIDE
  • HARNESS

25 7252815

  • 7252815 - GUIDE
  • HARNESS

26 7252816

  • 7252816 - FITTING
  • BARB HOSE

27 7252817

  • 7252817 - CLIP
  • HARNESS

28 7016615

  • 7016615 - SCREW

29 7016650

  • 7016650 - SCREW

30 7023400

  • 7023400 - CLIP
  • ROUTING
