Bobcat
/
3650
/

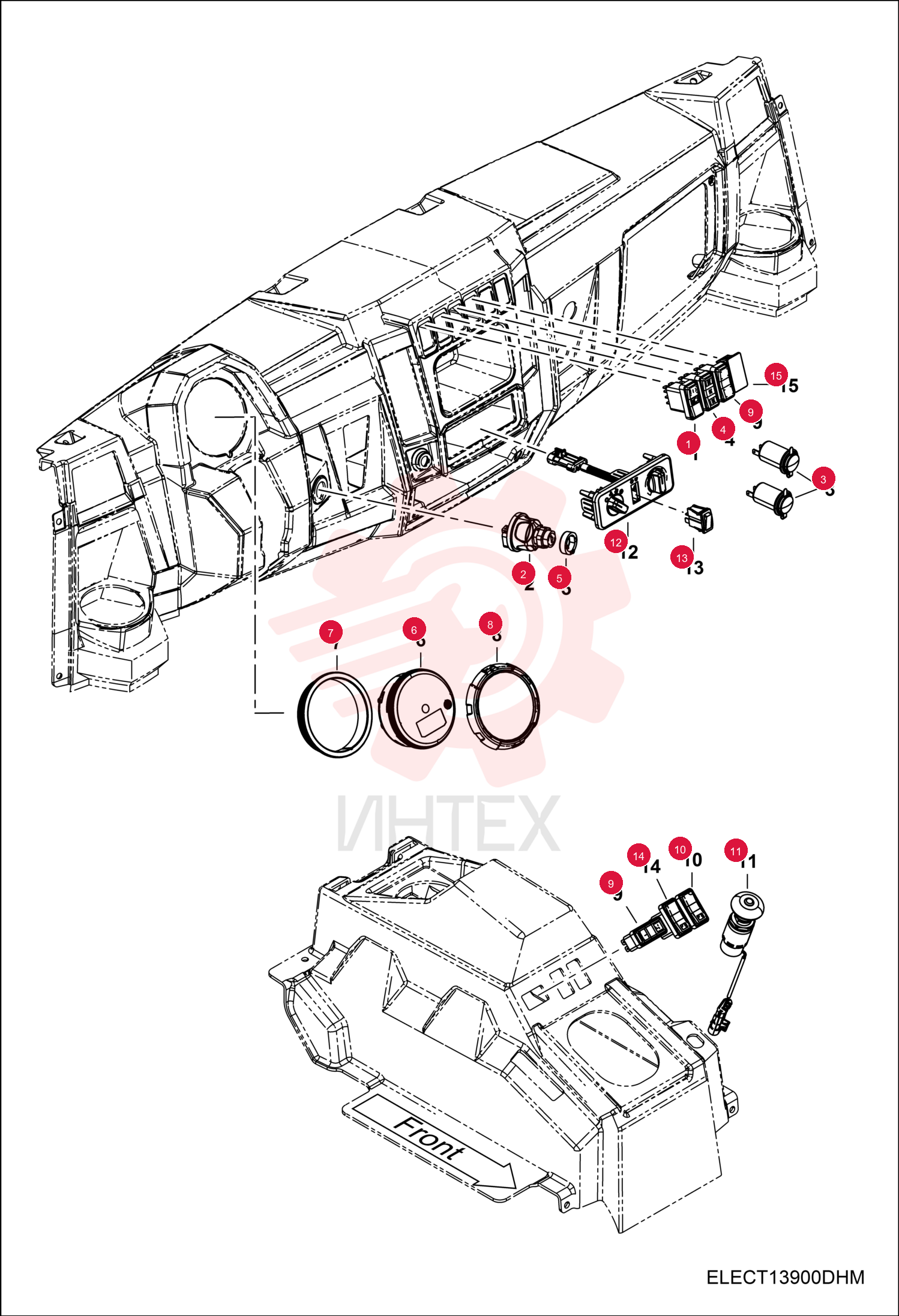

SWITCH, HEADLIGHT 7016728 (1)

SWITCH, HEADLIGHT 7016728 (1)

SWITCH, HEADLIGHT 7016728 (1)

1 7016728

  • 7016728 - SWITCH
  • HEADLIGHT

2 6693241

  • 6693241 - KEY (2)

3 7016724

  • 7016724 - SWITCH
  • KEY
  • HEAVY
  • DUTY
  • 4 Pin Connector - use key 6693241

4 7016570

  • 7016570 - RECEIVER
  • RECEPTACLE
  • POD MNT
  • 12 VOLT

5 7016725

  • 7016725 - SWITCH
  • AWD

6 7025432

  • 7025432 - SPACER

7 7252892

  • 7252892 - PANEL
  • INSTRUMENT
  • W/Ref. 7

8 7025379

  • 7025379 - PANEL
  • INSTRUMENT
  • W/Ref. 7

9 7027650

  • 7027650 - MOUNT
  • RUBBER

10 7025422

  • 7025422 - BEZEL
  • INSTRUMENT

11 7252893

  • 7252893 - SWITCH
  • PUSH-BUTTON MOMENTARY
  • power lift actuator

12 7020296

  • 7020296 - SWITCH
  • PUSH-BUTTON MOMENTARY
  • power lift actuator

13 7027627

  • 7027627 - SWITCH
  • ROCKER
  • W/O cab

14 7023609

  • 7023609 - SWITCH
  • PTO
  • W/O cab

15 7252894

  • 7252894 - SWITCH
  • PTO
  • W/O cab

16 6719176

  • 6719176 - SWITCH ROCKER
  • W/cab

17 7027628

  • 7027628 - SWITCH
  • ROCKER
  • W/O cab

18 7016565

  • 7016565 - PLUG
  • HOLE
  • CARLING ROCKER SWTCH
