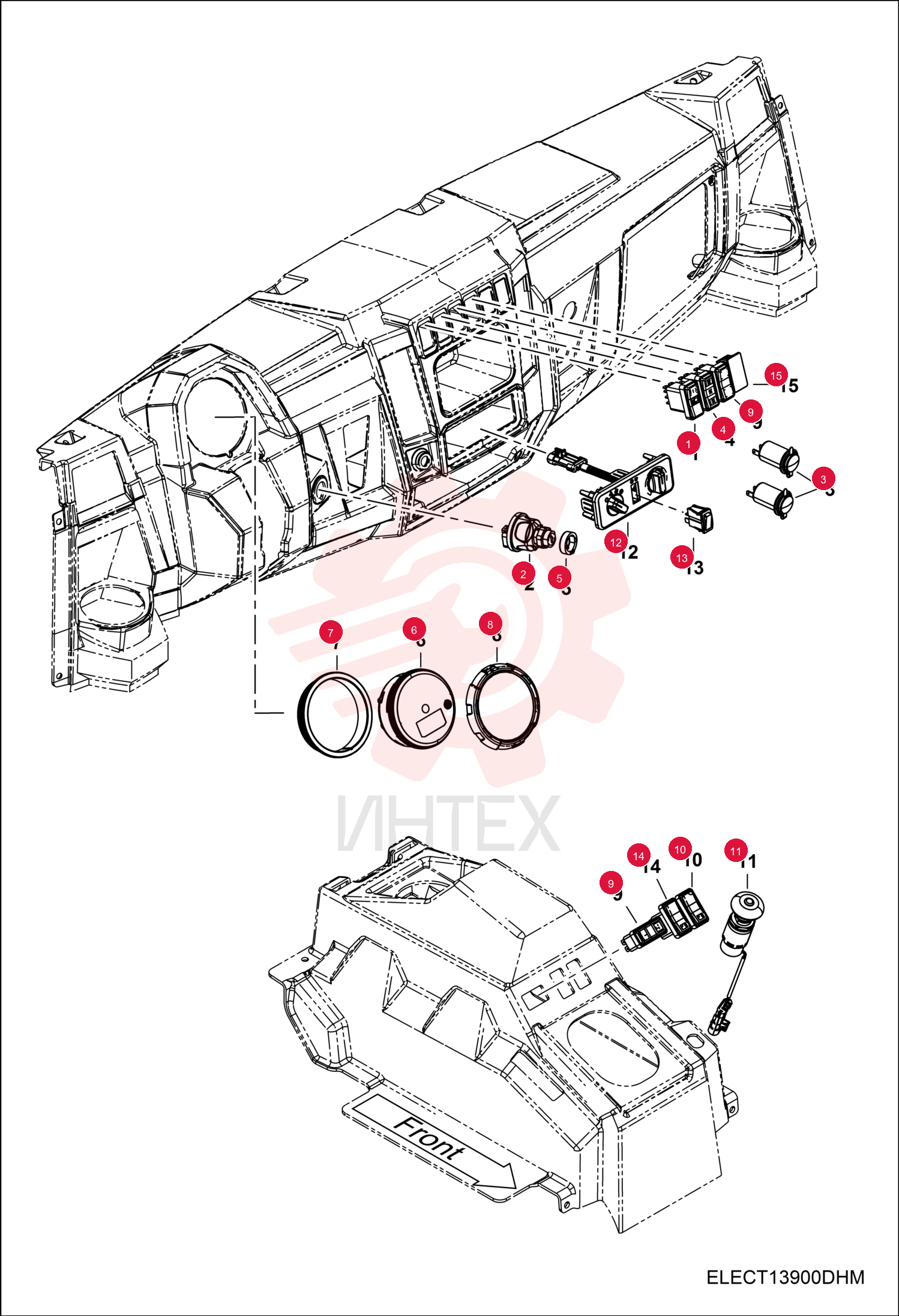

SWITCH, HEADLIGHT 7016728 (2)

SWITCH, HEADLIGHT 7016728 (2)

SWITCH, HEADLIGHT 7016728 (2)

1 7016728

  • 7016728 - SWITCH
  • HEADLIGHT

2 6693241

  • 6693241 - KEY (2)

3 7016724

  • 7016724 - SWITCH
  • KEY
  • HEAVY
  • DUTY
  • 4 Pin Connector - use key 6693241

4 7016570

  • 7016570 - RECEIVER
  • RECEPTACLE
  • POD MNT
  • 12 VOLT

5 7016725

  • 7016725 - SWITCH
  • AWD

6 7025432

  • 7025432 - SPACER

7 7281879

  • 7281879 - PANEL
  • INSTRUMENT
  • - Was 7258333

8 7027650

  • 7027650 - MOUNT
  • RUBBER

9 7025422

  • 7025422 - BEZEL
  • INSTRUMENT

10 7252895

  • 7252895 - SWITCH
  • PUSH-BUTTON MOMENTARY

11 7252893

  • 7252893 - SWITCH
  • PUSH-BUTTON MOMENTARY
  • power lift actuator

12 7027627

  • 7027627 - SWITCH
  • ROCKER

13 7252894

  • 7252894 - SWITCH
  • PTO

14 7025373

  • 7025373 - CONTROL
  • W/Cab

15 7025374

  • 7025374 - SWITCH
  • ROCKER
  • W/Cab

16 7027628

  • 7027628 - SWITCH
  • ROCKER

17 7016565

  • 7016565 - PLUG
  • HOLE
  • CARLING ROCKER SWTCH
