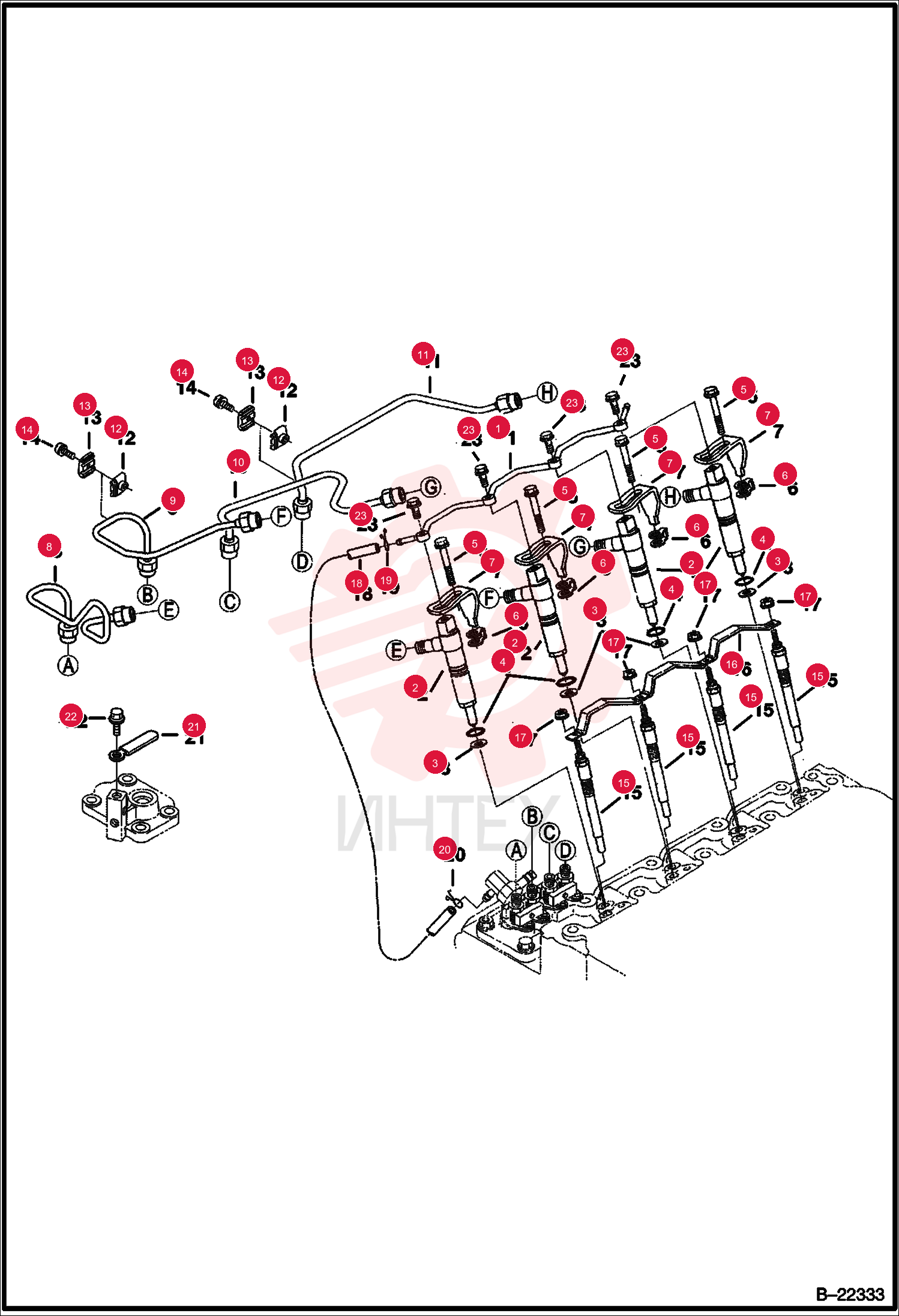

PIPE 6684842 (1)

PIPE 6684842 (1)

PIPE 6684842 (1)

1 6684842

  • 6684842 - PIPE

2 6684843

  • 6684843 - ФОРСУНКА
  • nozzle

3 1051188192

  • 1051188192 - ФОРСУНКА
  • ZEXEL

4 1G73053000

  • 1G73053000 - ФОРСУНКА
  • KUBOTA

5 1G73053002

  • 1G73053002 - ФОРСУНКА
  • KUBOTA

6 1G73053003

  • 1G73053003 - ФОРСУНКА
  • KUBOTA

7 9430613966

  • 9430613966 - ФОРСУНКА
  • BOSCH

8 F01G09X053

  • F01G09X053 - ФОРСУНКА
  • BOSCH

9 6684843REM

  • 6684843REM - ФОРСУНКА KUBOTA V2003T

10 6969824

  • 6969824 - GASKET
  • NOZZLE INJ
  • Was 6680779

11 6670769

  • 6670769 - O-RING

12 6685498

  • 6685498 - GASKET
  • Was 6680789

13 7015275

  • 7015275 - CLAMP
  • INJECTION
  • nozzle - Was 6684845

14 6684846

  • 6684846 - PIPE

15 6684847

  • 6684847 - PIPE

16 6684848

  • 6684848 - PIPE

17 6684849

  • 6684849 - PIPE

18 6652688

  • 6652688 - CLAMP
  • Was 6680785

19 6652689

  • 6652689 - CLAMP
  • pipe - Was 6680786

20 3974260

  • 3974260 - SCREW

21 6684850

  • 6684850 - GLOW PLUG

22 6969825

  • 6969825 - CORD
  • GLOW PLUG
  • Was 6684851

23 6670472

  • 6670472 - NUT

24 6598146

  • 6598146 - PIPE

25 6654718

  • 6654718 - CLAMP 5
  • pipe - Was 6680795

26 6654718

  • 6654718 - CLAMP 5

27 6667457

  • 6667457 - CLAMP

28 6680830

  • 6680830 - BOLT

29 6680788

  • 6680788 - BOLT
  • Was 6689528
