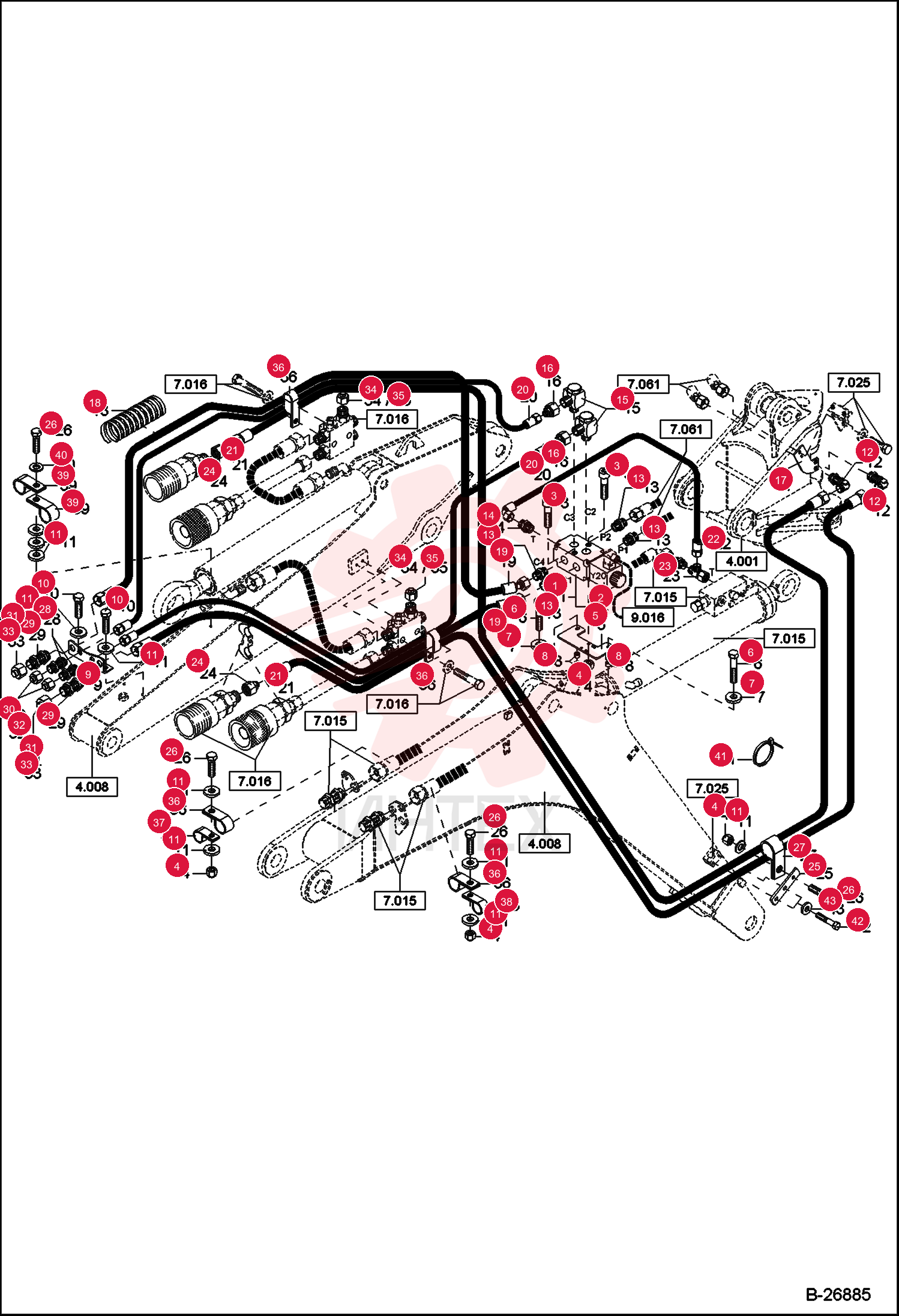

VALVE, REVERSING 5167659818 (1)

VALVE, REVERSING 5167659818 (1)

VALVE, REVERSING 5167659818 (1)

1 5167659818

  • 5167659818 - VALVE
  • REVERSING
  • W/Ref. 2

2 5167660119

  • 5167660119 - SWIVEL
  • HYD ASSY

3 1045707120

  • 1045707120 - BOLT

4 1212251011

  • 1212251011 - NUT

5 0239306006

  • 0239306006 - BRACKET
  • VALVE

6 1007707424

  • 1007707424 - BOLT

7 1343707059

  • 1343707059 - WASHER

8 0162203521

  • 0162203521 - SPACER

9 0234306010

  • 0234306010 - BRACKET
  • FITTINGS

10 1008707817

  • 1008707817 - BOLT

11 1343707057

  • 1343707057 - WASHER

12 1931060153

  • 1931060153 - FITTING

13 1915060262

  • 1915060262 - FITTING

14 1915060255

  • 1915060255 - FITTING

15 1921060559

  • 1921060559 - FITTING

16 1934060157

  • 1934060157 - FITTING

17 0190303006

  • 0190303006 - BRACKET

18 5000068300

  • 5000068300 - WIRING HARNESS

19 4260385367

  • 4260385367 - HOSE

20 4256385356

  • 4256385356 - HOSE

21 4910565359

  • 4910565359 - HOSE

22 4506130351

  • 4506130351 - HOSE

23 1919060351

  • 1919060351 - FITTING

24 1934060195

  • 1934060195 - FITTING

25 0190303007

  • 0190303007 - BRACKET

26 1008707318

  • 1008707318 - BOLT

27 5000210410

  • 5000210410 - HOSE CLIP

28 1913060151

  • 1913060151 - FITTING

29 1913060153

  • 1913060153 - FITTING

30 1911060154

  • 1911060154 - UNION NUT

31 1911060156

  • 1911060156 - NUT
  • ADAPTER

32 1912060354

  • 1912060354 - PLUG

33 1912060356

  • 1912060356 - PLUG

34 1911060169

  • 1911060169 - NUT
  • ADAPTER

35 1912060369

  • 1912060369 - PLUG

36 5000210420

  • 5000210420 - HOSE CLIP

37 5000210463

  • 5000210463 - HOSE CLIP

38 5000210400

  • 5000210400 - HOSE CLIP

39 5000096800

  • 5000096800 - HOSE CLAMP

40 1290707018

  • 1290707018 - WASHER

41 5350650280

  • 5350650280 - BINDER

42 1007707414

  • 1007707414 - BOLT

43 1343707055

  • 1343707055 - WASHER
