Главная
/
Бренды
/
Bobcat
/
444
/

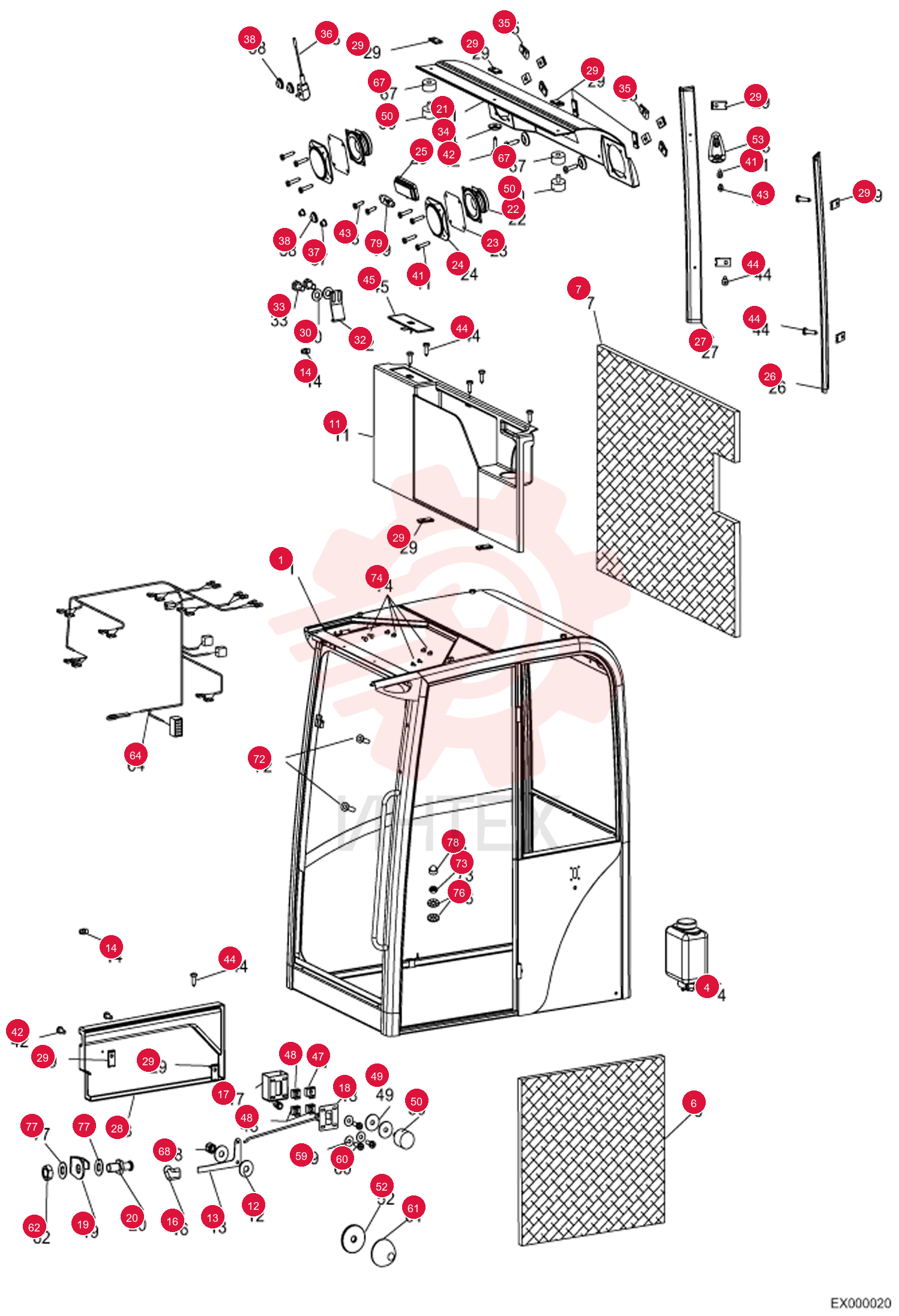

RESERVOIR 5388662574 (3)

RESERVOIR 5388662574 (3)

RESERVOIR 5388662574 (3)

1 5388662574

  • 5388662574 - RESERVOIR

2 5388665070

  • 5388665070 - INSULATION

3 5388665069

  • 5388665069 - INSULATION

4 5388662938

  • 5388662938 - COVERING

5 1307707018

  • 1307707018 - WASHER

6 5388662939

  • 5388662939 - HANDLE

7 1607003006

  • 1607003006 - GREASE NIPPLE

8 5388662587

  • 5388662587 - BUTTON
  • PLASTIC

9 5388662222

  • 5388662222 - HOUSING

10 5388662143

  • 5388662143 - DOOR LOCKING
  • includes cable

11 5388661433

  • 5388661433 - GUIDE

12 5388661473

  • 5388661473 - COTTER

13 5388662940

  • 5388662940 - COVERING

14 5388662550

  • 5388662550 - LOUDSPEAKER

15 5388662814

  • 5388662814 - DUST PROTECTION

16 5388662575

  • 5388662575 - LOUDSPEAKER COVER

17 5388662690

  • 5388662690 - INTERIOR LIGHT

18 5388662941

  • 5388662941 - COVER

19 5388662942

  • 5388662942 - COVER

20 5388662943

  • 5388662943 - COVER

21 5388662515

  • 5388662515 - CLIP

22 1290707018

  • 1290707018 - WASHER

23 5388662944

  • 5388662944 - HOLDER

24 5388662829

  • 5388662829 - BOLT

25 5388662047

  • 5388662047 - WASHER

26 5388662687

  • 5388662687 - CLIP

27 5388664003

  • 5388664003 - AERIAL

28 5388662794

  • 5388662794 - CAP

29 5388662057

  • 5388662057 - PLUG

30 5388662945

  • 5388662945 - BOLT

31 5388662046

  • 5388662046 - BOLT

32 5388662796

  • 5388662796 - BOLT

33 5388661435

  • 5388661435 - BOLT

34 5388662471

  • 5388662471 - COVER

35 5388662599

  • 5388662599 - NUT

36 5388662284

  • 5388662284 - NUT

37 5388662071

  • 5388662071 - WASHER

38 5388662947

  • 5388662947 - STOP

39 5388661442

  • 5388661442 - WASHER

40 5388661443

  • 5388661443 - HOOK

41 5388662925

  • 5388662925 - WASHER

42 5388662776

  • 5388662776 - BOLT

43 5388661476

  • 5388661476 - RUBBER BLOCK

44 5388662090

  • 5388662090 - NUT

45 5388665026

  • 5388665026 - HARNESS

46 5388662777

  • 5388662777 - SPACER RING

47 1212251011

  • 1212251011 - NUT

48 5388665062

  • 5388665062 - NUT

49 5388665048

  • 5388665048 - NUT

50 5388665047

  • 5388665047 - NUT

51 1290707014

  • 1290707014 - WASHER

52 5388662089

  • 5388662089 - WASHER

53 5388662051

  • 5388662051 - CAP

54 1814000101

  • 1814000101 - BULB
  • Includes Ref. 25
