444
/

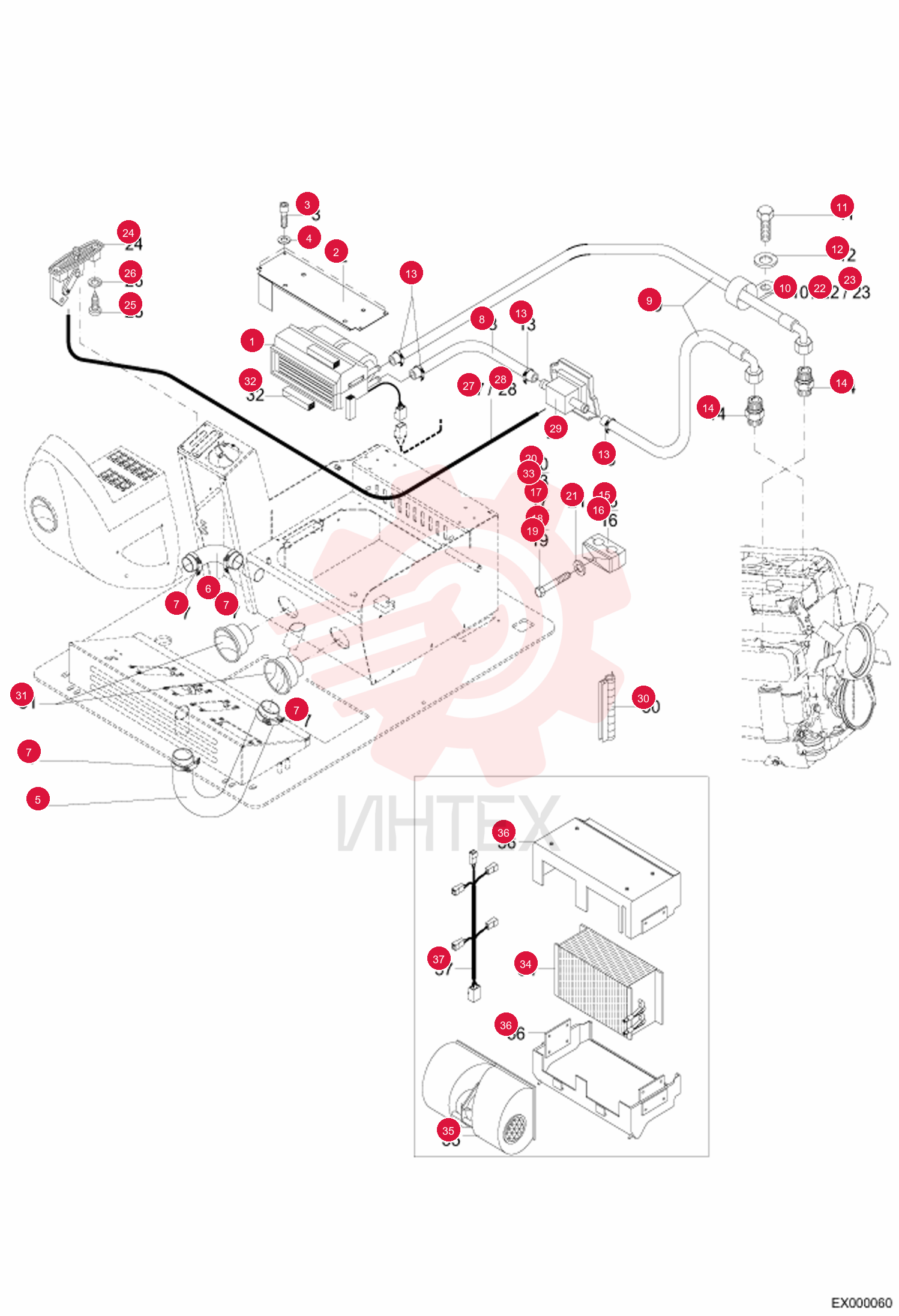

HEATING 5169010010 (1)

HEATING 5169010010 (1)

HEATING 5169010010 (1)

1 5169010010

  • 5169010010 - HEATING
  • Includes Ref. 32 & 33

2 6190018004

  • 6190018004 - COVER

3 1045707213

  • 1045707213 - BOLT

4 1290707014

  • 1290707014 - WASHER

5 5367628905

  • 5367628905 - HOSE

6 7024567

  • 7024567 - HOSE
  • AIR

7 5660095300

  • 5660095300 - HOSE CLIP

8 6398018004

  • 6398018004 - HOSE

9 0209018010

  • 0209018010 - HOSE

10 5000210420

  • 5000210420 - HOSE CLIP

11 1008707018

  • 1008707018 - BOLT

12 1343707057

  • 1343707057 - WASHER

13 5660200090

  • 5660200090 - CLAMP

14 1915060666

  • 1915060666 - FITTING

15 5660199785

  • 5660199785 - HOSE CLIP

16 5660200230

  • 5660200230 - COVER PLATE

17 1007707319

  • 1007707319 - BOLT

18 1007707619

  • 1007707619 - BOLT

19 1007707719

  • 1007707719 - BOLT

20 1007707220

  • 1007707220 - BOLT

21 1290707018

  • 1290707018 - WASHER

22 5000136820

  • 5000136820 - HOSE CLIP

23 5000136700

  • 5000136700 - HOSE CLIP

24 5388662385

  • 5388662385 - REGULATOR

25 1090707742

  • 1090707742 - SCREW

26 1307707012

  • 1307707012 - WASHER

27 5388662389

  • 5388662389 - BOWDEN CABLE

28 1290707012

  • 1290707012 - WASHER

29 5388662602

  • 5388662602 - HEATER VALVE

30 5354255965

  • 5354255965 - SEALING SECTION

31 5688329382

  • 5688329382 - NOZZLE

32 5354640128

  • 5354640128 - NEOPRENE STRIP

33 1007707519

  • 1007707519 - BOLT

34 5169010027

  • 5169010027 - HEAT EXCHANGE

35 5169010028

  • 5169010028 - FAN

36 5169010029

  • 5169010029 - HOUSING

37 5169010030

  • 5169010030 - WIRE HARNESS
