Bobcat
/
444
/

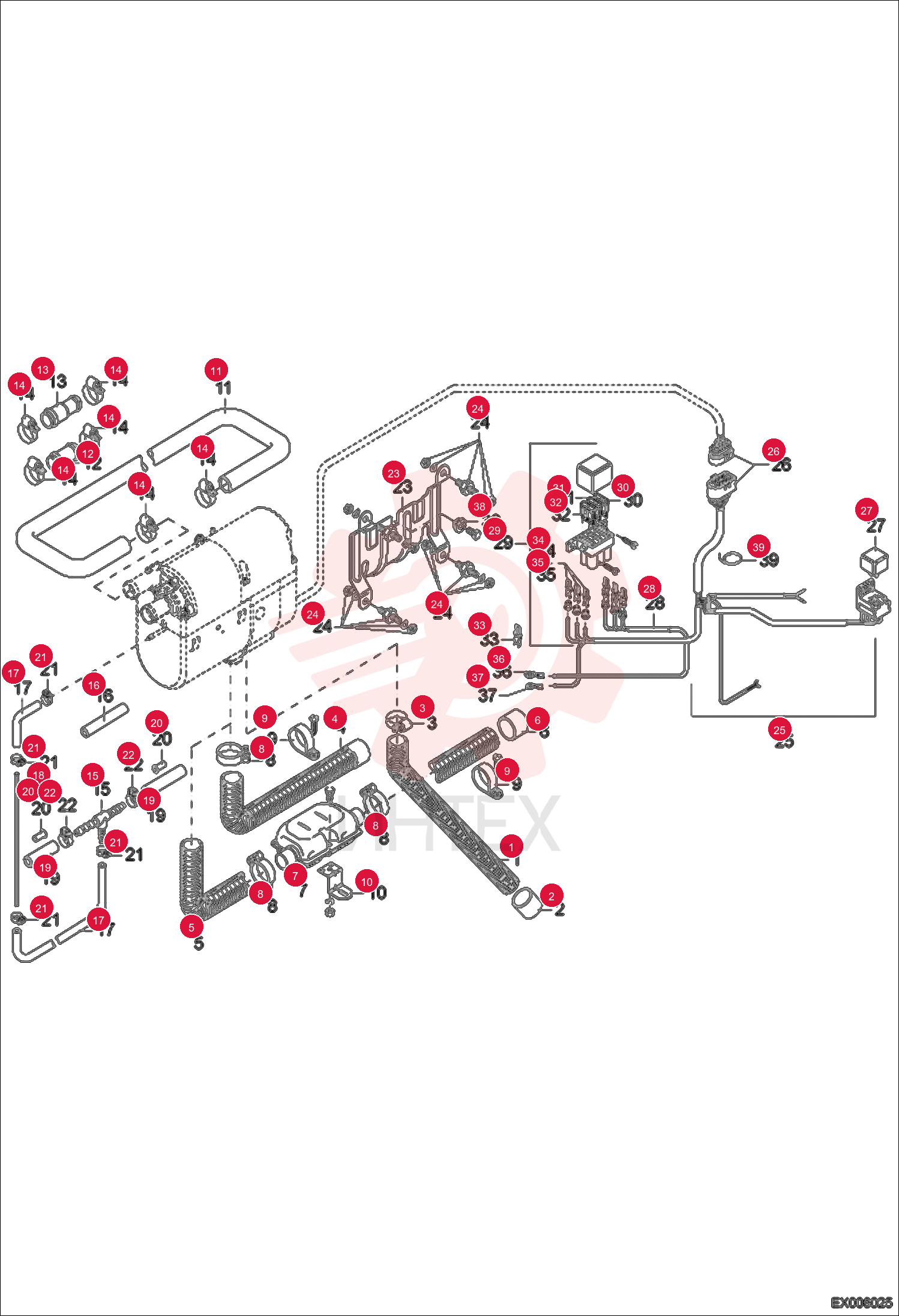

PIPE, FLEXIBLE 5206659983

PIPE, FLEXIBLE 5206659983

PIPE, FLEXIBLE 5206659983

1 5206659983

  • 5206659983 - PIPE
  • FLEXIBLE

2 5206660318

  • 5206660318 - SLEEVE

3 5603320315

  • 5603320315 - CLIP

4 5206660349

  • 5206660349 - HOSE
  • EXHAUST

5 5206660488

  • 5206660488 - PIPE
  • FLEXIBLE

6 5206660360

  • 5206660360 - SLEEVE

7 5206660319

  • 5206660319 - MUFFLER

8 5206660265

  • 5206660265 - PIPE CLIP

9 5206660266

  • 5206660266 - CLIP
  • PIPE

10 5206660366

  • 5206660366 - BRACKET

11 5206660307

  • 5206660307 - HOSE

12 5206660367

  • 5206660367 - CONNECTION

13 5206660317

  • 5206660317 - REDUCTION
  • PIECE

14 5206660295

  • 5206660295 - CLIP
  • HOSE

15 5206660479

  • 5206660479 - CONNECTOR
  • HOSE

16 5206660312

  • 5206660312 - HOSE
  • M5X3

17 5206660480

  • 5206660480 - HOSE
  • M3
  • 5X3

18 5206660481

  • 5206660481 - PIPE

19 5206660309

  • 5206660309 - HOSE
  • FUEL 7
  • 5X2
  • 5

20 5206660353

  • 5206660353 - BUSHING

21 5206660451

  • 5206660451 - HOSE CLIP

22 5206660355

  • 5206660355 - CLIP
  • HOSE

23 5206660313

  • 5206660313 - HOLDER

24 5206660142

  • 5206660142 - BUFFER
  • METAL RUBBER

25 5206660314

  • 5206660314 - WASHER

26 5206660358

  • 5206660358 - HOUSING
  • SOCKET CPL.

27 5206660484

  • 5206660484 - RELAY
  • 12V

28 5206660485

  • 5206660485 - HARNESS
  • WIRE

29 5206660361

  • 5206660361 - FUSE
  • HOLDER CPL.

30 5206660362

  • 5206660362 - FUSE
  • 25A
  • 25A

31 5206660486

  • 5206660486 - FUSE
  • 20A
  • 20A

32 5206660390

  • 5206660390 - FUSE
  • 5A
  • 5A

33 5206660398

  • 5206660398 - CONTACT
  • JPT AMP

34 5206660364

  • 5206660364 - CONTACT
  • JPT AMP

35 5206660365

  • 5206660365 - CONTACT
  • JPT AMP

36 5350249597

  • 5350249597 - CABLE CONNECTOR

37 5350246610

  • 5350246610 - CABLE CONNECTOR

38 5206660483

  • 5206660483 - HARNESS
  • WIRE

39 5206660487

  • 5206660487 - BINDER
